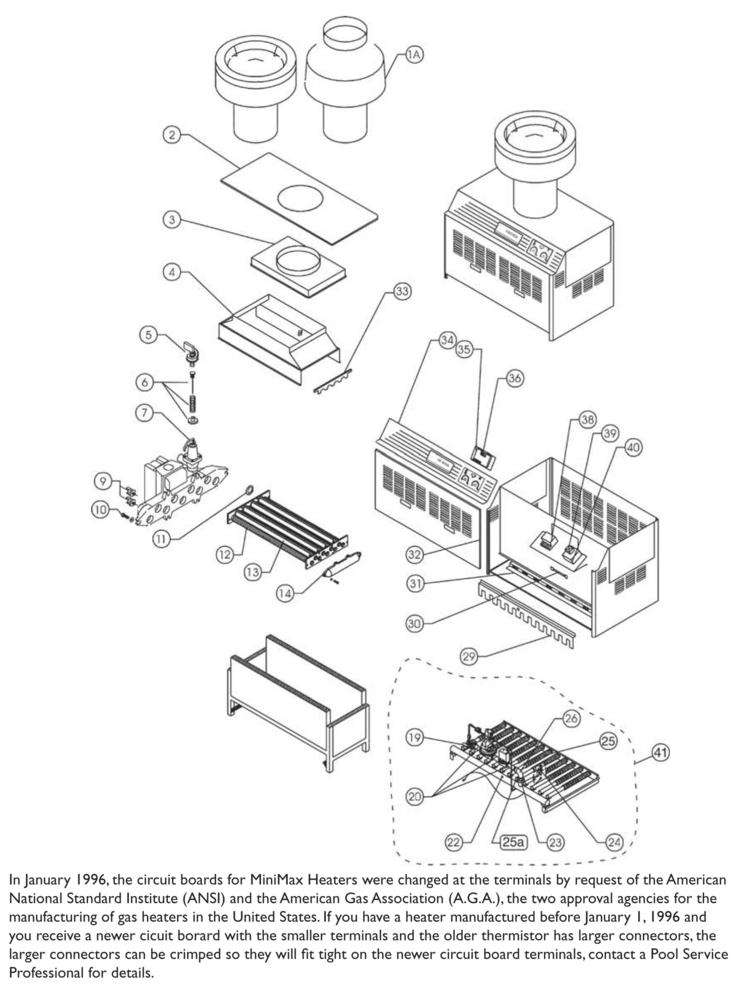

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Pentair

Model Name: MiniMax Series - Model 900



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	470184	Knob, thermostat	Yes	1 Day(s)	$7.38
-	470181	Stem, thermostat control	Yes	1 Day(s)	$3.52
-	470180	Thermistor (probe) complete	Yes	1 Day(s)	$26.39
-	72134	Drain valve	Yes	1 Day(s)	$20.83
1	460319	Outdoor vent cap kit (a)	No	N/A	N/A	N/A
1A	460234	Indoor draft hood kit	Yes	1 Day(s)	$184.94
2	470869	Top cover	No	N/A	N/A	N/A
3	470805	Adaptor w/ring	No	N/A	N/A	N/A
4	470704	Flue collector	No	N/A	N/A	N/A
5	470190	Pressure switch	Yes	1 Day(s)	$70.15
6	471115	Flow valve assembly	Yes	1 Day(s)	$48.39
7	470768	Pressure relief valve	Yes	1 Day(s)	$264.48
9	71017	Hi-limit switch	Yes	1 Day(s)	$26.36
10	470966	Bolts	Yes	1 Day(s)	$15.69
11	470742	Rubber seal	No	N/A	N/A	N/A
12	470737	Heat exchanger assy.	Yes	1 Day(s)	$2688.05
12	470976	Heat exchanger w/o heads	No	N/A	N/A	N/A
13	470647	Baffle	Yes	1 Day(s)	$14.90
14	470745	Return header	Yes	1 Day(s)	$208.68
15	470979	Combustion chamber	Yes	1 Day(s)	$346.34
16	470770	Pilot valve	Yes	1 Day(s)	$188.66
17	470771	Pilot regulator Nat.	Yes	1 Day(s)	$72.79
17	470898	Pilot regulator Pro.	No	N/A	N/A	N/A
18	470772	Pilot manual valve	Yes	1 Day(s)	$32.66
19	470773	Main shut-off valve	Yes	1 Day(s)	$131.71
20	470986	Black steel pipe	No	N/A	N/A	N/A
22	470654	Manifold	No	N/A	N/A	N/A
23	470982	Union 1.5 in., black	No	N/A	N/A	N/A
24	471205	Pilot Q345A2824 Pro.	Yes	1 Day(s)	$68.21
24	471204	Pilot Q345A2816 Nat.	Yes	1 Day(s)	$68.21
25a	471545	Burner w/pilot bracket	Yes	1 Day(s)	$125.82
25	471537	Burner, 12 req.	Yes	1 Day(s)	$69.50
26	470981	Elbow 1 in. x 1 1/2 in.	No	N/A	N/A	N/A
27	471160	Gas valve diaphragm 900 Pro.	No	N/A	N/A	N/A
27	470687	Gas valve diaphragm 900 Nat	Yes	1 Day(s)	$538.79
28	470688	Gas valve solenoid 900	Yes	1 Day(s)	$459.25
29	470794	Retainer shield	Yes	1 Day(s)	$32.10
30	75173	Thermal cut-off	Yes	1 Day(s)	$13.20
31	470724	Base heat shield	No	N/A	N/A	N/A
32	470701	Door	No	N/A	N/A	N/A
33	470799	Baffle hold down	Yes	1 Day(s)	$16.43
34	470755	Control panel	Yes	1 Day(s)	$390.59
35	470179	Thermostat board	Yes	1 Day(s)	$140.10
36	470186	Rocker switch	Yes	1 Day(s)	$7.22
38	73585	Module IID S8600H Pro.	Yes	1 Day(s)	$196.44
38	73584	Module IID S8600F Nat.	Yes	1 Day(s)	$190.21
39	471571	Transformer	Yes	1 Day(s)	$49.34
40	471426	Junction box	Yes	1 Day(s)	$22.62
41	470650	Burner Tray Assy. Nat. 900	Yes	1 Day(s)	$2743.60
41	470670	Burner Tray Assy. Pro. 900	No	N/A	N/A	N/A
