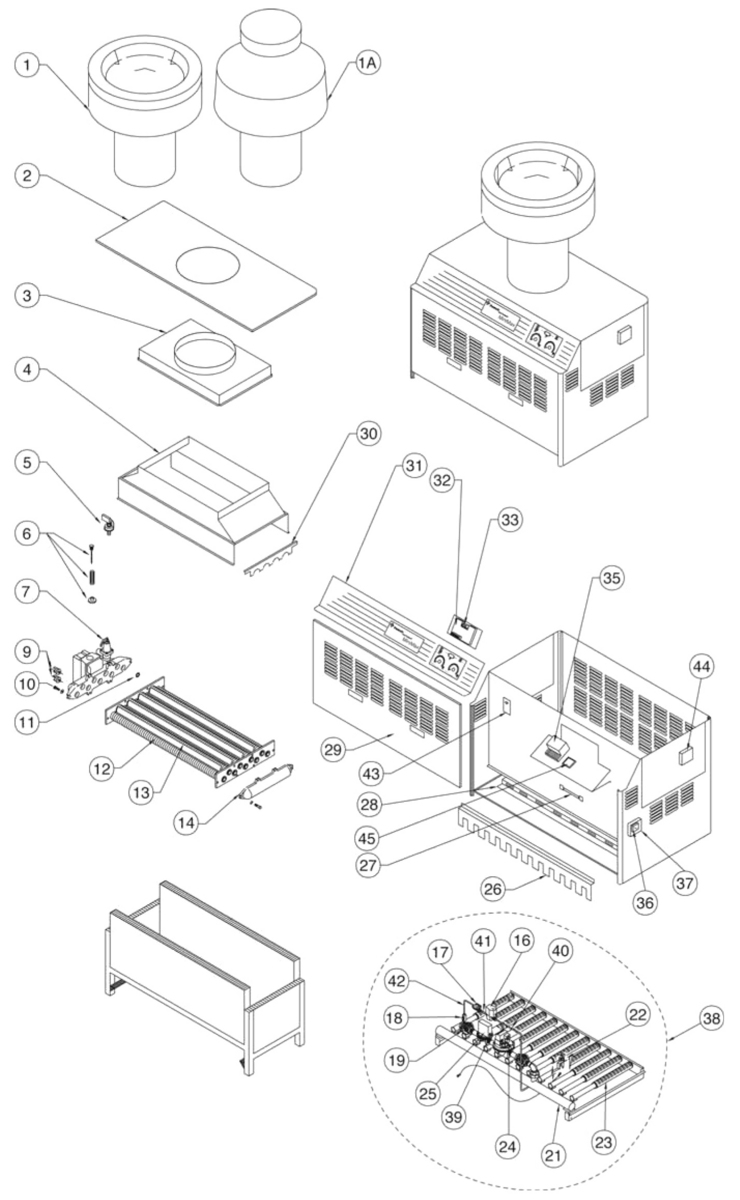

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: Pentair

Model Name: MiniMax w/CSD-I Controls - Model 900



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	460319	Outdoor vent cap kit (a)	No	N/A	N/A	N/A
1A	460324	Indoor Draft Hood Kit (a)	No	N/A	N/A	N/A
2	470869	Top Cover	No	N/A	N/A	N/A
3	470805	Adaptor w/Ring	No	N/A	N/A	N/A
4	470704	Flue Collector	No	N/A	N/A	N/A
5	470190	Pressure Switch	Yes	1 Day(s)	$70.15
6	471115	Flow Valve Assembly	Yes	1 Day(s)	$48.39
7	470768	Pressure Relief Valve	Yes	1 Day(s)	$264.48
9	71017	Hi-Limit Switch	Yes	1 Day(s)	$26.36
10	470966	Bolts	Yes	1 Day(s)	$15.69
11	470742	Rubber Seal	No	N/A	N/A	N/A
12	470737	Heat Exchange Assembly	Yes	1 Day(s)	$2688.05
13	470647	Baffle	Yes	1 Day(s)	$14.90
14	470745	Return Header	Yes	1 Day(s)	$208.68
15	470979	Combustion Chamber	Yes	1 Day(s)	$346.34
16	470770	Pilot Valve	Yes	1 Day(s)	$188.66
17	470771	Pilot Regulator Nat.	Yes	1 Day(s)	$72.79
17	470898	Pilot Regulator Pro.	No	N/A	N/A	N/A
18	470772	Pilot Manual Valve	Yes	1 Day(s)	$32.66
19	470773	Main Shut-off Valve	Yes	1 Day(s)	$131.71
21	470654	Manifold	No	N/A	N/A	N/A
22	471204	Pilot Q3451B1178 Nat.	Yes	1 Day(s)	$68.21
22	471205	Pilot Q3451B1236 Pro.	Yes	1 Day(s)	$68.21
23	471537	Burner (b)	Yes	1 Day(s)	$69.50
23a	471545	Burner w/Pilot Bracket	Yes	1 Day(s)	$125.82
24	470687	Gas Valve Diaphragm Nat.	Yes	1 Day(s)	$538.79
24	471160	Gas Valve Diaphragm Pro.	No	N/A	N/A	N/A
25	470688	Gas Valve Solenoid	Yes	1 Day(s)	$459.25
26	470794	Retainer Shield	Yes	1 Day(s)	$32.10
27	75173	Thermal Cut-off	Yes	1 Day(s)	$13.20
28	470724	Base Heat Shield	No	N/A	N/A	N/A
29	470701	Door	No	N/A	N/A	N/A
30	470799	Baffle Hold Down	Yes	1 Day(s)	$16.43
31	470755	Control Panel	Yes	1 Day(s)	$390.59
32	470179	Thermostat Board	Yes	1 Day(s)	$140.10
33	470186	Rocker Switch	Yes	1 Day(s)	$7.22
35	472339	Module IID S8600F Nat./Pro.	Yes	1 Day(s)	$227.41
36	471571	Transformer	Yes	1 Day(s)	$49.34
37	471426	J-Box	Yes	1 Day(s)	$22.62
38	470670	Burner Tray Assembly Pro.	No	N/A	N/A	N/A
38	470650	Burner Tray Assembly Nat.	Yes	1 Day(s)	$2743.60
39	472336	Male Elbow	No	N/A	N/A	N/A
40	472346	Pilot Valve Aluminum Tube	No	N/A	N/A	N/A
41	472345	Pilot Regulator Tube	No	N/A	N/A	N/A
42	472344	Pilot Manual Valve Tube	No	N/A	N/A	N/A
43	472334	High Limit Control	No	N/A	N/A	N/A
44	472337	Low Water Cut-off	No	N/A	N/A	N/A
45	472338	Lock-Out Control	Yes	1 Day(s)	$162.45
