SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

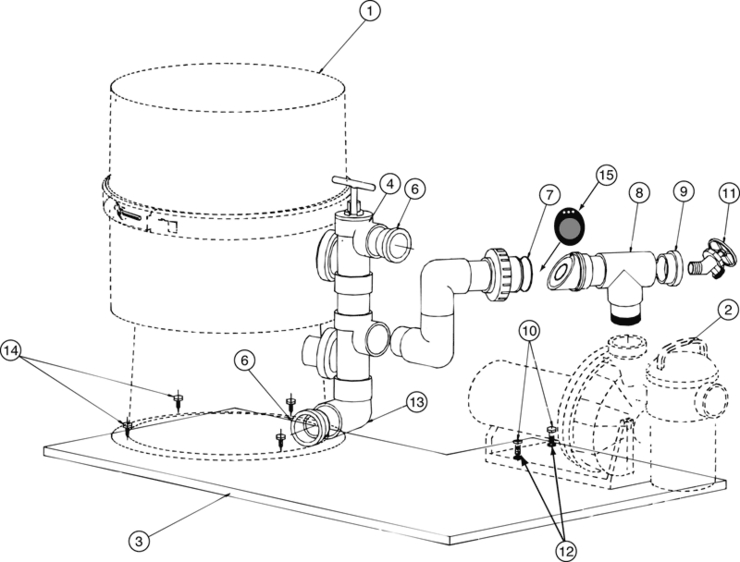

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Pentair
Model Name: Models 181600 Base Kit w/SideValve

Pentair Models-181600-Base-Kit-wSideValve replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

3

 191617 Base with inserts No N/A N/A N/A

4

 261165 Slide valve Yes 1-2 Day(s) $127.70

6

 153073 Reducer 2 in. slip x 1 1/2 in. NPT, 2 req. No N/A N/A N/A

7

 355330 O-ring 1/8 in. x 2-3/8 in. i.d. Yes 1 Day(s) $1.62

8

 274409 Tee piping / check valve assy. No N/A N/A N/A

9

 274541 Reducer 2 in. slip x 3/4 in. NPT Yes 1 Day(s) $6.41

10

 354294 Screw 3/8 in., 2 req. Yes 1 Day(s) $1.53

11

 153075 Hose bib 3/4 in. male Yes 1 Day(s) $15.24

12

 154444 Washer 3/8 in., 2 req. No N/A N/A N/A

13

 192781 ELL 2 in. slip No N/A N/A N/A

14

 192491 Screw - super tek, 4 req. No N/A N/A N/A

15

 272032 Diaphragm, 2 in. valve check Yes 1 Day(s) $13.79
