SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

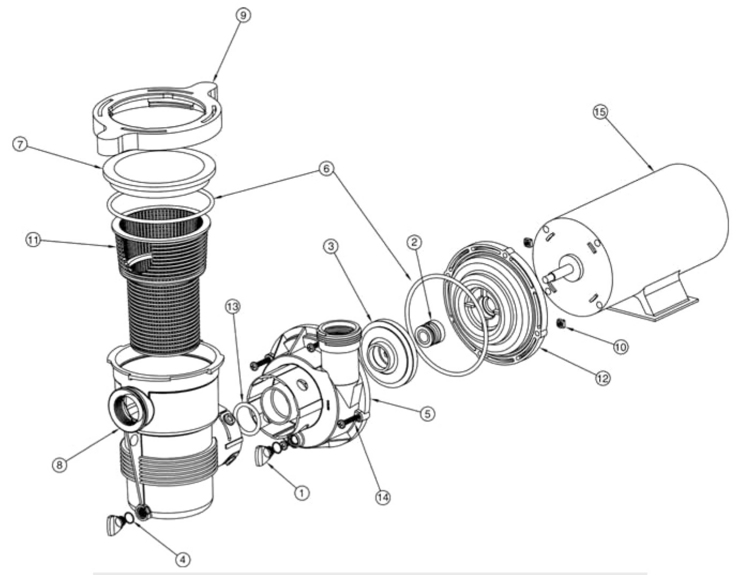

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Pentair
Model Name: Optiflo Pump

Pentair Optiflo-Pump replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 154699 Drain Plug Yes 1 Day(s) $5.60

2

 354545 Mechanical Seal Yes 1 Day(s) $13.05

3

 350017 Impeller, 1 hp Yes 1 Day(s) $34.53

3

 354552 Impeller, 3/4 hp Yes 1 Day(s) $16.86

3

 350018 Impeller, 1 1/2 hp Yes 1 Day(s) $37.70

4

 192115 O-ring Yes 1 Day(s) $1.21

5

 357213 Volute Yes 1 Day(s) $12.10

6

 357255 O-ring 2-357 Yes 1 Day(s) $3.16

7

 357227 Lid Yes 1 Day(s) $6.82

8

 357228 Pot Yes 1 Day(s) $15.95

9

 357239 Clamp ring Yes 1 Day(s) $8.26

10

 357254 1/4-20 square nut Yes 1 Day(s) $0.81

11

 355667 Basket Yes 1 Day(s) $12.82

12

 357215 Seal plate Yes 1 Day(s) $19.52

13

 191517 O-ring 2-130 Yes 1 Day(s) $0.93

14

 98209000 1/4-20 x 1.5 machine screw Yes 1 Day(s) $1.15
