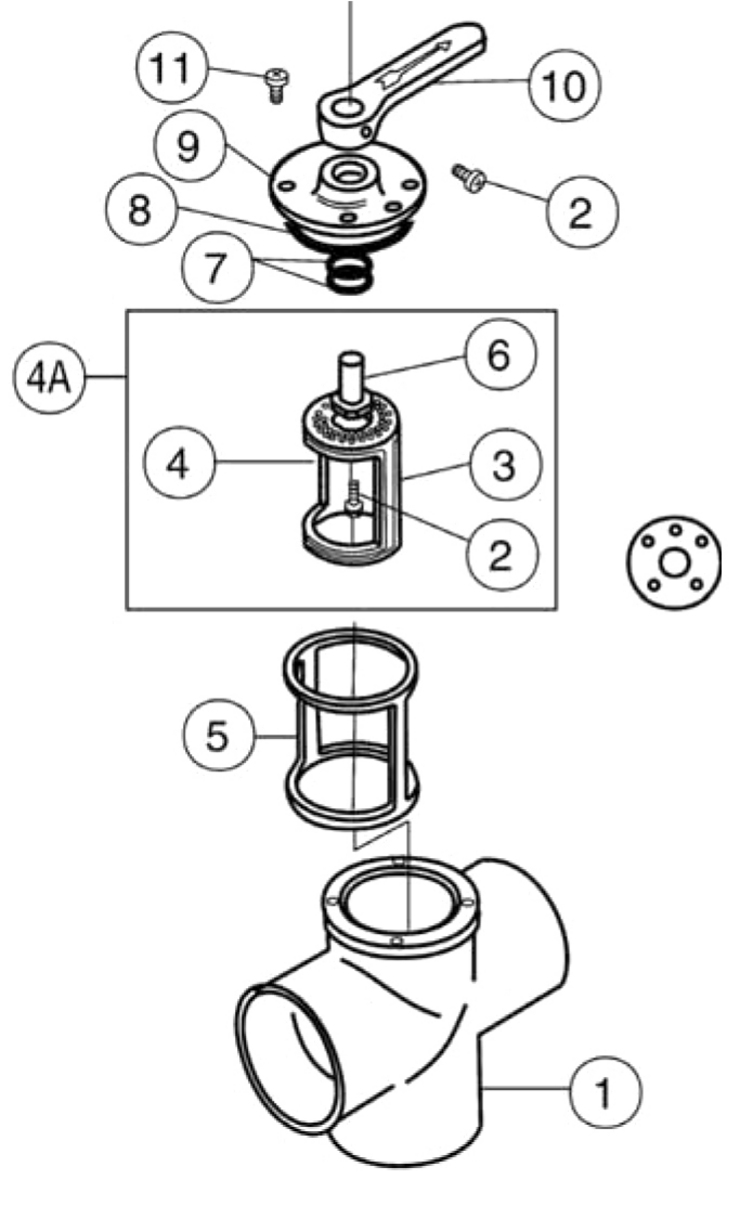

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Pentair

Model Name: Ortega 3-Port CPVC Valves



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
2	72540	Screw 8-32 x 3/8 in. s/s machine	Yes	1 Day(s)	$5.44
3	73481	Diverter 1.5 in. Noryl w/seal, w/o shaft	No	N/A	N/A	N/A
3	73484	Diverter 2- Noryl w/seal, w/o shaft	No	N/A	N/A	N/A
4A	263032	Diverter 1.5 in. Noryl	Yes	1 Day(s)	$34.72
4A	263033	Diverter 2 in. Noryl	Yes	1 Day(s)	$36.48
4	73491	Diverter 2- Noryl w/o seal, w/o shaft	Yes	1 Day(s)	$16.14
4	72396	Diverter 1.5 in. Noryl w/o seal, w/o shaft	Yes	1 Day(s)	$11.90
5	72432	Seal diverter permalok 1.5	Yes	1 Day(s)	$13.84
5	72431	Seal diverter permalok 2 in.	No	N/A	N/A	N/A
6	72427	Shaft for Noryl diverter	Yes	1 Day(s)	$9.21
7	72555	O-ring shaft 2-112 Nitrile	Yes	1 Day(s)	$5.44
8	72554	O-ring cover in. 2 in.	Yes	1 Day(s)	$5.44
8	72553	O-ring cover 1.5 in.	No	N/A	N/A	N/A
9	72414	Cover 2 in. Noryl valve	No	N/A	N/A	N/A
9	72420	Cover 1.5 in. Noryl valve	No	N/A	N/A	N/A
10	72392	Handle Lexan	Yes	1 Day(s)	$9.21
11	72536	Screw 8 x 5/8 in. Hi-lo	Yes	1 Day(s)	$5.44
