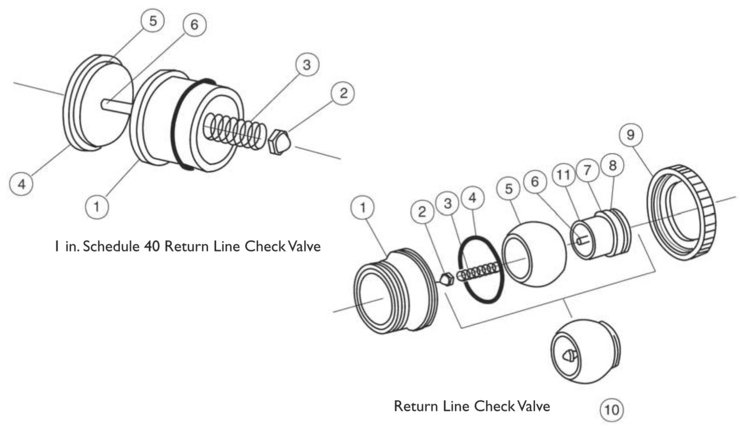

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Pentair

Model Name: Ortega Return Line Check Valve



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	72472	Housing 1 in. spa return Loc	No	N/A	N/A	N/A
1	72501	Housing eyeball MPT	Yes	1 Day(s)	$8.74
2	72543	Nut-brass cap 8-32	Yes	1 Day(s)	$0.95
2	72543	Nut-brass cap 8-32	Yes	1 Day(s)	$0.95
3	72474	Spring s/s equalizer/eyeball	Yes	1 Day(s)	$5.44
3	72474	Spring s/s equalizer/eyeball	Yes	1 Day(s)	$5.44
4	72471	Washer 1 in., white	Yes	1 Day(s)	$5.80
4	72556	Seal eyeball	No	N/A	N/A	N/A
5	72502	Ball PVC	Yes	1 Day(s)	$8.74
5	72504	Pad-rubber 1-1/8 x 1/8 x 1/16 in.	Yes	1 Day(s)	$0.90
6	72473	Pin-spring	Yes	1 Day(s)	$3.84
6	72473	Pin-spring	Yes	1 Day(s)	$3.84
7	72504	Pad rubber 1-1/8 x 1/8 x 1/16 in.	Yes	1 Day(s)	$0.90
8	72471	Washer 1 in., white	Yes	1 Day(s)	$5.80
9	72503	Screw cover eyeball	Yes	1 Day(s)	N/A	N/A
10	73508	Eyeball assy, includes items #2 thru 8 & 11	Yes	1 Day(s)	$24.65
11	72472	Housing 1 in. spa return Loc	No	N/A	N/A	N/A
