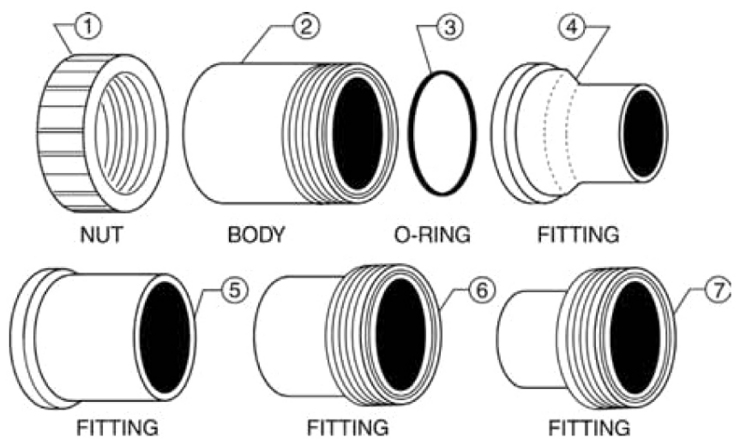

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Pentair

Model Name: Pentair Unions



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	51013011	Nut, black	Yes	1 Day(s)	$15.37
1	51013011	Nut, black	Yes	1 Day(s)	$15.37
2	87201911	Fitting, 2 in. slip ABS	Yes	1 Day(s)	$14.11
2	87201911	Fitting, 2 in. slip ABS	Yes	1 Day(s)	$14.11
3	51013500	O-ring	Yes	1 Day(s)	$6.30
3	51013500	O-ring	Yes	1 Day(s)	$6.30
4	87202411	Body male, 1 1/2 in., ABS	Yes	1 Day(s)	$15.95
4	87202411	Body male, 1 1/2 in., ABS	Yes	1 Day(s)	$15.95
5	87202211	Body, 1 1/2 in. slip x 2 in. male ABS	Yes	1 Day(s)	$13.11
5	87202211	Body, 1 1/2 in. slip x 2 in. male ABS	Yes	1 Day(s)	$13.11
6	87202011	Fitting, female 1 1/2 in. slip x 2 in. male ABS	No	N/A	N/A	N/A
6	87202011	Fitting, female 1 1/2 in. slip x 2 in. male ABS	No	N/A	N/A	N/A
7	87202100	Fitting male, 1 1/2 in., ABS	Yes	1 Day(s)	$11.35
7	87202100	Fitting male, 1 1/2 in., ABS	Yes	1 Day(s)	$11.35
