SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

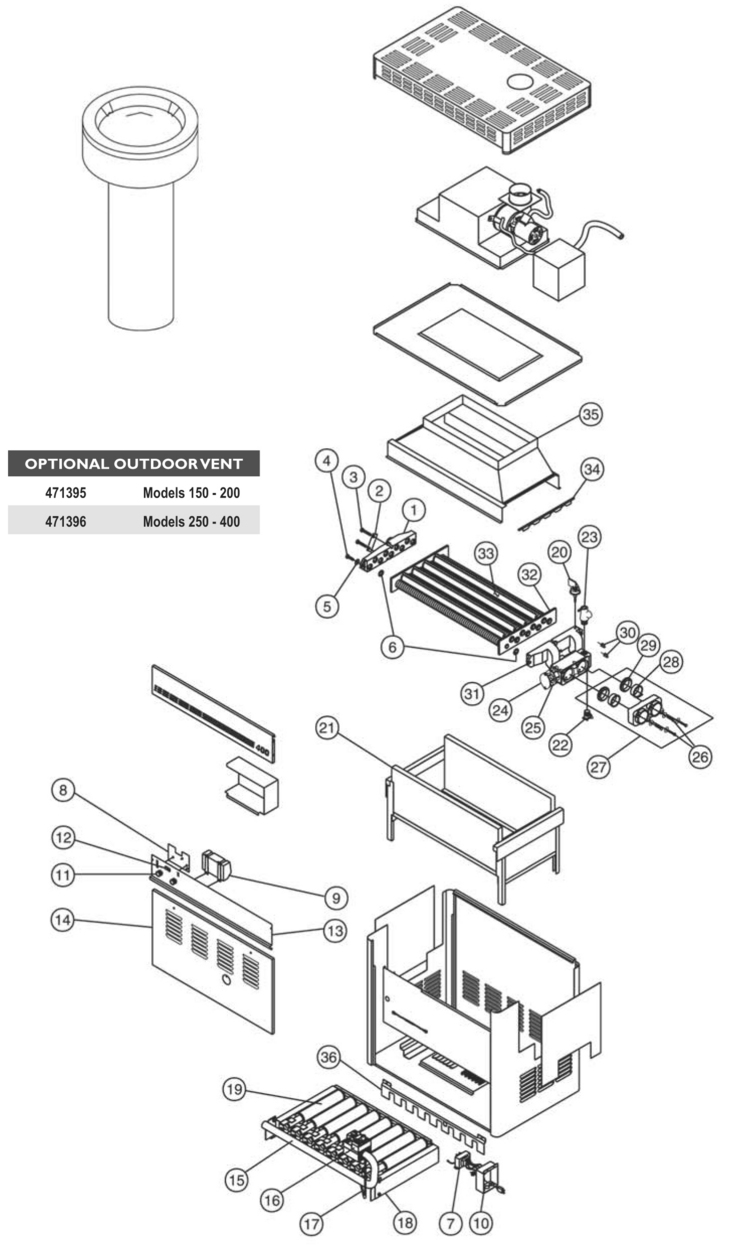

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Pentair
Model Name: PowerMax Series - Model 900

Pentair PowerMax-Series-Model-900 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 470180 Thermistor (probe) complete Yes 1 Day(s) $26.39

-

 470181 Stem, thermostat control Yes 1 Day(s) $3.52

-

 470184 Knob, thermostat Yes 1 Day(s) $7.38

1

 471310 Top cover No N/A N/A N/A

3

 470190 Pressure switch Yes 1 Day(s) $70.15

4

 471115 Flow Valve assembly Yes 1 Day(s) $48.39

5

 470768 Pressure relief valve Yes 1 Day(s) $264.48

7a

 71017 Hi-limit switch, 150° shut-off Yes 1 Day(s) $26.36

7b

 471175 Hi-limit switch, 135° shut-off Yes 1 Day(s) $41.76

8

 470966 Bolts Yes 1 Day(s) $15.69

9

 470742 Rubber seal No N/A N/A N/A

10

 470979 Combustion chamber Yes 1 Day(s) $346.34

11

 470737 Heat exchanger Yes 1 Day(s) $2688.05

12

 470647 Baffle Yes 1 Day(s) $14.90

13

 470745 Return header Yes 1 Day(s) $208.68

14

 470772 Pilot manual valve Yes 1 Day(s) $32.66

15

 470773 Main shut-off valve Yes 1 Day(s) $131.71

16

 470986 Black steel pipes No N/A N/A N/A

17

 470654 Manifold No N/A N/A N/A

18

 470982 Union 1.5 in., black No N/A N/A N/A

19

 471205 Pilot Q3451B1236 Pro. Yes 1 Day(s) $68.21

19

 471204 Pilot Q3451B1178 Nat. Yes 1 Day(s) $68.21

20

 470771 Pilot regulator Yes 1 Day(s) $72.79

21

 470770 Pilot valve Yes 1 Day(s) $188.66

22

 470688 Gas valve solenoid 900 Yes 1 Day(s) $459.25

23

 470687 Gas valve diaphragm 900 Nat. Yes 1 Day(s) $538.79

23

 471160 Gas valve diaphragm 900 Pro. No N/A N/A N/A

24

 470981 Elbow 1 in. x 1 1/2 in. No N/A N/A N/A

25

 471537 Burner alternate comm Yes 1 Day(s) $69.50

26

 75173 Thermal cut-off Yes 1 Day(s) $13.20

27

 470724 Base heat shield No N/A N/A N/A

28

 470794 Retainer shield Yes 1 Day(s) $32.10

29

 471426 Junction box Yes 1 Day(s) $22.62

30

 471571 Transformer Yes 1 Day(s) $49.34

31

 73584 Module IID S8600F Nat. Yes 1 Day(s) $190.21

31

 73585 Module IID S8600H Pro. Yes 1 Day(s) $196.44

33

 470186 Rocker switch Yes 1 Day(s) $7.22

34

 470179 Thermostat board Yes 1 Day(s) $140.10

35

 470755 Control panel Yes 1 Day(s) $390.59

36

 470701 Door No N/A N/A N/A

38

 471314 Blower Yes 1 Day(s) $753.11

39

 471428 Air pressure switch Yes 1 Day(s) $43.88

40

 470331 Blower control box Yes 1 Day(s) $32.57

41

 470010 Relay Yes 1 Day(s) $31.83

42

 470337 Cover blower control box No N/A N/A N/A

44

 470799 Baffles hold down Yes 1 Day(s) $16.43

45

 470670 Burner Tray Assy. Pro. No N/A N/A N/A

45

 470650 Burner Tray Assy. Nat. Yes 1 Day(s) $2743.60
