SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

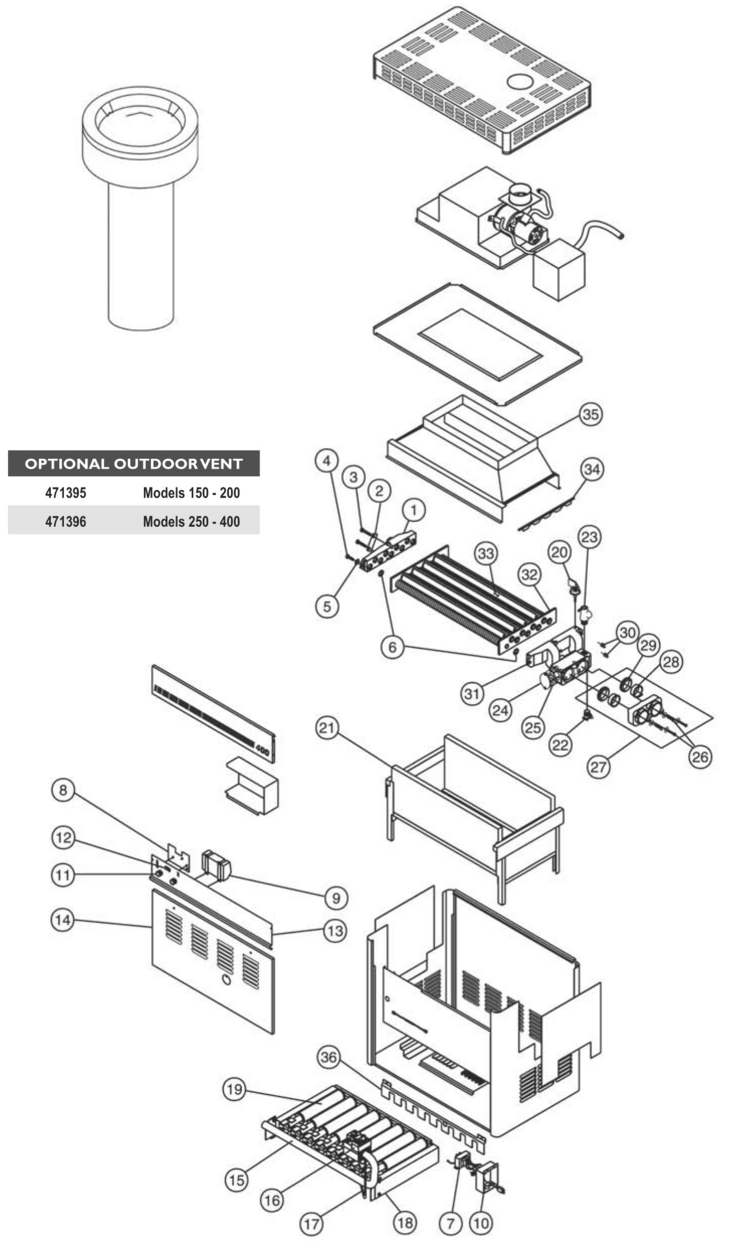

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: Pentair
Model Name: PowerMax Series

Pentair PowerMax-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

071659 Screw 1 0-32 x 1/4 in. No N/A N/A N/A

073725 Bolt 5/16- 18 x 3/4 in. No N/A N/A N/A

073727 Orifice main burner natural No N/A N/A N/A

073728 Orifice main burner propane No N/A N/A N/A

070273 Potentiometer (TSTAT) IID (i) No N/A N/A N/A

074202 Indicator board LED lightstrip (i) No N/A N/A N/A

470180 Thermistor (probe) complete (IID Models) Yes 1 Day(s) $26.39

075173 Thermal cut-off No N/A N/A N/A

471205 Pilot -Pro. -IID Yes 1 Day(s) $68.21

470178 Power element (flow-valve) Yes 1 Day(s) $34.53

470414 Therm. knob stopper Yes 1 Day(s) $4.81

070551 Bushing 1/2 in. No N/A N/A N/A

470181 Stem, thermostat control (IID models) Yes 1 Day(s) $3.52

070715 Plastic mounting bracket No N/A N/A N/A

470965 Wire kit -harness IID (complete) Yes 1 Day(s) $70.74

071703 Screw 8 x 1/4 in. hh. No N/A N/A N/A

071698 Screw 8 x 1/2 in. hh. No N/A N/A N/A

071716 Screw 6 x 1/4 in. No N/A N/A N/A

075692 Screw 10-32 x 3/16 No N/A N/A N/A

471204 Pilot -Nat. -IID Yes 1 Day(s) $68.21

1

 070994 Return header No N/A N/A N/A

2

 074216 Bracket washer No N/A N/A N/A

3

 073739 Bolt hh. 3/8 in. x 2 in. No N/A N/A N/A

4

 070416 Bolt 3/8 -16 x 1 1/2 in. No N/A N/A N/A

5

 072180 Washer 3/8 in. i.d. 1 in. o.d. No N/A N/A N/A

6

 070951 Tube seal gasket No N/A N/A N/A

7

 471360 Transformer w/circuit, breaker-dual voltage No N/A $46.95

8

 470179 Electronic Thermostat circuit board - IID models Yes 1 Day(s) $140.10

9

 073584 Module Natural gas No N/A N/A N/A

9

 073585 Module propane gas No N/A N/A N/A

10

 470122 Junction box (110 units) No N/A $23.98

11

 470184 Thermostat knob Yes 1 Day(s) $7.38

12

 470186 Switch rocker (sngl. pole & dbl. throw) Yes 1 Day(s) $7.22

13

 470393 Control Panel - Natural - IID No N/A N/A N/A

13

 470392 Control Panel - Natural - IID No N/A N/A N/A

13

 470391 Control Panel - Natural - IID No N/A N/A N/A

13

 470390 Control Panel - Natural - IID No N/A N/A N/A

13

 470389 Control Panel - Natural - IID No N/A N/A N/A

13

 470388 Control Panel - Natural - IID No N/A N/A N/A

14

 075490 Control Panel - Door -IID No N/A N/A N/A

14

 075605 Control Panel - Door -IID No N/A N/A N/A

14

 075468 Control Panel - Door -IID No N/A N/A N/A

14

 075488 Control Panel - Door -IID No N/A N/A N/A

14

 075604 Control Panel - Door -IID No N/A N/A N/A

14

 075606 Control Panel - Door -IID No N/A N/A N/A

15

 075525 Manifold burner No N/A N/A N/A

15

 070256 Manifold burner No N/A N/A N/A

15

 070257 Manifold burner No N/A N/A N/A

15

 075527 Manifold burner No N/A N/A N/A

15

 070258 Manifold burner No N/A N/A N/A

15

 075526 Manifold burner No N/A N/A N/A

16

 073999 Gas valve propane - IID No N/A N/A N/A

16

 073998 Gas valve natural - IID No N/A N/A N/A

17

 075191 Pilot tube - IID No N/A N/A N/A

17

 075192 Pilot tube - IID No N/A N/A N/A

17

 075193 Pilot tube - IID No N/A N/A N/A

18

 075499 Burner Tray - Natural - IID No N/A N/A N/A

18

 073751 Burner Tray - Natural - IID No N/A N/A N/A

18

 073752 Burner Tray - Natural - IID No N/A N/A N/A

18

 073904 Burner Tray - Propane - IID No N/A N/A N/A

18

 075510 Burner Tray - Propane - IID No N/A N/A N/A

18

 073905 Burner Tray - Propane - IID No N/A N/A N/A

18

 075509 Burner Tray - Propane - IID No N/A N/A N/A

18

 075508 Burner Tray - Propane - IID No N/A N/A N/A

18

 073906 Burner Tray - Propane - IID No N/A N/A N/A

18

 073750 Burner Tray - Natural - IID No N/A N/A N/A

18

 075501 Burner Tray - Natural - IID No N/A N/A N/A

18

 075500 Burner Tray - Natural - IID No N/A N/A N/A

19

 070230 Burner No N/A N/A N/A

19a

 470550 Burner w/ pilot bracket Yes 1 Day(s) $74.65

20

 470190 Pressure switch Yes 1 Day(s) $70.15

21

 073856 Combustion Chamber Assy. No N/A N/A N/A

21

 075588 Combustion Chamber Assy. No N/A N/A N/A

21

 075587 Combustion Chamber Assy. No N/A N/A N/A

21

 073857 Combustion Chamber Assy. No N/A N/A N/A

21

 075586 Combustion Chamber Assy. No N/A N/A N/A

21

 073858 Combustion Chamber Assy. No N/A N/A N/A

22

 072134 Valve drain 3/4 in. No N/A N/A N/A

23

 072138 Valve relief 3/4 in. 50# (g) No N/A N/A N/A

24

 073989 Flow valve assy. ASME (complete) No N/A N/A N/A

24

 471424 Flow valve assy. standard (complete) Yes 1 Day(s) $88.37

25

 074015 Flow valve gasket No N/A N/A N/A

26

 075492 Bolt 3/8 - 16 x 2 1/2 No N/A N/A N/A

27

 075284 Quick flange kit No N/A N/A N/A

28

 070544 Bushing in/out Lexan No N/A N/A N/A

29

 071895 Sleeve, rubber in/out 2 in. No N/A N/A N/A

30

 071017 Safety shut-off No N/A N/A N/A

31

 070985 Main header (in/out) No N/A N/A N/A

32

 074074 Heat exchanger w/o heads No N/A N/A N/A

32

 075630 Heat exchanger w/o heads No N/A N/A N/A

32

 075629 Heat exchanger w/o heads No N/A N/A N/A

32

 074451 Heat exchanger w/o heads No N/A N/A N/A

32

 470369 Heat exchanger Yes 1 Day(s) $1658.88

32

 075628 Heat exchanger w/o heads No N/A N/A N/A

32

 074452 Heat exchanger w/o heads No N/A N/A N/A

32

 470364 Heat exchanger Yes 1 Day(s) $1350.91

32

 470365 Heat exchanger Yes 1 Day(s) $1414.36

32

 470366 Heat exchanger Yes 1 Day(s) $1470.45

32

 470367 Heat exchanger Yes 1 Day(s) $1541.64

32

 470368 Heat exchanger Yes 1 Day(s) $1513.50
