SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

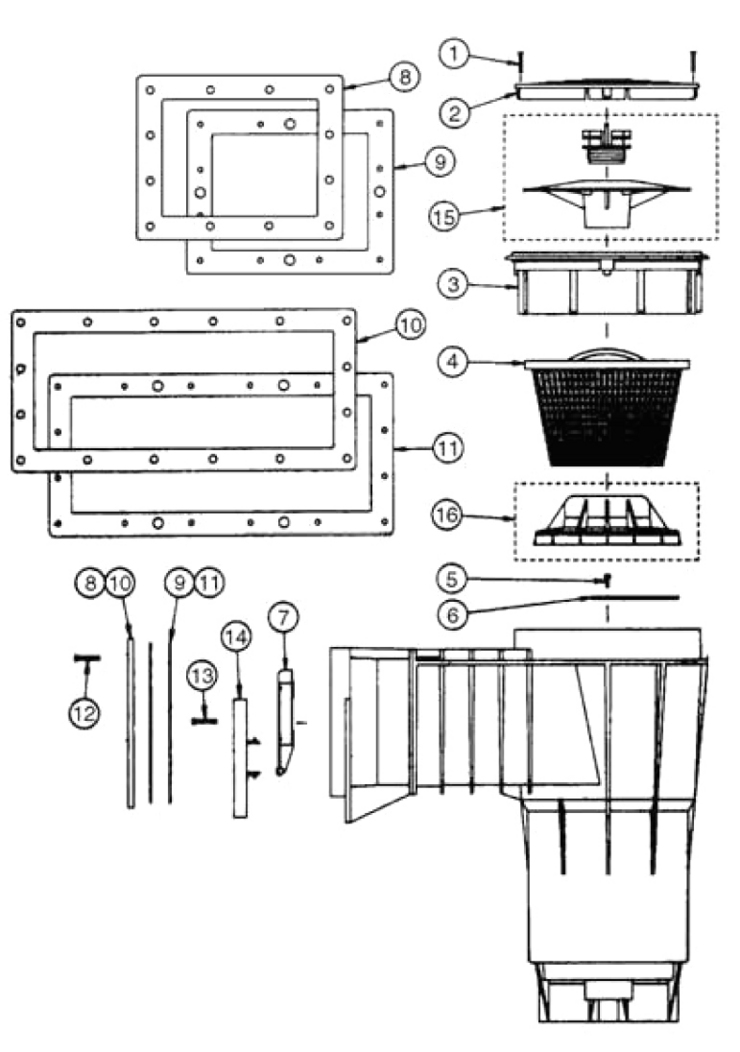

Here is the schematic view you requested:

Category: Skimmers
Manufacturer name: Pentair
Model Name: Replacement Parts for Bermuda Skimmer Vinyl Liner

Pentair Replacement-Parts-for-Bermuda-Skimmer-Vi replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 516261 Lid / collar set, tan Yes 1 Day(s) $45.82

-

 516328 Lid / collar set, black Yes 1 Day(s) $45.82

-

 516254 Lid / collar set, white Yes 1 Day(s) $45.82

1

 516242 Screw, #8-32 x 1 in. s/s, 2 req. Yes 1 Day(s) $0.77

2

 516216 Deck lid, tan Yes 1 Day(s) $14.94

2

 516215 Deck lid, white Yes 1 Day(s) $14.94

2

 516306 Deck lid, black Yes 1 Day(s) $14.94

3

 516259 Deck collar, vinyl, white Yes 1 Day(s) $16.50

3

 516260 Deck collar, vinyl, tan Yes 1 Day(s) $17.67

3

 516307 Deck collar, vinyl, black Yes 1 Day(s) $19.93

4

 516112 Basket Yes 1 Day(s) $16.23

5

 516243 Screw, #8 x 1/2 in. s/s Yes 1 Day(s) $0.16

6

 516228 Trimmer plate Yes 1 Day(s) $3.09

7

 516315 Weir gate assy., black Yes 1 Day(s) $13.66

7

 516252 Weir gate assy., white Yes 1 Day(s) $12.23

8

 552518 Face plate, standard throat, white No N/A N/A N/A

8

 552528 Face plate, standard throat, black No N/A N/A N/A

9

 552566 Gasket, standard throat, 2 req. Yes 1 Day(s) $4.09

10

 516229 Face plate, widemouth throat, white No N/A N/A N/A

11

 516231 Gasket, widemouth throat, 2 req. Yes 1 Day(s) $6.37

12

 516345 Screw, #12-8 x 1 1/4 in. s/s, std. face plate, No N/A N/A N/A

12

 516239 Screw, #12-8 x 1 in. s/s, std. face plate, Yes 1 Day(s) $0.77

13

 516241 Screw, #12-8 x 1 1/4 in. s/s, 4 req. Yes 1 Day(s) $3.09

14

 516237 Flange spacer, 3 req. Yes 1 Day(s) $3.09

15

 506161 Vacuum plate assy. Yes 1 Day(s) $12.19

16

 506160 Float valve assy. Yes 1 Day(s) $35.19

16

 195829 2 in. O-ring style plug Yes 1 Day(s) $7.08

16

 191474 1.5 in. O-ring for 191368 plug Yes 1 Day(s) $1.12

16

 506162 Equalizer valve assy. Yes 1 Day(s) $27.09

16

 192323 2 in. O-ring for 195829 plug Yes 1 Day(s) $6.17
