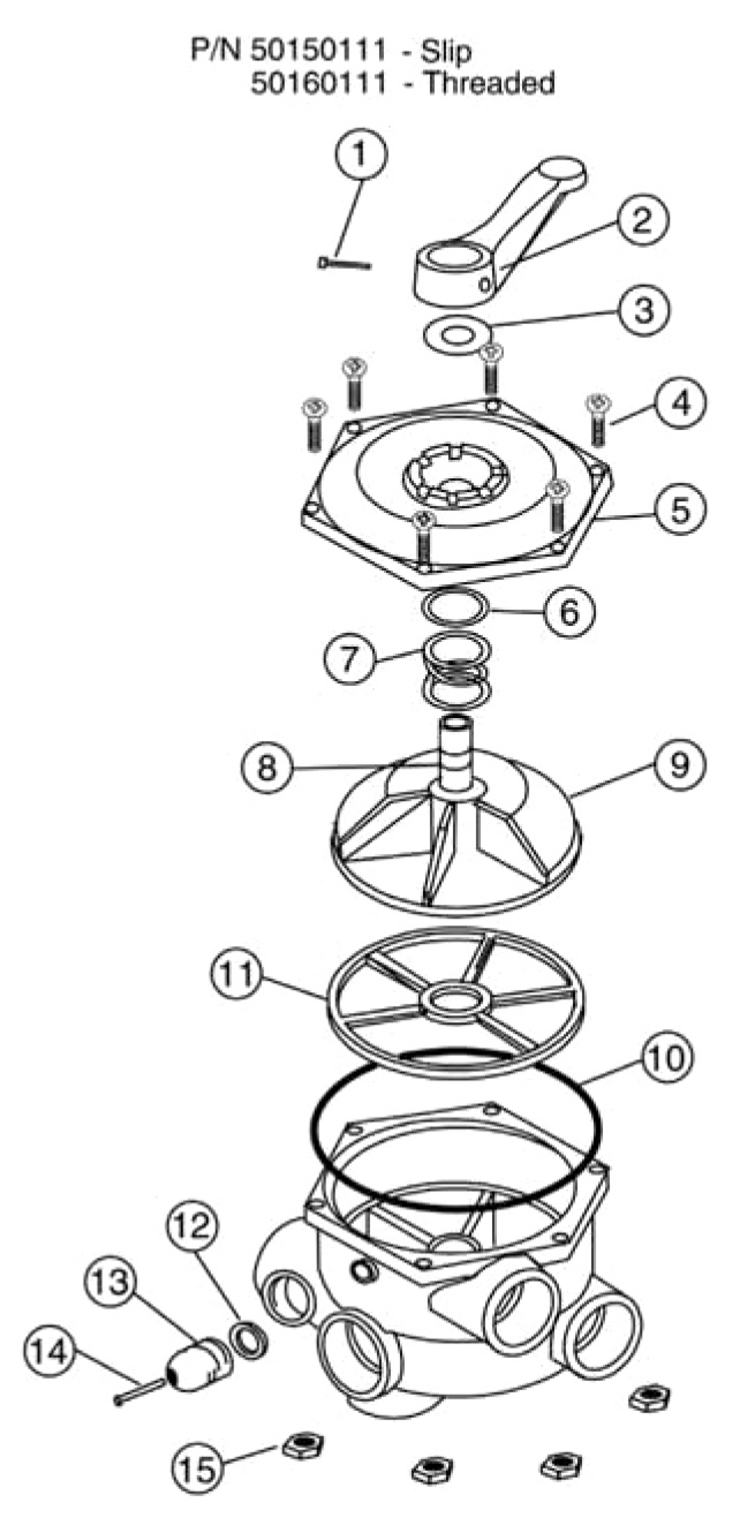

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Pentair

Model Name: Side Mount Multiport Valves, 1 1/2



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	51002011	Plug, 1 1/2 in. ABS slip	Yes	1 Day(s)	$3.97
-	51001911	Plug, 1 1/2 in. thrd.	Yes	1 Day(s)	$3.97
-	51000111	Top assy. w/ lid, handle, rotor, 1 1/2 in.	Yes	1 Day(s)	$104.40
1	98201900	Screw, handle 10-24 x 1 1/4 in.	Yes	1 Day(s)	$1.22
2	51002700	Handle	Yes	1 Day(s)	$12.64
3	51008800	Washer	Yes	1 Day(s)	$3.97
4	98209000	Screw, pan head, 1/4-20 x 1 1/2 in.	Yes	1 Day(s)	$1.15
5	51000511	Lid, multiport valve w/ label 1 1/2 in. (a)	Yes	1 Day(s)	$32.71
6	51021600	Thrust washer	Yes	1 Day(s)	$3.95
7	51000700	Spring	Yes	1 Day(s)	$6.84
8	51001200	O-ring, shaft	No	N/A	N/A	N/A
9	51001100	Rotor	Yes	1 Day(s)	$26.48
10	51001000	Quad ring, lid	Yes	1 Day(s)	$9.48
11	51008400	Spider Gasket (b)	Yes	1 Day(s)	$14.38
12	51001800	Gaskets, sight glass sets	Yes	1 Day(s)	$6.52
13	51001600	Sight glass	Yes	1 Day(s)	$5.35
14	98205000	Screw, sight glass 8-32 x 1 3/4 in.	Yes	1 Day(s)	$0.93
15	98211400	Nut, 1/4-20	Yes	1 Day(s)	$2.75
