SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

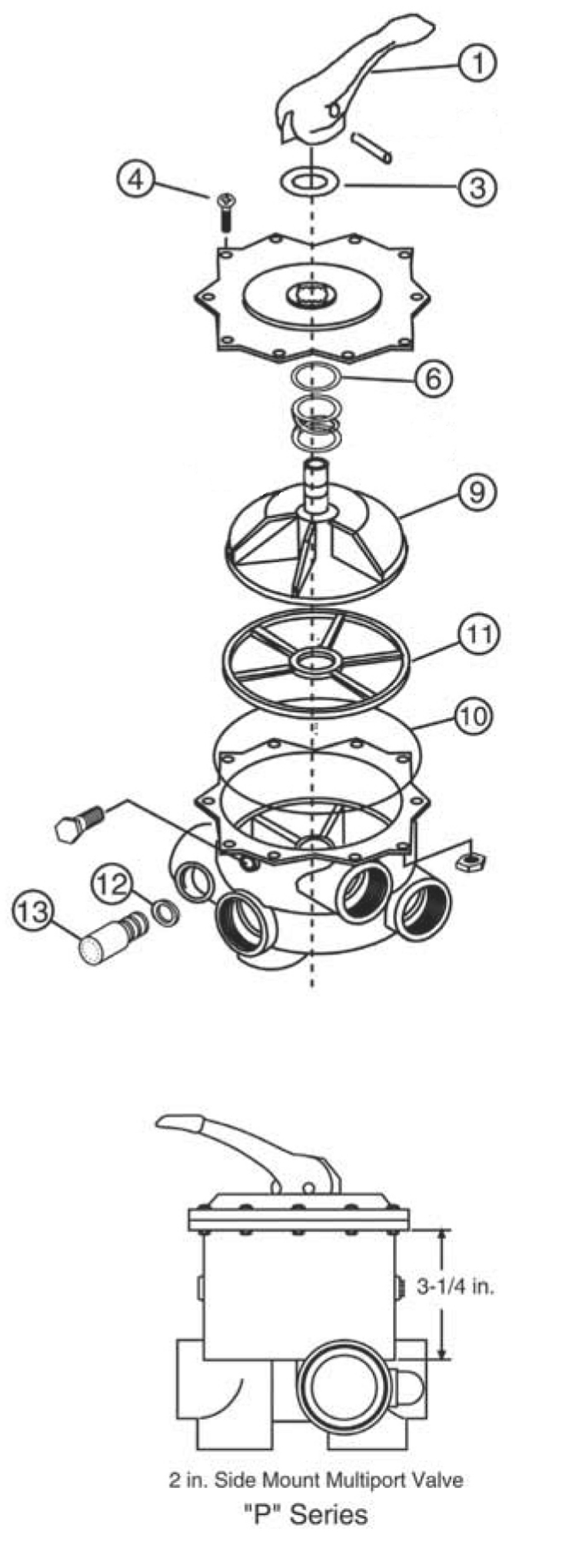

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Pentair
Model Name: Side Mount Multiport Valves, 2

Pentair Side-Mount-Multiport-Valves-2 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 44218011 Plug 2 in. thread PVC, slip No N/A N/A N/A

-

 86002611 Plug 2 in. thread PVC, thrd. No N/A N/A N/A

1

 271156 Handle Yes 1 Day(s) $18.51

2

 51025900 Pin, handle No N/A N/A N/A

3

 271160 Washer Yes 1 Day(s) $5.46

4

 98209000 Screw 1/4-20 x 1-1/2 in. s/s Yes 1 Day(s) $1.15

6

 271160 Washer Yes 1 Day(s) $5.46

7

 51002500 Spring No 1 Day(s) $27.95

8

 98220700 O-ring, shaft, No N/A N/A N/A

9

 98222600 Rotor, 6 3/4 in. dia. No N/A N/A N/A

10

 271151 O-ring Yes 1 Day(s) $10.81

11

 271148 Gasket Yes 1 Day(s) $21.40

12

 98221400 Gasket, sight glass No N/A N/A N/A

13

 98221300 Sight glass No N/A N/A N/A
