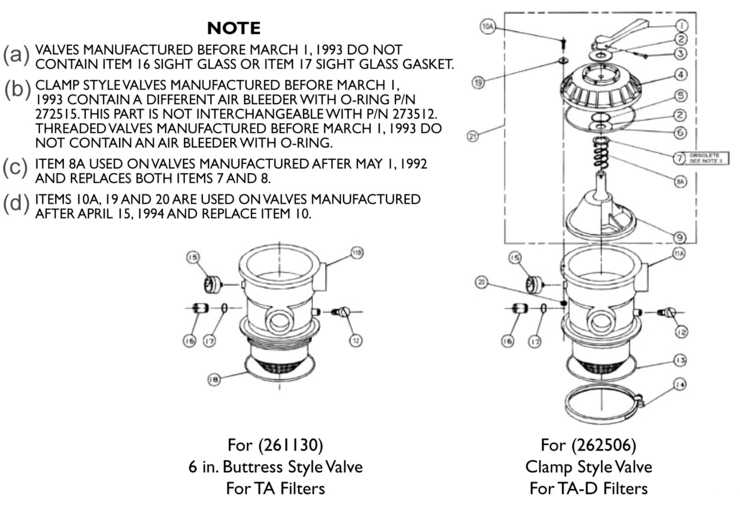

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Pentair

Model Name: SixWay 1 1/2 HiFlow Valves



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	272520	Handle	Yes	1 Day(s)	$13.99
2	272505	Washer plastic	Yes	1 Day(s)	$1.58
3	272405	Screw - handle	Yes	1 Day(s)	$0.93
4	272527	Valve top - black	No	N/A	N/A	N/A
5	272511	O-ring - diverter shaft	Yes	1 Day(s)	$0.90
6	354053	O-ring - valve top	Yes	1 Day(s)	$15.51
7	272401	Washer - s/s #	Yes	1 Day(s)	$1.33
8A	272535	Spring - comp. 100 Ib. 1 3/8 o.d. (c)	Yes	1 Day(s)	$2.80
8	272400	Spring - comp. 100 Ib. 1 13/16 o.d. (c)	Yes	1 Day(s)	$5.26
9	272512	Diverter w/gasket	Yes	1 Day(s)	$30.02
10	634598	Screw 12 x 1 self tapping	No	N/A	N/A	N/A
10A	354541	Screw #10-24 hex pan head (d)	Yes	1 Day(s)	$1.22
11B	272538	Valve body w/diffuser - threaded	Yes	1 Day(s)	N/A	N/A
11A	272530	Valve body w/diffuser - clamp style	No	N/A	N/A	N/A
12	273512	Air bleeder w/o ring (b)	Yes	1 Day(s)	$6.52
13	272541	O-ring-3/16 in. x 4 5/8 in. i.d.	Yes	1 Day(s)	$7.94
14	152165	Clamp	Yes	1 Day(s)	$20.14
15	155050	Pressure gauge	Yes	1 Day(s)	$26.19
16	272550	Sight glass w/vacuum projector (a)	Yes	1 Day(s)	$7.43
17	271106	Gasket-sight glass (a)	Yes	1 Day(s)	$1.67
18	154493	O-ring	Yes	1 Day(s)	$4.21
19	272555	Washer - 9/16 s/s (d)	Yes	1 Day(s)	$0.93
20	272554	Nut - #10-24 serrated flange s/s	Yes	1 Day(s)	$1.13
21	272531	HiFlow 1 1/2 in. top valve assy.	Yes	1 Day(s)	$92.79
