SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

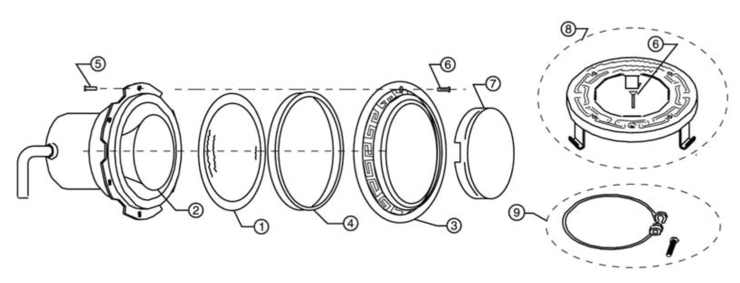

Here is the schematic view you requested:

Category: Lights and Niches
Manufacturer name: Pentair
Model Name: SpaBrite / AquaLight

Pentair SpaBrite-AquaLight replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 79107800 Lens, clear, 4 in. dia., tempered Yes 1 Day(s) $13.95

2

 79112700 Bulb, 250 watt, 120 volt, bayonet, (AquaLight) (a) Yes 1 Day(s) $60.06

2

 70517 Bulb, 100 watt, 120 volt, bayonet, (AquaLight) (a) Yes 1 Day(s) $42.53

2

 79112400 Bulb, 75 watt, 12 volt, bi-pole, (AquaLight) Yes 1 Day(s) $19.34

2

 79113800 250 watt Halogen Quartz screw base, (AquaLight) (b) Yes 1 Day(s) $55.28

2

 79102900 100 watt Halogen Quartz screw base, (AquaLight) (b) Yes 1 Day(s) $55.28

2

 79108100 Floodlamp, med. base, 100 watt, 12 volt, (SpaBrite) Yes 1 Day(s) $28.42

2

 79108000 Floodlamp, med. base, 100 watt, 120 volt, (SpaBrite) Yes 1 Day(s) $12.08

3

 79108400 Face ring, chrome-brass UL Yes 1 Day(s) $47.40

4

 79108500 Gasket for 4 in. dia. lens (off white) Yes 1 Day(s) $8.80

4

 79108600 Gasket (white), silicone 100 watt, 250 watt (AquaLight) Yes 1 Day(s) $19.80

5

 98208600 Screw, s/s 10-24 x 3/8 in., 6 req., chrome-brass Yes 1 Day(s) $1.29

6

 79104800 Pilot screw with captive gum washer, brass Yes 1 Day(s) $2.57

6

 619355 Pilot screw with captive gum washer, s/s No N/A N/A N/A

7

 650019 Kwik-change color lens pack (5 colors) Yes 1 Day(s) $23.23

7

 650018 Kwik-change color lens, green Yes 1 Day(s) $3.86

7

 650017 Kwik-change color lens, teal Yes 1 Day(s) $3.86

7

 650016 Kwik-change color lens, purple Yes 1 Day(s) $293.20

7

 650015 Kwik-change color lens, magenta Yes 1 Day(s) $293.20

7

 79109000 Kwik-change color lens, blue Yes 1 Day(s) $3.86

7

 79108900 Kwik-change color lens, red Yes 1 Day(s) $4.06

8

 79111600 Face ring assy, s/s Yes 1 Day(s) $50.09

9

 79210400 Uni-tension wire assy. s/s w/ welded nut Yes 1 Day(s) $12.69
