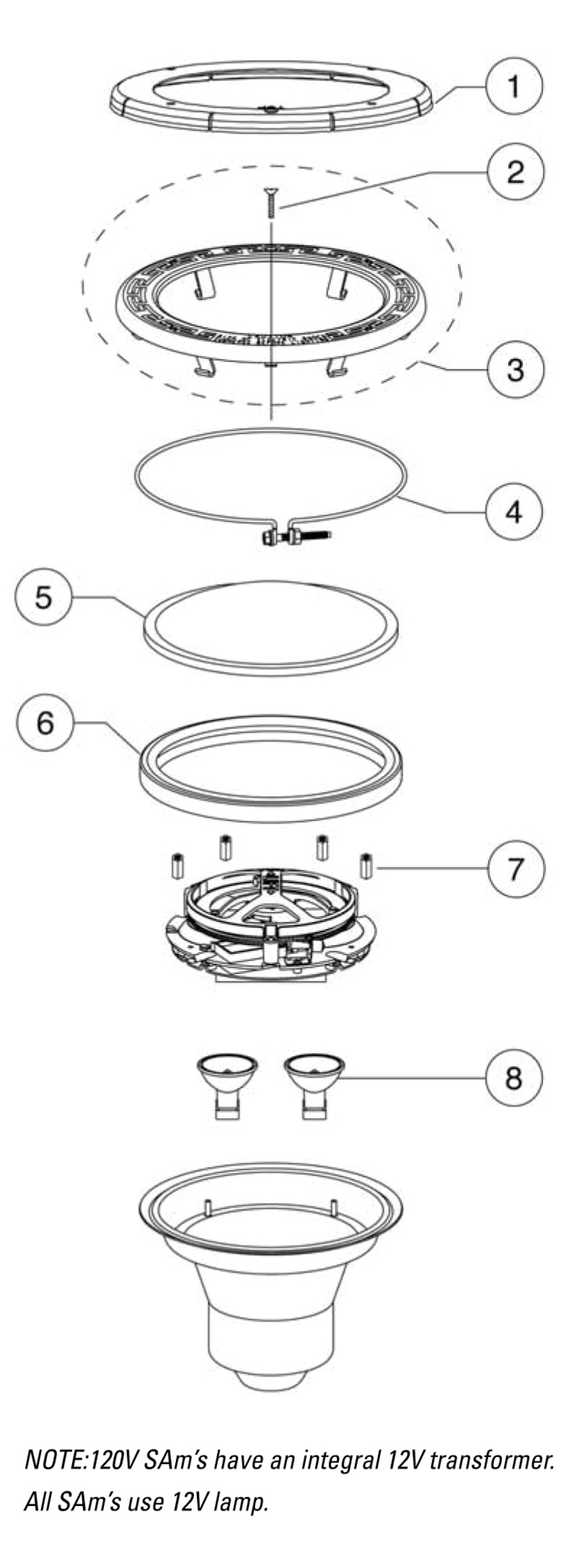

Here is the schematic view you requested:

Category: Lights and Niches

Manufacturer name: Pentair

Model Name: Spectrum Amerlite (SAm) Lights



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	619570	XPS3-Receiver, X-10	Yes	1 Day(s)	$166.99
-	619481	SAm repair kit	Yes	1 Day(s)	$141.98
-	619495	Colorwheel motor w/gear	Yes	1 Day(s)	$55.32
-	619489	Colorwheel assy.	Yes	1 Day(s)	$106.09
1	79212100	Face ring, large plastic, white	Yes	1 Day(s)	$6.73
1	79212165	Face ring, large plastic, grey	Yes	1 Day(s)	$6.73
1	79212111	Face ring, large plastic, black	Yes	1 Day(s)	$6.73
2	619355	Pilot screw with captive gum washer, s/s	No	N/A	N/A	N/A
2	79104800	Pilot screw with captive gum washer, brass	Yes	1 Day(s)	$2.57
3	79110600	Face ring assembly, s/s	Yes	1 Day(s)	$61.22
4	79111000	Uni-tension wire clamp assy.	Yes	1 Day(s)	$36.54
5	619385	Lens, SAm, standard	Yes	1 Day(s)	$34.60
6	79101600	Gasket, 8-3/8 in. lens	Yes	1 Day(s)	$18.76
7	619487	Nut, retaining	Yes	1 Day(s)	$0.90
8	619352	Lamp, 35 watt, FMW, MR-16, SAm 70 watt, 2 req.	Yes	1 Day(s)	$18.80
8	79112400	Lamp, 75 watt, EYC, MR-16, SAm 150 watt, 2 req.	Yes	1 Day(s)	$19.34
