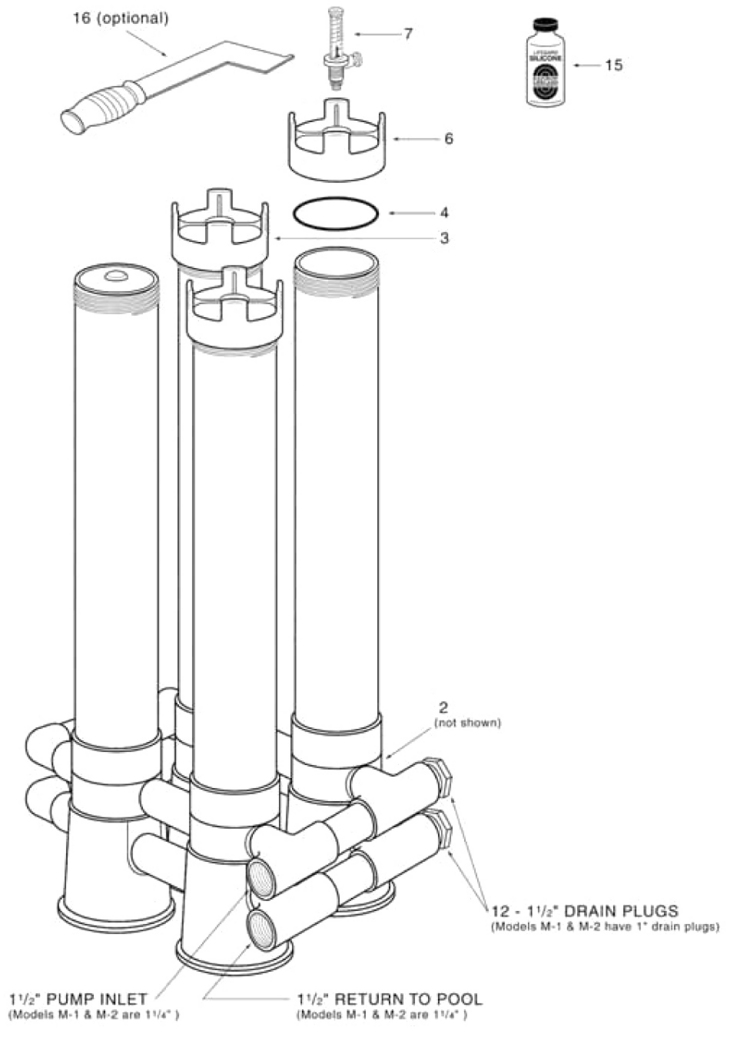

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Pentair

Model Name: Standard & High Sq. Ft. Module Filters



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R172005	Stand pipe 9 3/4 in.	Yes	1 Day(s)	$4.33
2	R172007	Plug 1/4 in. NPT	Yes	1 Day(s)	$6.20
2	R172007	Plug 1/4 in. NPT	Yes	1 Day(s)	$6.20
3	R172008	3 in. threaded cap, brown	Yes	1 Day(s)	$15.82
4	R172009	O-ring, cap	Yes	1 Day(s)	$4.14
4	R172009	O-ring, cap	Yes	1 Day(s)	$4.14
4	R172009	O-ring, cap	Yes	1 Day(s)	$4.14
4	R172009	O-ring, cap	Yes	1 Day(s)	$4.14
4	R172009	O-ring, cap	Yes	1 Day(s)	$4.14
4	R172009	O-ring, cap	Yes	1 Day(s)	$4.14
6	R172012	3 in. thrd. cap, w/1/4 in. NPT hole	Yes	1 Day(s)	$12.58
7	R172013	Pressure gauge	Yes	1 Day(s)	$8.57
7	R172013	Pressure gauge	Yes	1 Day(s)	$8.57
8	R172014	Cartridge plug	Yes	1 Day(s)	$1.14
9	R172015	Gasket, neoprene	Yes	1 Day(s)	$0.95
10	R172016	Spring, s/s	Yes	1 Day(s)	$3.51
11	R172017	Stand pipe 29 1/4 in.	Yes	1 Day(s)	$5.49
11A	R172018	Stand pipe 19 1/2 in.	Yes	1 Day(s)	$4.92
12	R172019	1 1/2 in. NPT plug	No	N/A	N/A	N/A
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
15	R172036	Silicone lubricant	Yes	1 Day(s)	$6.98
16	R172052	Cap wrench (optional)	No	5 Day(s)	$25.81
16	R172052	Cap wrench (optional)	No	5 Day(s)	$25.81
16	R172052	Cap wrench (optional)	No	5 Day(s)	$25.81
16	R172052	Cap wrench (optional)	No	5 Day(s)	$25.81
16	R172052	Cap wrench (optional)	No	5 Day(s)	$25.81
