SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

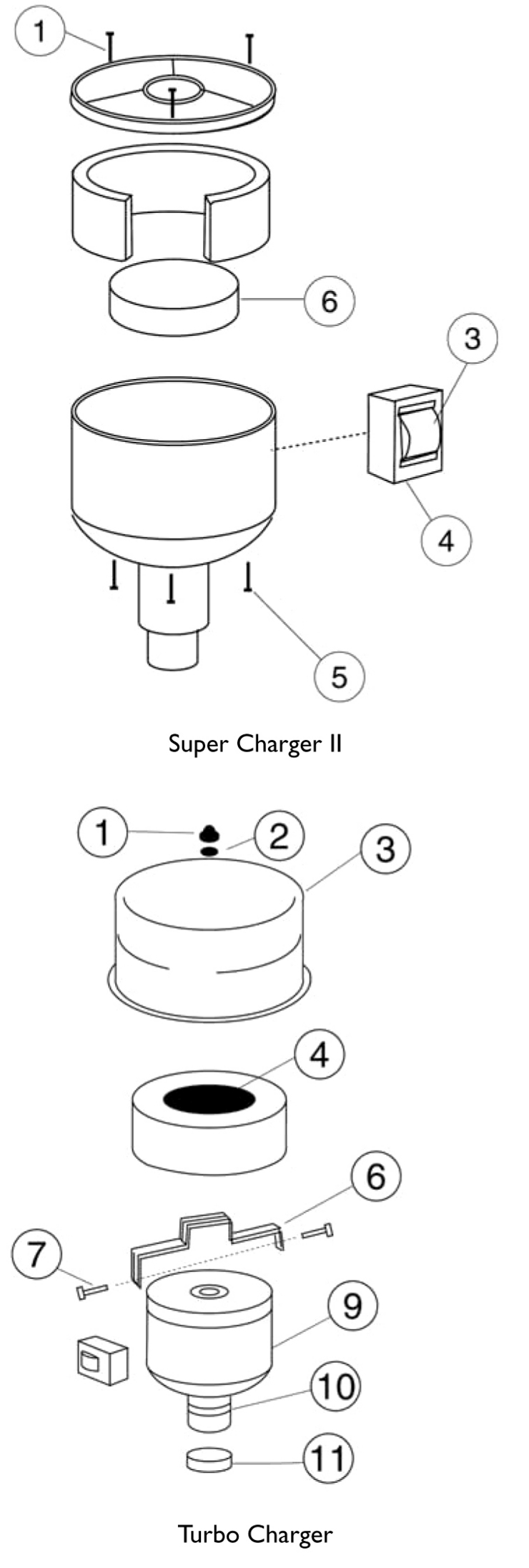

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Pentair
Model Name: Super Charger II / Turbo Charger Residential Air Blowers

Pentair Super-Charger-II-Turbo-Charger-Residenti replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 40002700 Screw, 10 x 2 1/2 in. Phillips No N/A N/A N/A

1

 41473500 Acorn nut 8-32 No N/A N/A N/A

2

 98213800 Lock washer #8 No N/A N/A N/A

3

 41111800 Switch, 120 volt, on/off, UL No N/A N/A N/A

3

 41112800 Switch, 240 volt, on/off, UL No N/A N/A N/A

4

 41111500 Cover, junction box, UL/ CSA No N/A N/A N/A

5

 40002800 Screw, 10 x 1 3/4 in. Phillips, flat head No N/A N/A N/A

6

 41412006 Bracket - 2 stage No N/A N/A N/A

6

 41412005 Bracket - 1 stage No N/A N/A N/A

6

 41116900 Blower motor, 1 hp, 220V No N/A N/A N/A

6

 41116400 Blower motor, 1 hp, 110V, UL No N/A N/A N/A

7

 98205100 Screw, 5/8 in. hex washer No N/A N/A N/A

9

 41116400 Blower motor, 1 hp, 110V, UL No N/A N/A N/A

9

 41116900 Blower motor, 1 hp, 220V No N/A N/A N/A

9

 41116700 Blower motor, 2 hp, 220V No N/A N/A N/A

10

 40000100 Clamp, 2 in. hose No N/A N/A N/A

11

 41411900 Check valve No N/A N/A N/A
