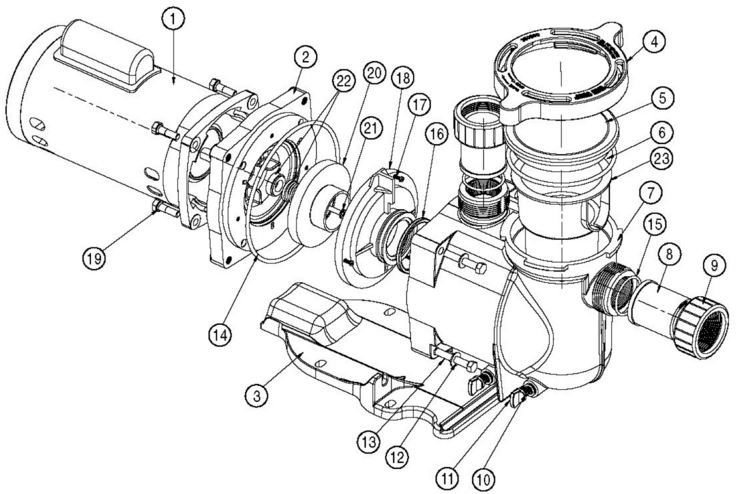

Here is the schematic view you requested:

Category: Spa Pumps and Pump Parts

Manufacturer name: Pentair

Model Name: SuperFlo



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	PKSF70WE	Wet End,.75HP,1.5",FrtDisc,SuperFlo	Yes	1 Day(s)	$117.67
1	355232	Motor SQFL, 1 HP F, 1.5A, 1 phase, 60 Hz, 2 SPD, 230V, almond	Yes	1 Day(s)	$263.01
1	356630	Motor SQFL, 1.5 HP F, 2A, 1 phase, 60 Hz, 2 SPD, 230V, almond	Yes	1 Day(s)	$297.84
1	71321	Motor SQFL, 2 HP F, 2.5A, 1 phase, 60 Hz, 2 SPD, 230V, almond	Yes	1 Day(s)	$450.81
1	PPSF5-7VF	Volute Fr w/thrd,Superflo,.5-.75HP	Yes	1 Day(s)	$35.85
2	PPSFV/OR	O-Ring, Sub1 PPUFVOR	Yes	1 Day(s)	$6.85
2	356012	Seal Plate	Yes	1 Day(s)	$66.29
3	PPSF5IMP	Impeller, Superflo, .5HP Vico	Yes	1 Day(s)	$37.03
3	PPSF10IMP	Impeller, Superflo, 1HP Vico	Yes	1 Day(s)	$35.35
3	PPSF7IMP	Impeller, Superflo, .75HP Vico	Yes	1 Day(s)	$37.03
3	PPSF15IMP	Impeller, Superflo, 1.5HP Vico	Yes	1 Day(s)	$35.35
3	350094	Base	Yes	1 Day(s)	$55.05
4	350090	Clamp, Cam & Ramp	Yes	1 Day(s)	$23.16
5	PPSF5-7VB	Volute Bracket,.5-.75HP	Yes	1 Day(s)	$29.41
5	350091	Lid	Yes	1 Day(s)	$18.58
6	357255	O-Ring, lid No. 2-357	Yes	1 Day(s)	$3.16
7	350089	Volute	Yes	1 Day(s)	$168.23
8	350093	Adaptor	Yes	1 Day(s)	$10.41
9	350093	Nut	Yes	1 Day(s)	$10.41
10	192115	O-Ring drain plug	Yes	1 Day(s)	$1.21
11	71131	Drain plug, 2 req.	Yes	1 Day(s)	$3.52
12	355621	Screw, 3/4-16 X 2-14 Hex hd	Yes	1 Day(s)	$2.84
14	355619	O-Ring valve adapter	Yes	1 Day(s)	$6.18
15	355030	O-Ring adapter No.2-226	Yes	1 Day(s)	$5.35
16	355030	Seal diffuser	Yes	1 Day(s)	$5.35
17	355334	Screw, No.8-32 hex washer HD	Yes	1 Day(s)	$0.90
18	355617	Diffuser, 1/2 F, 3/4A and 3/4F, 1A	Yes	1 Day(s)	$54.90
18	355618	Diffuser, 1 F, 1-1/2 F	Yes	1 Day(s)	$54.90
19	354290	Hex head screw, 3/8, 16	Yes	1 Day(s)	$1.51
20	355086	Impeller 2 HP, 2 SPD	Yes	1 Day(s)	$32.35
20	355258	Impeller 1/2 F	Yes	1 Day(s)	$34.13
20	355263	Impeller 3/4 F	Yes	1 Day(s)	$29.43
20	355278	Impeller 1 F	Yes	1 Day(s)	$32.12
20	355225	Impeller 1 1/2 F	Yes	1 Day(s)	$32.37
20	355086	Impeller 2 HP, 2 SPD	Yes	1 Day(s)	$32.35
20	355067	Impeller 1 F, 2-SPD	Yes	1 Day(s)	$31.76
20	355074	Impeller 1 1/2 HP, 2 SPD	Yes	1 Day(s)	$32.12
21	355389	Screw, impeller licking	Yes	1 Day(s)	$0.90
22	354545	Seal set	Yes	1 Day(s)	$13.05
23	355667	Basket, Large	Yes	1 Day(s)	$12.82
