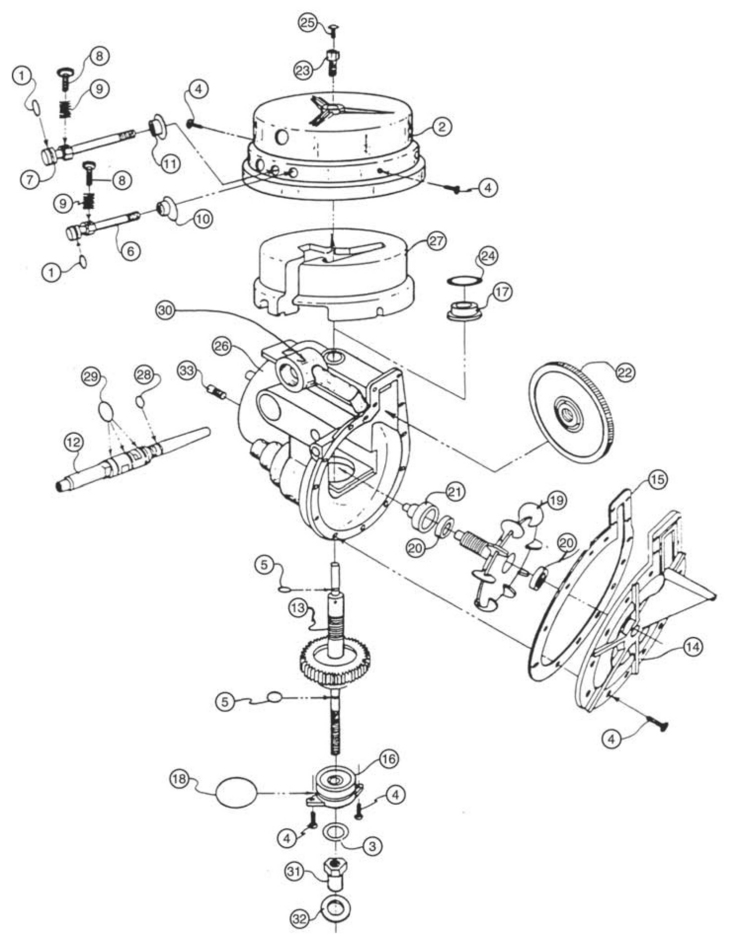

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Pentair

Model Name: Sweep I & II - L79BL



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	LLEF07	O-Ring for Hose Connector	Yes	1 Day(s)	$1.27
1	LLEF07	O-Ring for Hose Connector	Yes	1 Day(s)	$1.27
1	LLEF07	O-Ring for Hose Connector	Yes	1 Day(s)	$1.27
2	LLG01BL	Top Shell	Yes	1 Day(s)	$69.87
3	LLG08	Spacer S.S.	Yes	1 Day(s)	$0.66
4	LLG10A	Gear Housing Screw	Yes	1 Day(s)	$3.66
5	LLG12	O-Ring for Gear Axle	Yes	1 Day(s)	$1.36
6	LLG13	Wall Hose Connector	Yes	1 Day(s)	$15.51
7	LLG14	Floor Hose Connector	Yes	1 Day(s)	$20.09
8	LLJVW4	Thumb Screw	No	N/A	N/A	N/A
9	LLEG16A	Compression Spring	Yes	1 Day(s)	$2.43
10	LLG17	Grommet - Wall Hose Connector	Yes	1 Day(s)	$2.63
11	LLG18	Grommet - Floor Hose Connector	Yes	1 Day(s)	$2.63
12	LLG21C	Valve Drive Jet	Yes	1 Day(s)	$28.50
13	LLG26L	Gear Axle w/ Tile Rinser - Blue	Yes	1 Day(s)	$30.58
14	LLG28A	Gear Housing Cover	Yes	1 Day(s)	$37.61
15	LLG29	Gasket for G28A	Yes	1 Day(s)	$3.26
16	LLG30B	Lower Bearing with O-Ring	Yes	1 Day(s)	$7.01
17	LLG31	Axle and Impeller Thrust Bearing	Yes	1 Day(s)	$2.61
18	LLG32	O-Ring for Lower Bearing	Yes	1 Day(s)	$1.70
19	LLG33C	Turbine Wheel for G35B Blue	Yes	1 Day(s)	$35.19
20	LLG35B	Thrust Bearing	Yes	1 Day(s)	$14.47
20	LLG35B	Thrust Bearing	Yes	1 Day(s)	$14.47
20	LLG35B	Thrust Bearing	Yes	1 Day(s)	$14.47
20	LLG35B	Thrust Bearing	Yes	1 Day(s)	$14.47
21	LLG35C	Bearing Holder	Yes	1 Day(s)	$6.23
22	LLG36L	Valve Gear - Blue	Yes	1 Day(s)	$23.01
23	LLG39	Tile Rinser w/Screw	Yes	1 Day(s)	$6.63
24	LLG47	Spinner Washer	Yes	1 Day(s)	$0.61
25	LLG49	Tile Rinser Screw	Yes	1 Day(s)	$0.69
26	LLG27	Gear Housing	Yes	1 Day(s)	$90.59
27	LLG55	Float for Cleaner Head	Yes	1 Day(s)	$18.93
28	LLF24	O-Ring for Back-up Extension	Yes	1 Day(s)	$1.36
29	LLEJ04	O-Ring for Valve Drive Jet	Yes	1 Day(s)	$1.32
30	LLPG27A	Accessory Part for G27	Yes	1 Day(s)	$16.55
31	LLG44	Woven Nut - Plated	Yes	1 Day(s)	$1.57
31	LLG44	Woven Nut - Plated	Yes	1 Day(s)	$1.57
32	LLG04	Washer - Flat Plated	Yes	1 Day(s)	$1.36
32	LLG04	Washer - Flat Plated	Yes	1 Day(s)	$1.36
33	LLG51C	Screw Thrust Adjuster	Yes	1 Day(s)	$2.63
