SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

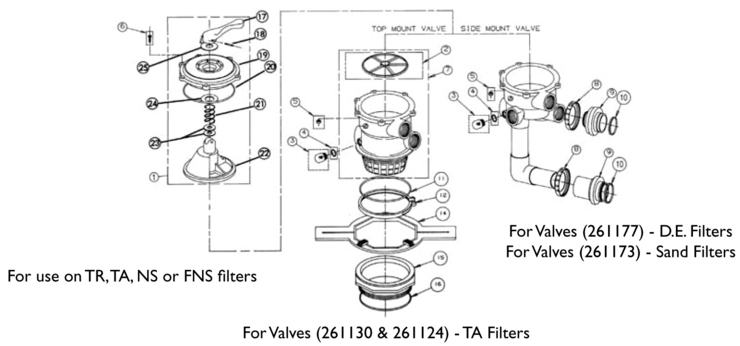

Here is the schematic view you requested:

Category: Valves
Manufacturer name: Pentair
Model Name: Top Mount/Side Mount 1 1/2 Valves

Pentair Top-MountSide-Mount-1-12-Valves replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 711004 Clamp - worm 1 1/2 in. hose Yes 1 Day(s) $3.59

1

 270068 Top valve assy. 1 1/2 in. Yes 1 Day(s) $111.19

2

 271104 Gasket - diverter Yes 1 Day(s) $14.85

3

 272550 Sight glass Yes 1 Day(s) $7.43

4

 271106 Gasket - sight glass Yes 1 Day(s) $1.67

5

 271139 Nut, M6 s/s No N/A N/A N/A

6

 152168 Screw - M6 x 30mm s/s Yes 1 Day(s) $1.29

7

 271145 Body - replacement w/diffuser Yes 1 Day(s) $190.06

8

 274407 Nut - bulkhead adapter Yes 1 Day(s) $13.08

9

 274651 Adapter - valve Yes 1 Day(s) $7.45

9

 274404 Adapter - valve Yes 1 Day(s) $19.30

10

 274494 O-ring - adapter Yes 1 Day(s) $4.84

11

 272541 O-ring - valve adapter Yes 1 Day(s) $7.94

12

 152165 Clamp with screws and nuts Yes 1 Day(s) $20.14

14

 154512 Wrench - flanged valve Yes 1 Day(s) $20.61

15

 154555 Adapter - flanged buttress Yes 1 Day(s) $33.82

15

 155225 Adapter - flanged std. thread Yes 1 Day(s) $30.01

16

 154493 O-ring Yes 1 Day(s) $4.21

17

 271156 Handle Yes 1 Day(s) $18.51

18

 271164 Pin, handle Yes 1 Day(s) $7.45

19

 271158 Valve top, white Yes 1 Day(s) $33.77

19

 271165 Valve top, black Yes 1 Day(s) $33.77

20

 271103 O-ring, valve top Yes 1 Day(s) $8.80

21

 271161 Valve spring Yes 1 Day(s) $25.05

22

 271163 Valve diffuser Yes 1 Day(s) $45.05

23

 271162 O-ring, stem No N/A N/A N/A

24

 271160 Washer, valve spring Yes 1 Day(s) $5.46

25

 271157 Washer, handle Yes 1 Day(s) $5.46
