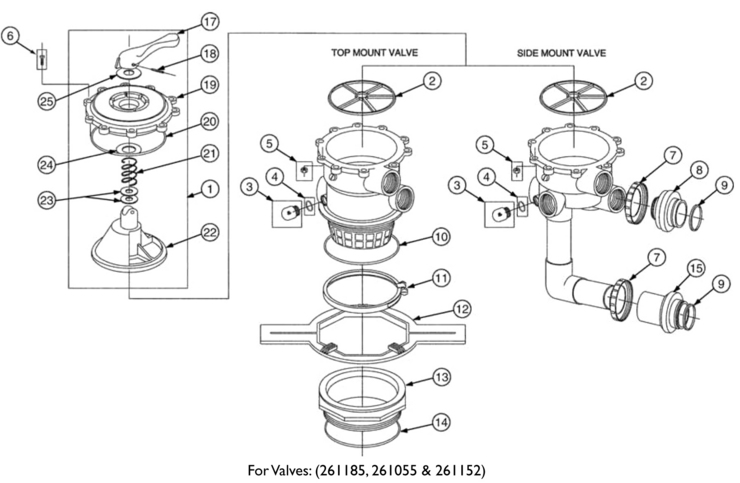

Here is the schematic view you requested:

Category: Valves

Manufacturer name: Pentair

Model Name: Top Mount/Side Mount 2 Valves



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	270067	Top valve assy. 2 in.	Yes	1 Day(s)	$132.23
2	271148	Gasket	Yes	1 Day(s)	$21.40
3	272550	Sight glass	Yes	1 Day(s)	$7.43
4	271106	Gasket - sight glass	Yes	1 Day(s)	$1.67
5	271139	Nut, M6 s/s	No	N/A	N/A	N/A
6	152168	Screw - M6 x 30mm s/s	Yes	1 Day(s)	$1.29
7	274407	Nut - bulkhead adapter	Yes	1 Day(s)	$13.08
8	274556	Adapter - valve thread	Yes	1 Day(s)	$8.67
9	274494	O-ring adpater	Yes	1 Day(s)	$4.84
10	275333	O-ring - valve	Yes	1 Day(s)	$6.17
11	152130	Band assy. - valve	Yes	1 Day(s)	$76.00
12	151608	Wrench - adapter flange	Yes	1 Day(s)	$170.85
13	154514	Adapter - flange buttress thread	Yes	1 Day(s)	$102.29
14	152501	O-ring - adapter	Yes	1 Day(s)	$8.09
15	274404	Adapter - valve slip	Yes	1 Day(s)	$19.30
17	271156	Handle	Yes	1 Day(s)	$18.51
18	271164	Pin, handle	Yes	1 Day(s)	$7.45
19	271166	Top valve cover	Yes	1 Day(s)	$50.58
19	271169	Top valve cover	Yes	1 Day(s)	$50.58
20	271151	O-ring	Yes	1 Day(s)	$10.81
21	271161	Valve spring	Yes	1 Day(s)	$25.05
22	271168	Valve diffuser	Yes	1 Day(s)	$50.58
23	271162	O-ring	No	N/A	N/A	N/A
24	271160	Washer	Yes	1 Day(s)	$5.46
25	271157	Washer, handle	Yes	1 Day(s)	$5.46
