Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Pentair
Model Name: WaterFall Pump

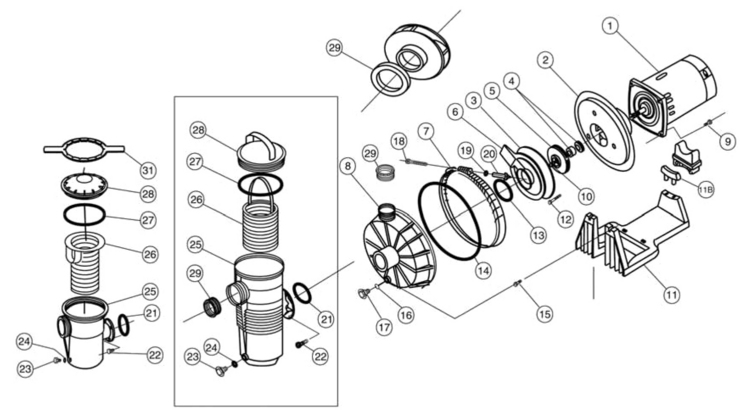

Pentair WaterFall-Pump replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

355218 Motor - AF-75 & 120, AFP-75 & 120, 37 lbs. Yes 1 Day(s) $208.97

1

355222 Motor - AF-180, AFP-150 & 180, 35 lbs. Yes 1 Day(s) $249.69

2

355497 Plate - seal Yes 1 Day(s) $58.15

3

355317 Plate - mounting AF-75, AFP-75 Yes 1 Day(s) $8.53

3

355495 Plate - mounting AF-120 & 180, AFP-120,150 & 180 Yes 1 Day(s) $7.88

4

354545 Seal - 5/8 in. mechanical, PS 200 Yes 1 Day(s) $13.05

5

355544 Imp. AF-75, AFP-75 Yes 1 Day(s) $42.23

5

355068 Imp. AF-120, AFP-120 Yes 1 Day(s) $31.76

5

355221 Imp. AF-180, AFP-150 & 180 Yes 1 Day(s) $30.86

6

355140 Diffuser AF-180, AFP-150 & 180 Yes 1 Day(s) $28.82

6

355069 Diffuser AF-120, AFP-120 Yes 1 Day(s) $21.40

6

355545 Diffuser AF-75, AFP-75 Yes 1 Day(s) $53.22

7

355320 Band - clamp assy, complete Yes 1 Day(s) $49.57

8

355302 Housing - front Yes 1 Day(s) $117.37

9

354290 Screw - 3/8 in.-16 hex hd., 4 req. Yes 1 Day(s) $1.51

10

355389 Screw - impeller locking Yes 1 Day(s) $0.90

11

355305 Base - pump (a) Yes 1 Day(s) $28.31

11B

355385 Adapter - 5 -5/8 in. dia. motor (b) Yes 1 Day(s) $7.22

12

355334 Screw #8-32 x 1 in. AF-75 & 120, AFP-75 & 120, (3 req.) Yes 1 Day(s) $0.90

12

355141 Screw #8-32 x 1-1/2 in. AF-180, AFP-150 & 180 Yes 1 Day(s) $0.93

13

355331 O-ring - diffuser Yes 1 Day(s) $0.95

14

355329 O-ring - front housing Yes 1 Day(s) $9.59

15

355335 Screw - 5/16 -18 x 1/2 in. s/s hex wsh. hd., (AF models only) Yes 1 Day(s) $0.90

16

192115 O-ring - drain plug Yes 1 Day(s) $1.21

17

154699 Plug - 1/2 in. drain Yes 1 Day(s) $5.60

20

175025 Knob (fits clamp w/captured T-bolt only) Yes 1 Day(s) $20.11

21

355330 O-ring - strainer pot flange Yes 1 Day(s) $1.62

22

354265 Screw-5/16 in.-18 hexwsh. hd., 4 req. Yes 1 Day(s) $1.22

23

154699 Plug-1/4 in. drain Yes 1 Day(s) $5.60

24

192115 O-ring - drain plug Yes 1 Day(s) $1.21

25

355300 Strainer pot AFP-75, AFP-120 & 150 Yes 1 Day(s) $83.63

25

355900 Strainer pot AFP-180 Yes 1 Day(s) $299.55

26

355901 Basket -s/s strainer AFP-180 Yes 1 Day(s) $234.37

26

355441 Basket -s/s strainer AFP-150 Yes 1 Day(s) $108.10

26

355318 Basket-plastic strainer AFP-75 & 120 Yes 1 Day(s) $23.47

27

350013 O-ring-lid AFP-75, AFP-120 & 150 Yes 1 Day(s) $1.76

27

152509 Seal-lid AFP-180 Yes 1 Day(s) $4.20

28

355301 Lid - strainer pot AFP-75, AFP-120 & 150 Yes 1 Day(s) $36.84

28

355902 Lid-strainer pot AFP-180 Yes 1 Day(s) $42.71

29

355142 Bushing - impeller nose AF-180, AFP-150 & 180 Yes 1 Day(s) $39.39

31

154527 Wrench 8 1/2in. -strainerpot AFP-180 Yes 1 Day(s) $16.77
