SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

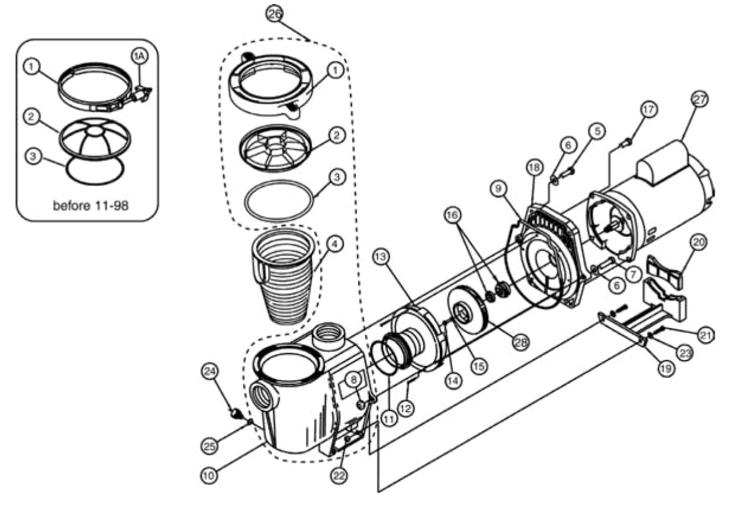

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Pentair

Model Name: WhisperFlo Pump



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	75452	WFE-3 fluid end, 3/4 hp	Yes	1 Day(s)	$456.13
-	75256	WF-12 (j)	Yes	1 Day(s)	$1033.75
-	75254	WF-6, WF-28 (j)	Yes	1 Day(s)	$717.65
-	75453	WFE4 fluid end, 1 hp	Yes	1 Day(s)	$447.56
-	75454	WFE-6 fluid end, 1 1/2 hp	Yes	1 Day(s)	$451.73
-	75455	WFE-8 fluid end, 2 hp	Yes	1 Day(s)	$447.85
-	75456	WFE-12 fluid end, 3 hp	Yes	1 Day(s)	$446.36
-	75253	WF4, WF-26 (j)	Yes	1 Day(s)	$604.75
-	75144	WFEDS-8, WFEDS-30 (k)	Yes	1 Day(s)	$1092.85
-	75143	WFEDS-6, WFEDS-28 (k)	Yes	1 Day(s)	$898.28
-	75142	WFEDS-4 (k)	Yes	1 Day(s)	$768.80
-	75141	WFE-12 (c)	Yes	1 Day(s)	$1040.75
-	75140	WFE-8, WFE-30 (c)	Yes	1 Day(s)	$838.41
-	75139	WFE-6, WFE-28 (c)	Yes	1 Day(s)	$729.05
-	75138	WFE4. WFE-26 (c)	Yes	1 Day(s)	$622.26
-	75137	WFE-3, WFE-24 (c)	Yes	1 Day(s)	$584.52
-	75252	WF-3, WF-24 (j)	Yes	1 Day(s)	$572.56
-	75255	WF-8, WF-30 (j)	Yes	1 Day(s)	$824.80
1	70711	Clamp band assy., s/s, WF/AQ (old style) (e)	Yes	1 Day(s)	$50.49
1A	71136	Knob, only	Yes	1 Day(s)	$18.32
1	357150	Clamp, cam & ramp, plastic, black, WF	Yes	1 Day(s)	$27.29
1	357199	Clamp, cam & ramp, plastic, almond, WF (a)	Yes	1 Day(s)	$27.29
2	70795	Cover, clear, AQ/WFE pump (old style) (e)	Yes	1 Day(s)	$28.55
2	357151	Cover, clear, WFE pump (f)	Yes	1 Day(s)	$20.54
2	357156	Cover, chemical resistant cam & ramp	Yes	1 Day(s)	$38.73
3	71422	O-ring,AQ/WFE cover (e)	Yes	1 Day(s)	$3.95
3	350013	O-ring, WFE cover (f)	Yes	1 Day(s)	$1.76
4	70387	Basket, AQ & WFE	Yes	1 Day(s)	$10.99
5	70430	Bolt 3/8-16 x 1.25 hex hd.s/s, 4 req.	Yes	1 Day(s)	$1.42
7	70431	Bolt 3/8-16 x 1.75 hex hd. s/s, 2 req.	Yes	1 Day(s)	$1.58
8	71403	Nut 3/8 -16 hex hd, 2 req.	Yes	1 Day(s)	$0.90
9	357102	Gasket seal plate, WFE pump	Yes	1 Day(s)	$3.57
9	71445	O-ring parker #2-265, WFE pump (a)(d)	Yes	1 Day(s)	$9.86
10	350015	Volute, WFE pump Spot - almond (f)	Yes	1 Day(s)	$130.58
10	357157	Volute, WFE pump Spot - black (i)	Yes	1 Day(s)	$130.58
10	357149	Volute, WFE pump Spot (Replaces 074565)	Yes	1 Day(s)	$171.80
11	71444	O-ring parker #2-238, WFE pump	Yes	1 Day(s)	$3.52
12	71660	Set screw, 4-40 x 1 - 1/8 WFE, 2 req.	Yes	1 Day(s)	$1.87
13	72928	Diffuser assy, WFE-12,3 hp only	Yes	1 Day(s)	$51.98
13	72927	Diffuser assy, WFE-2-8, 1/2hp - 2.5 hp	Yes	1 Day(s)	$43.47
14	71652	Set screw 1/4-20 x 1 lh. phillips	Yes	1 Day(s)	$1.49
15	75713	Rubberwasher, WFE pump	Yes	1 Day(s)	$0.90
17	70429	Bolt 3/8 -16 x 7/8 s/s hex hd, 4 req.	Yes	1 Day(s)	$1.58
18	357149	Seal plate, WFE (Replaces 075417) (d)	Yes	1 Day(s)	$171.80
18	74564	Seal plate, WFE (b)	Yes	1 Day(s)	$62.19
19	70927	Foot, WFE4 pump	Yes	1 Day(s)	$21.94
19	357159	Foot - black (i)	Yes	1 Day(s)	$21.94
20	70929	Foot insert, WFE pump	Yes	1 Day(s)	$10.99
20	357160	Foot insert, WFE pump - black (i)	Yes	1 Day(s)	$10.99
21	71657	Screw 1/4 - 20 x 1 in. hh. s/s, 2 req.	Yes	1 Day(s)	$0.90
22	71406	Nut 1/4 - 20 hex. hd. s/s, 2req.	Yes	1 Day(s)	$0.90
24	357161	Knob plug drain, 2 req, - black (i)	Yes	1 Day(s)	$2.30
24	71131	Knob plug drain, 2 req. - almond	Yes	1 Day(s)	$3.52
25	74629	Gasket, flat wsh, WFE pmp. drn, 2 req.	Yes	1 Day(s)	$0.90
26	357149	Volute replacement kit - (f)	Yes	1 Day(s)	$171.80
27	71321	2 hp, 2 sp, WFDS-8 & 30,45 lbs. (k)	Yes	1 Day(s)	$450.81
27	71320	1 1/2 hp, 2 sp., WFDS-6 & 28, 36 lbs. (k)	Yes	1 Day(s)	$360.61
27	356630	1 hp, 1.5A, 2spd, 1 ph, sq. fig. almond	Yes	1 Day(s)	$297.84
27	75237	3hp,WF-12,40lbs. (j)	Yes	1 Day(s)	$421.37
27	355203	WFK-4 motor, 28 lbs, 3 ph, blk.	Yes	1 Day(s)	$257.00
27	355204	WFK-6 motor, 30 lbs, 3 ph, blk.	Yes	1 Day(s)	$320.61
27	355398	WFK-12 motor, 35 lbs, 3 ph, blk.	Yes	1 Day(s)	$431.60
27	355205	WFK-8 motor, 37 lbs, 3 ph, blk.	Yes	1 Day(s)	$356.52
27	356630	1 hp, 1.5A, 2spd, 1 ph, sq. fig. almond	Yes	1 Day(s)	$297.84
28	73126	Imp. WFE-2 1000 series	Yes	1 Day(s)	$57.11
28	73127	Imp. WFE-3 1000 series, WF-3 & 24, FE-24	Yes	1 Day(s)	$57.11
28	73128	Imp. WFE4 1000 series, WF-4 & 26, FE-26	Yes	1 Day(s)	$57.11
28	73129	Imp. WFE-6 1000 series, WF-6 & 28, WFDS-6 & 28, WFE-28	Yes	1 Day(s)	$57.11
28	73131	Imp. WFE-12 1000 series, WFE-12	Yes	1 Day(s)	$57.11
28	73130	Imp. WFE-8 1000 series, WF-8 & 30, WFDS-8 & 30, WFE-30	Yes	1 Day(s)	$57.11
