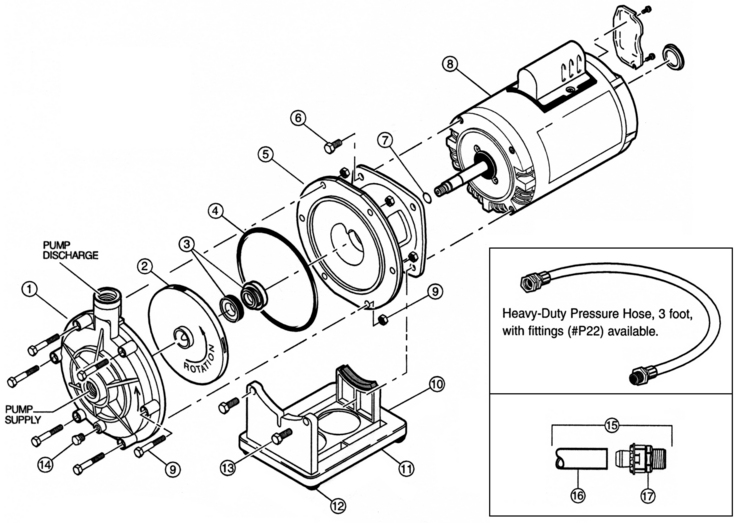

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Polaris

Model Name: Booster Pump w/60 Hz Motor



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	P22	Heavy-Duty Pressure Hose, 3 Foot, with Fittings	Yes	1 Day(s)	$32.15
-	P18	Pump Hose, 3 Foot, Flexible Reinforced	Yes	1 Day(s)	$11.27
-	G133	Hose Barb and Clamp	Yes	1 Day(s)	$6.80
-	G17	Nipple 3/4"" NPTM x NPTM, G12 Only	Yes	1 Day(s)	$3.90
-	G16	Adapter 3/4"" NHTM x NPTM, Pump	Yes	1 Day(s)	$2.19
1	P5	Volute (Includes Drain Plug)	Yes	1 Day(s)	$40.37
2	P15	Impeller	Yes	1 Day(s)	$22.04
3	P55	Seal, Stainless Steel Cup/Spring	Yes	1 Day(s)	$15.93
4	P95	O-Ring, Bracket	Yes	1 Day(s)	$9.73
5	P10	Bracket	Yes	1 Day(s)	$40.37
6	P35	Bolt, Stainless, Bracket to Motor	Yes	1 Day(s)	$0.79
7	P40	O-Ring for Shaft	Yes	1 Day(s)	$1.64
8	P61	Motor, 3/4 HP, Threaded Shaft, 60 Hz	Yes	1 Day(s)	$245.34
9	P25	Bolt/Nut, Stainless for Volute to Bracket	Yes	1 Day(s)	$1.27
10	P80	Rubber Strip, Motor/Bracket	Yes	1 Day(s)	$1.11
11	P70	Pump Stand with Feet, Strip	Yes	1 Day(s)	$42.32
12	P75	Rubber Feet	Yes	1 Day(s)	$0.55
13	P65	Bolt, SS, Stand to Bracket and Motor	Yes	1 Day(s)	$0.89
14	P20	1/8"" NPTM Plug, Plastic	Yes	1 Day(s)	$1.66
15	P17	Softube® Hose, 6 Foot, with Quick Connects	Yes	1 Day(s)	$34.80
16	P19	Pump Hose, 6 Foot, Flexible Reinforced	Yes	1 Day(s)	$21.92
17	P133	Softube® Quick Connect	Yes	1 Day(s)	$5.90
