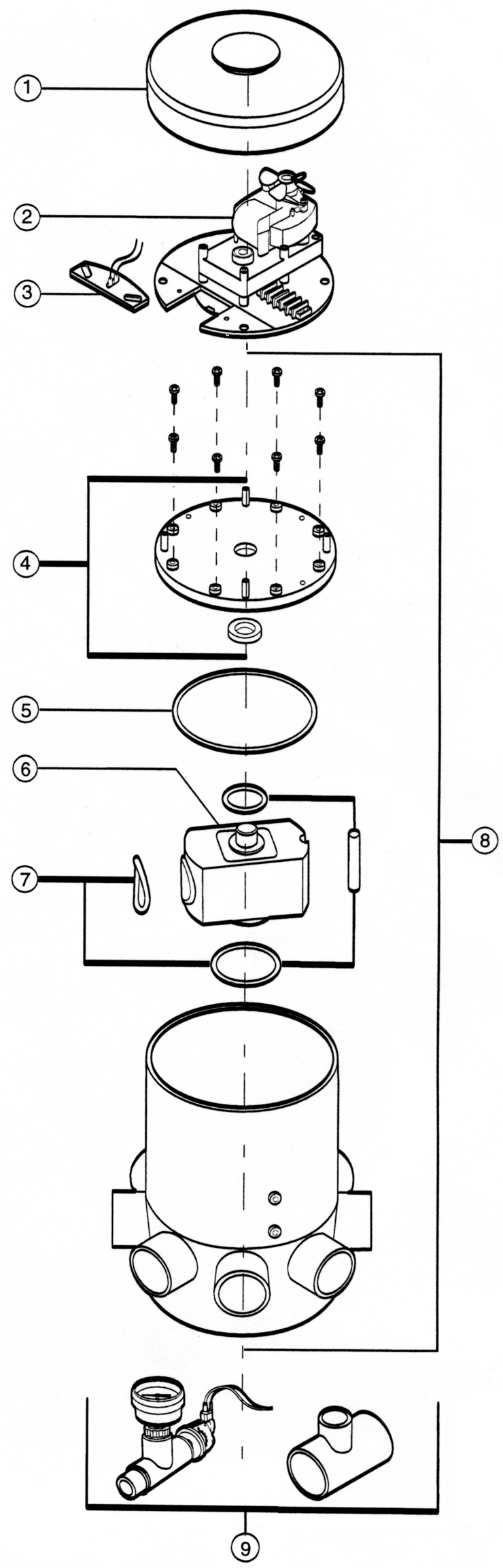

Here is the schematic view you requested:

Category: Automatic Cleaners

Manufacturer name: Polaris

Model Name: Ultraflex Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	4-7-305	Blower Plate Assembly (UF)	Yes	1 Day(s)	$128.03
-	2-7-2	Pressure Switch/Gauge Assembly (UF)	No	N/A	N/A	N/A
-	2-7-53	Inlet Wear Insert (UF)	Yes	1 Day(s)	$9.42
-	2-7-300	Top Plate Valve Assembly (UFII)	Yes	1 Day(s)	$111.74
-	2-7-304	Sensor Assembly (UFII)	Yes	1 Day(s)	$72.32
-	3-7-105	Counter-Clockwise Motor Assembly (UF)	Yes	1 Day(s)	$374.71
-	3-7-302	Lid Assembly (UFII)	Yes	1 Day(s)	$44.80
-	3-7-600	O-Ring Kit (UFII)	No	N/A	N/A	N/A
-	3-7-650	PCB Replacement Kit (UFII)	Yes	1 Day(s)	$176.95
-	4-7-5	PCB Replacement Kit (UF)	Yes	1 Day(s)	$129.76
-	4-7-210	200' Shielded Direct Cable Assembly (UF)	No	N/A	N/A	N/A
-	4-7-211	150' Shielded Direct Cable Assembly (UF)	No	N/A	N/A	N/A
-	4-7-212	100' Shielded Direct Cable Assembly (UF)	No	N/A	N/A	N/A
-	1-9-182	Direct Burial Cable (250' spool) (UF/UFII)	Yes	1 Day(s)	$102.80
-	1-9-168	Transformer (UF)	Yes	1 Day(s)	$70.56
-	1-9-163	Knob for Controller Box (UF/UFII)	Yes	1 Day(s)	$5.22
-	1-9-144	Rotary Switch - 6 position (UF/UFII)	Yes	1 Day(s)	$34.11
-	1-7-153	Inlet Wear Insert (UFII)	No	N/A	N/A	N/A
-	1-7-109	Molded Wall Insert (UFII)	No	N/A	N/A	N/A
-	1-7-102	Molded Tee (UFII)	No	N/A	N/A	N/A
1	3-7-8	Valve Lid	Yes	1 Day(s)	$100.66
2	3-7-5	Motor Assembly	Yes	1 Day(s)	$290.63
3	3-7-6	Sensor Plate	Yes	1 Day(s)	$73.01
4	3-7-12	Top Plate Assembly	Yes	1 Day(s)	$100.00
5	1-13-21	O-Ring, Face Seal	No	N/A	N/A	N/A
6	3-7-3	Tee Assembly	Yes	1 Day(s)	$251.40
7	4-7-4	O-Ring Kit	Yes	1 Day(s)	$66.02
8	4-7-200	Plumbing Kit	No	N/A	N/A	N/A
9	4-7-2	Pressure Switch/Gauge Assembly	Yes	1 Day(s)	$54.37
