SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

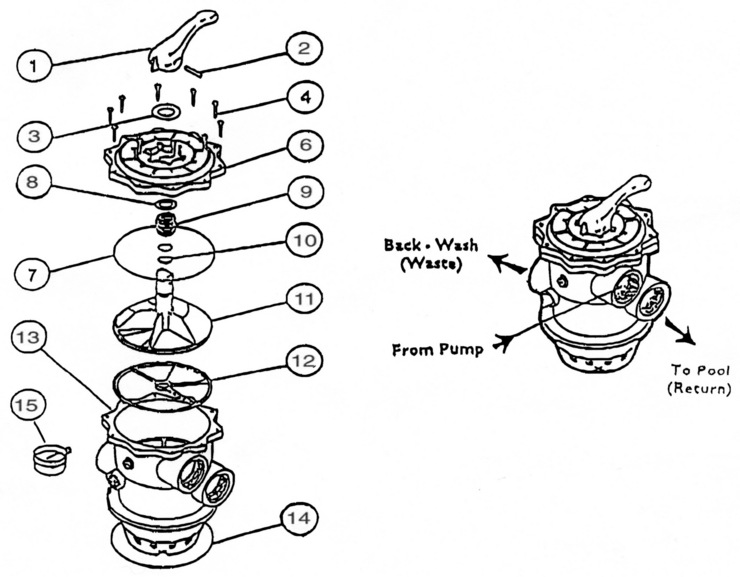

Here is the schematic view you requested:

Category: Valves
Manufacturer name: PoolCo Industries Inc.
Model Name: 7 Way Multiport Valve

PoolCo Industries Inc. 7-Way-Multiport-Valve replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 7VVH Valve Handle No N/A N/A N/A

2

 7VSSP Stainless Steel Pin No N/A N/A N/A

3

 7VPW Plastic Washer No N/A N/A N/A

4

 7VSSBN Bolts and Nuts No N/A N/A N/A

6

 7VVC Valve Cover No N/A N/A N/A

7

 7VVCOR Valve Cover ""O"" Ring No N/A N/A N/A

8

 7VSSW Stainless Steel Washer No N/A N/A N/A

9

 7VSSSP Spring No N/A N/A N/A

10

 7VDOR Diverter ""O"" Ring No N/A N/A N/A

11

 7DVVD Valve Diverter No N/A N/A N/A

12

 7VDSG Diverter Spider Gasket No N/A N/A N/A

13

 7VVB Valve Body No N/A N/A N/A

14

 VTOR Valve to Tank ""O"" Ring No N/A N/A N/A
