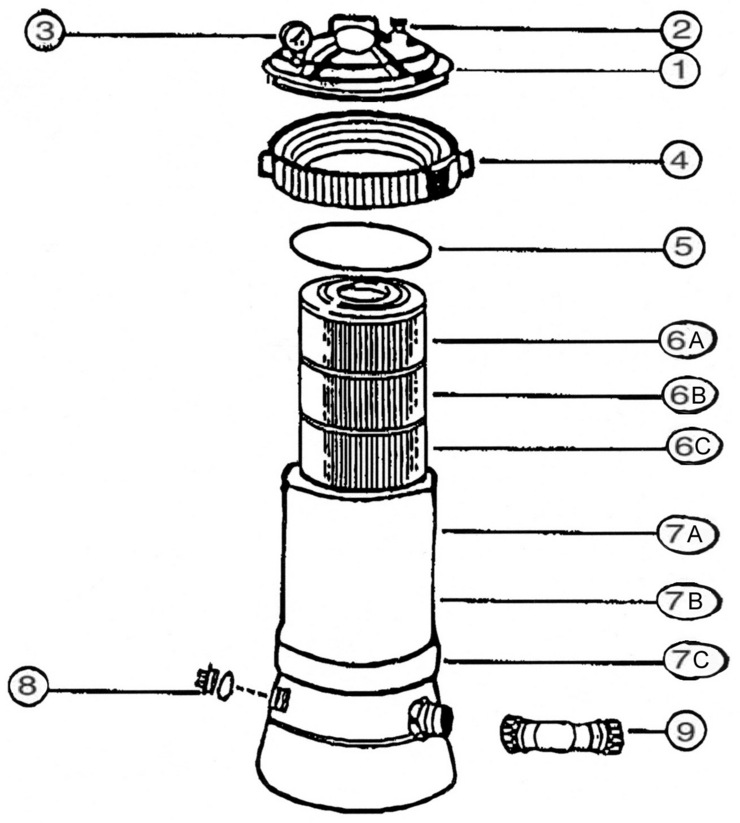

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: PoolCo Industries Inc.

Model Name: CW650,900,120 Cartridge Filter



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	CWFH	Filter Head w/Handle	No	N/A	N/A	N/A
2	XLDPOR	Air Relief Plug w/"O" Ring	No	N/A	N/A	N/A
2	XLDPOR	Air Relief Plug w/"O" Ring	No	N/A	N/A	N/A
2	XLDPOR	Air Relief Plug w/"O" Ring	No	N/A	N/A	N/A
2	XLDPOR	Air Relief Plug w/"O" Ring	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
3	PRG	Pressure Gauge	No	N/A	N/A	N/A
4	CWDELR	Locking Ring w/Handles	No	N/A	N/A	N/A
4	CWDELR	Locking Ring w/Handles	No	N/A	N/A	N/A
5	CWDEFHOR	Filter Head "O" Ring	No	N/A	N/A	N/A
5	CWDEFHOR	Filter Head "O" Ring	No	N/A	N/A	N/A
6A	CWFE65	Filter Element - 65 Sq. Ft.	No	N/A	N/A	N/A
6B	CWFE90	Filter Element - 90 Sq. Ft.	No	N/A	N/A	N/A
6C	CWFE120	Filter Element - 120 Sq. Ft.	No	N/A	N/A	N/A
7A	CWFB65	Filter Body (CW-65)	No	N/A	N/A	N/A
7B	CWFB90	Filter Body (CW-90)	No	N/A	N/A	N/A
7C	CWFB120	Filter Body (CW-120)	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
8	TPWOR	Threaded 1 1/2" Plug w/"O" Ring	No	N/A	N/A	N/A
9	CWDEUA	Filter to Pump Union Assembly	No	N/A	N/A	N/A
9	CWDEUA	Filter to Pump Union Assembly	No	N/A	N/A	N/A
