SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

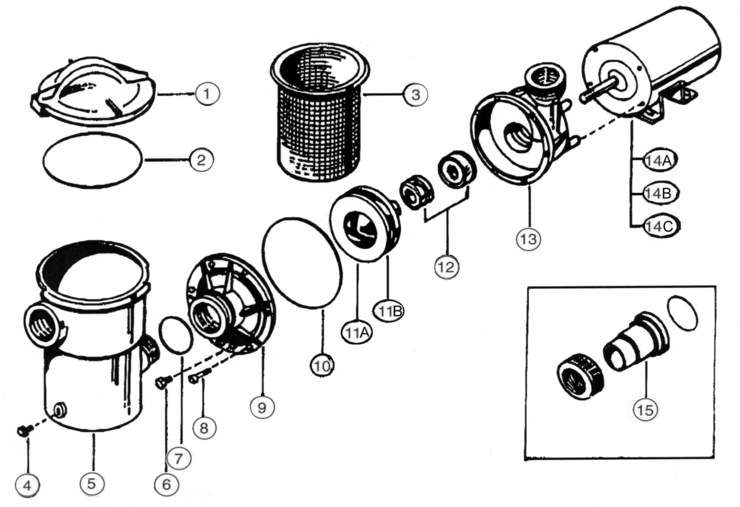

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: PoolCo Industries Inc.
Model Name: Vortex XL Pump

PoolCo Industries Inc. Vortex-XL-Pump replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 XLSC Strainer Cover No N/A N/A N/A

2

 XLSCOR Strainer Cover ""O"" Ring No N/A N/A N/A

3

 XLBAS Strainer Basket No N/A N/A N/A

5

 XLPOT Strainer Housing No N/A N/A N/A

7

 XLSOR Threaded Strainer 1 1/2"" ""O"" Ring No N/A N/A N/A

8

 XLHBA Housing Bolt Assembly No N/A N/A N/A

9

 XLPHC Pump Housing Cover No N/A N/A N/A

10

 XLPHOR Pump Housing ""O"" Ring No N/A N/A N/A

11C

 XL10IMP 1HP Impeller No N/A N/A N/A

11B

 XL15IMP 1.5HP Impeller No N/A N/A N/A

11A

 XL20IMP 2HP Impeller No N/A N/A N/A

12

 XLSEAL Seal Assembly No N/A N/A N/A

13

 XLPHB Pump Housing Base No N/A N/A N/A

14A

 XLM100 1HP Motor - 60 Cycle No N/A N/A N/A

14B

 XLM150 1.5HP Motor - 60 Cycle No N/A N/A N/A

14C

 XLM200 2HP Motor - 60 Cycle No N/A N/A N/A

15

 UNAS 1 1/2"" Union Assembly No N/A N/A N/A
