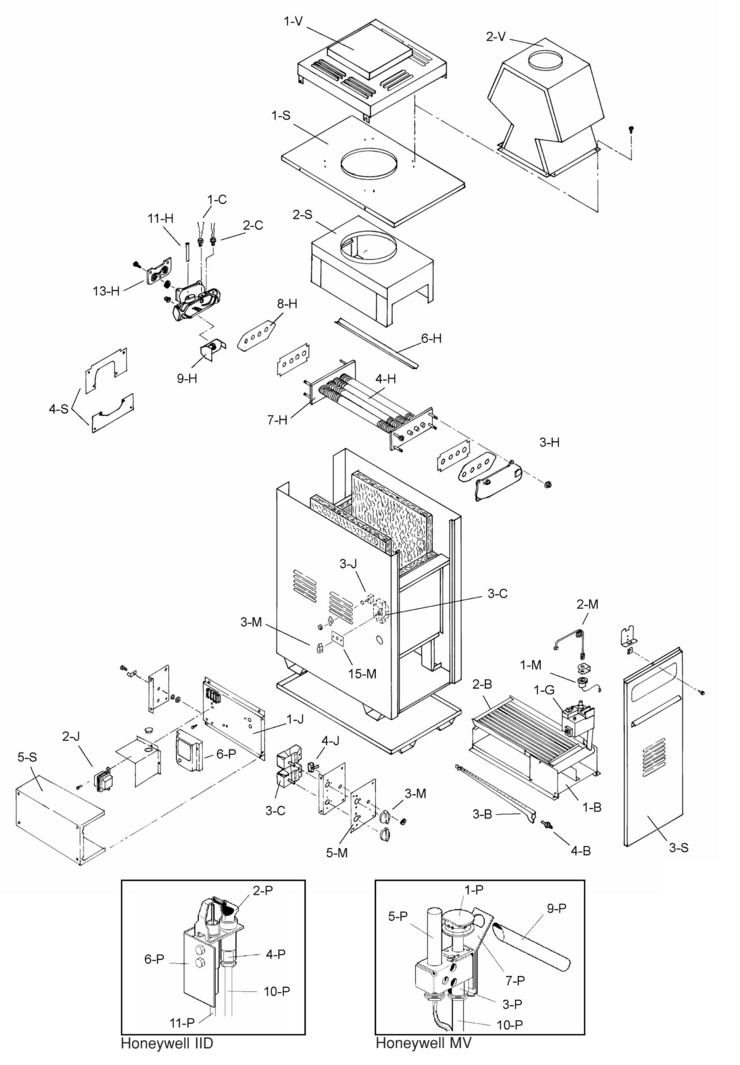

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 153



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	008091F	PRV125 PSI (Not Shown)	Yes	1 Day(s)	$47.75
	004690F	Natural Gas to Propane Gas Standing Pilot (b)	No	N/A	N/A	N/A
	004691F	Propane Gas to Natural Gas Standing Pilot (b)	Yes	1 Day(s)	$112.29
1-H	002431F	Heat Exchanger Assy. (Complete)	No	N/A	N/A	N/A
1-R	000992F	Refractory Kit	Yes	1 Day(s)	$200.71
1-P	002003F	Pilot Natural Gas IID	Yes	1 Day(s)	$68.08
1-P	600575B	Pilot Propane Gas Standing	Yes	1 Day(s)	$74.27
1-P	600525B	Pilot Natural Gas Standing	Yes	1 Day(s)	$75.15
1-J	004029F	J-Box (IID Unit)	No	N/A	N/A	N/A
1-G	003900F	Combination Valve 1/2"" Natural Gas IID	Yes	1 Day(s)	$257.29
1-G	003899F	Combination Valve 1/2"" Propane Gas	Yes	1 Day(s)	$257.29
1-G	003898F	Combination Valve 1/2"" Natural Gas	Yes	1 Day(s)	$257.29
1-B	001990F	Burner Tray w/o Burners (Sea Level) (a)	Yes	1 Day(s)	$459.77
1-V	1235	Stackless Top Kit (Outdoor)	No	N/A	N/A	N/A
1-C	600892B	High Limit 135 F	No	N/A	N/A	N/A
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-S	002007F	Jacket Top	Yes	1 Day(s)	$54.82
1-B	001989F	Burner Tray w/Burners (Sea Level) (a)	Yes	1 Day(s)	$473.91
2-S	002008F	Flue Collector	Yes	1 Day(s)	$109.64
2-R	001057F	Refractory Retainer Kit	Yes	1 Day(s)	$58.98
2-V	785	Draft Hood Kit (Indoor)	No	N/A	N/A	N/A
2-M	003271F	Pressure Switch Tube Assy.	Yes	1 Day(s)	$32.71
2-C	600893B	High Limit 140 F	No	N/A	N/A	N/A
2-J	006736F	Transformer	Yes	1 Day(s)	$58.36
2-H	002434F	Inlet/Outlet Header - Spa-Pak Model	No	N/A	N/A	N/A
2-B	001991F	Burner Hold Down Kit	Yes	1 Day(s)	$31.83
2-H	002435F	Inlet/Outlet Header - Gemini Model	No	N/A	N/A	N/A
3-C	003346F	Thermostat Control	Yes	1 Day(s)	N/A	N/A
3-H	002437F	Return Header	Yes	1 Day(s)	N/A	N/A
3-P	003901F	Pilot Orifice Natural Gas Standing	Yes	1 Day(s)	$7.07
3-S	001830F	Door Assy.	No	N/A	N/A	N/A
3-M	006885F	Thermostat Knob	Yes	1 Day(s)	N/A	N/A
3-P	003902F	Pilot Orifice Propane Gas Standing	Yes	1 Day(s)	$7.07
3-B	301210	Burner	Yes	1 Day(s)	$13.20
3-J	650761	Toggle Switch (Single Thermostat)	Yes	1 Day(s)	$13.20
4-B	350083F	Burner Orifice Propane Gas #57 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-S	002011F	Access Panel Group	No	N/A	N/A	N/A
4-B	350080F	Burner Orifice Natural Gas #51 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-J	650553F	Toggle Switch (Dual Thermostat) - Gemini Model only	No	N/A	N/A	N/A
4-H	002439F	Tube Bundle	Yes	1 Day(s)	$410.25
4-M	006886F	Knob Stop	Yes	1 Day(s)	N/A	N/A
4-P	003903F	Pilot Orifice Natural Gas IID	Yes	1 Day(s)	$7.07
5-S	-	J- Box Sheetmetal	No	N/A	N/A	N/A
5-P	600019B	Pilot Generator (Standing Pilot Only)	Yes	1 Day(s)	$53.05
5-M	-	Dial Plate IID Dual	No	N/A	N/A	N/A
5-H	002440F	Heat Exchange Tube	Yes	1 Day(s)	$95.49
5-M	-	Dial Plate IID Dual	No	N/A	N/A	N/A
5-M	-	Dial Plate IID Dual	No	N/A	N/A	N/A
6-P	004817B	Ignition Control (IID Pilot Only)	No	N/A	N/A	N/A
6-H	004055F	Baffle Kit	Yes	1 Day(s)	$26.53
7-P	006054F	Pilot Mounting Bracket Standing	Yes	1 Day(s)	$36.25
7-H	001056F	Bolt Kit	Yes	1 Day(s)	$36.25
8-H	800075B	Header Gasket	Yes	1 Day(s)	$17.68
8-P	006055F	Pilot Mounting Bracket IID	Yes	1 Day(s)	$44.21
9-P	52797	Lighter Tube (Standing Pilot Only)	No	N/A	N/A	N/A
9-H	053242B	Unitherm Governor	Yes	1 Day(s)	$99.03
10-P	400275	Pilot Tube	No	N/A	N/A	N/A
10-H	500719	Drain Valve	Yes	1 Day(s)	N/A	N/A
11-P	006088B	Hi Tension Wire	Yes	1 Day(s)	$16.80
11-H	007211F	Sensor Well	Yes	1 Day(s)	N/A	N/A
12-H	300203	Well Retaining Clip	Yes	1 Day(s)	$0.88
13-H	002432F	Inlet/Outlet Flange	Yes	1 Day(s)	N/A	N/A
14-H	800013B	Flange Gasket	Yes	1 Day(s)	$6.19
