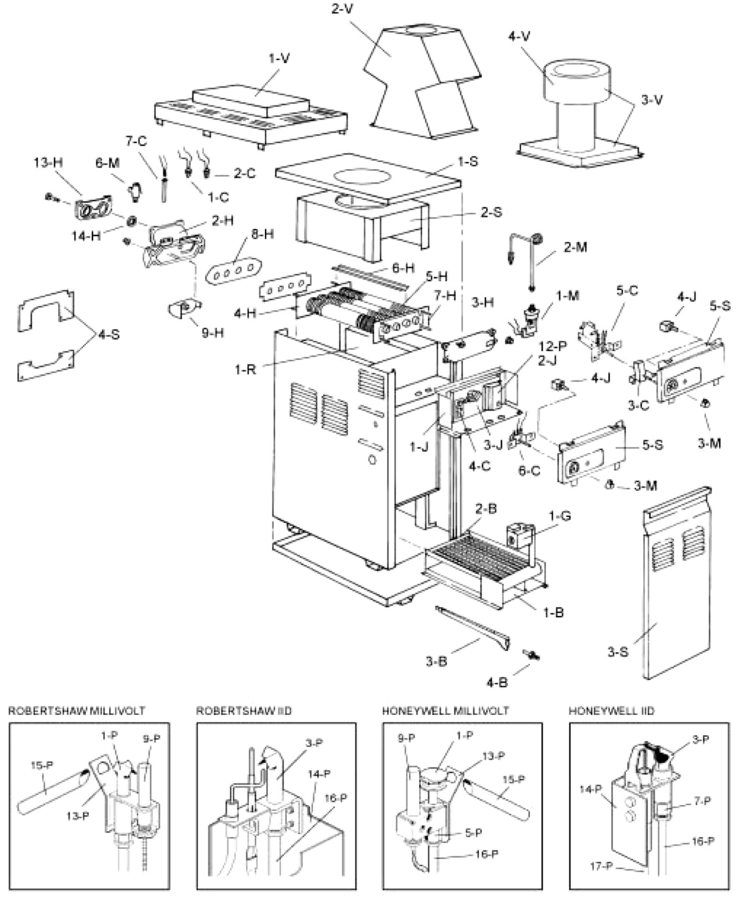

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 155A



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	004690B	Natural Gas to Propane Gas Standing Pilot (d)	Yes	1 Day(s)	$84.88
	004691F	Propane Gas to Natural Gas Standing Pilot (d)	Yes	1 Day(s)	$112.29
1-G	003900F	Combination Valve Natural Gas IID	Yes	1 Day(s)	$257.29
1-G	004306F	Combination Valve Propane Gas IID	Yes	1 Day(s)	$247.57
1-H	002431F	Heat Exchange Assy. (Complete) - Cast Iron only	No	N/A	N/A	N/A
1-J	003790F	Control Box IID w/o Thermostat Natural Gas	Yes	1 Day(s)	$502.21
1-J	004309F	Control Box IID w/o Thermostat Propane Gas	Yes	1 Day(s)	$360.74
1-S	002007F	Jacket Top	Yes	1 Day(s)	$54.82
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-P	600525B	Pilot Natural Gas MV	Yes	1 Day(s)	$75.15
1-P	600575B	Pilot Propane Gas MV	Yes	1 Day(s)	$74.27
1-R	000992F	Refractory Kit	Yes	1 Day(s)	$200.71
1-V	3710	Stackless Top (Outdoor)	Yes	1 Day(s)	$107.45
1-G	003899F	Combination Valve Propane Gas MV	Yes	1 Day(s)	$257.29
1-G	003898F	Combination Valve Natural Gas MV	Yes	1 Day(s)	$257.29
1-B	004851F	Burner Tray w/Gas Valve PRO IID	Yes	1 Day(s)	$824.93
1-B	001990F	Burner Tray w/o Burners (Sea Level) (a)	Yes	1 Day(s)	$459.77
1-B	004849F	Burner Tray w/Gas Valve NAT IID	Yes	1 Day(s)	$879.75
1-B	004848F	Burner Tray w/Gas Valve NAT STG	Yes	1 Day(s)	$829.35
1-B	001989F	Burner Tray w/Burners (Sea Level) (a)	Yes	1 Day(s)	$473.91
1-B	004850F	Burner Tray w/Gas Valve PRO STG	Yes	1 Day(s)	$829.35
1-C	600892B	High Limit 135 F	No	N/A	N/A	N/A
2-J	004818B	Ignition Control IID Pro	No	N/A	N/A	N/A
2-R	002006F	Refractory Retainer Kit	Yes	1 Day(s)	$69.85
2-J	004817B	Ignition Control IID Natural Gas	No	N/A	N/A	N/A
2-H	002435F	Inlet/Outlet Header - Cast Iron	No	N/A	N/A	N/A
2-H	002434F	Inlet/Outlet Header - Premium Bronze	No	N/A	N/A	N/A
2-S	002008F	Flue Collector	Yes	1 Day(s)	$109.64
2-M	003271F	Pressure Switch Tube Assy.	Yes	1 Day(s)	$32.71
2-B	001991F	Burner Hold Down Kit	Yes	1 Day(s)	$31.83
2-V	3723	Drafthood (Indoor)	Yes	1 Day(s)	$67.72
2-C	600893B	High Limit 140 F	No	N/A	N/A	N/A
3-S	002010F	Door Assy.	Yes	1 Day(s)	$121.13
3-J	006736F	Transformer 120/240/2 4V	Yes	1 Day(s)	$58.36
3-B	301210	Burner	Yes	1 Day(s)	$13.20
3-M	006885F	Thermostat Knob	Yes	1 Day(s)	N/A	N/A
3-C	004614F	Thermostat Control MV (Mechanical) - Cast Iron	No	N/A	N/A	N/A
3-P	002003F	Pilot Propane Gas IID	Yes	1 Day(s)	$68.08
3-P	002003F	Pilot Propane Gas IID	Yes	1 Day(s)	$68.08
3-H	002437F	Return Header - Cast Iron only	Yes	1 Day(s)	N/A	N/A
3-C	003346F	Thermostat Control MV (Mechanical) - Premium Bronze	Yes	1 Day(s)	N/A	N/A
4-S	004890F	Access Panel Group	Yes	1 Day(s)	$53.05
4-M	006886F	Knob Stop	Yes	1 Day(s)	N/A	N/A
4-V	951018	Outdoor Stack	No	N/A	N/A	N/A
4-J	650761	Toggle Switch	Yes	1 Day(s)	$13.20
4-B	350079F	Burner Orifice Natural Gas #50 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-C	005086B	PC Board	Yes	1 Day(s)	$200.71
4-B	350083F	Burner Orifice Propane Gas #57 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-H	002439F	Tube Bundle	Yes	1 Day(s)	$410.25
5-P	003901F	Pilot Orifice Natural Gas MV	Yes	1 Day(s)	$7.07
5-M	900741	Dial Plate Std. - Premium Bronze	Yes	1 Day(s)	$21.13
5-P	003902F	Pilot Orifice Propane Gas MV	Yes	1 Day(s)	$7.07
5-M	900749	Dial Plate IID - Cast Iron	Yes	1 Day(s)	$14.08
5-M	900742	Dial Plate IID - Premium Bronze	Yes	1 Day(s)	$23.77
5-M	900748	Dial Plate Std. - Cast Iron	Yes	1 Day(s)	$12.32
5-S	003789F	Control Panel IID Pilot	Yes	1 Day(s)	$58.36
5-S	003788F	Control Panel Standing Pilot	Yes	1 Day(s)	$58.36
5-H	002440F	Heat Exhange Tube (b)	Yes	1 Day(s)	$95.49
5-C	005089B	PC Board	No	N/A	N/A	N/A
6-M	501507F	PRV-75 PSI	Yes	1 Day(s)	$25.64
6-C	005087B	Potentiometer	Yes	1 Day(s)	$36.25
6-C	005087B	Potentiometer	Yes	1 Day(s)	$36.25
6-H	002000F	Baffle Kit (c)	Yes	1 Day(s)	$45.09
7-H	001056F	Bolt Kit	Yes	1 Day(s)	$36.25
7-P	003903F	Pilot Orifice Natural Gas IID	Yes	1 Day(s)	$7.07
7-M	053868F	Deliming Kit	No	N/A	N/A	N/A
7-C	005088B	Temperature Sensor	Yes	1 Day(s)	$56.59
7-P	004308F	Pilot Orifice Pro IID	Yes	1 Day(s)	$7.07
7-C	005088B	Temperature Sensor	Yes	1 Day(s)	$56.59
8-C	005391F	Thermostat Control MV (Solid State)	Yes	1 Day(s)	$244.03
8-M	004013F	Wire Harness IID	Yes	1 Day(s)	$80.46
8-H	800075B	Header Gasket	Yes	1 Day(s)	$17.68
8-M	004012F	Wire Harness Std.	Yes	1 Day(s)	$50.40
9-H	053242B	Unitherm Governor	Yes	1 Day(s)	$99.03
9-C	005389F	Thermostat Control IID (Solid State)	Yes	1 Day(s)	$221.04
9-P	600019B	Pilot Generator MV	Yes	1 Day(s)	$53.05
10-H	500719	Drain Valve	Yes	1 Day(s)	N/A	N/A
11-H	007211F	Sensor Well	Yes	1 Day(s)	N/A	N/A
12-H	300203	Well Retaining Clip	Yes	1 Day(s)	$0.88
12-P	004817B	Ignition Control IID Natural Gas	No	N/A	N/A	N/A
12-P	004818B	Ignition Control IID Pro	No	N/A	N/A	N/A
13-H	002432F	Inlet/Outlet Flange	Yes	1 Day(s)	N/A	N/A
13-P	006054F	Pilot Mounting Bracket MV	Yes	1 Day(s)	$36.25
14-P	006055F	Pilot Mounting Bracket IID	Yes	1 Day(s)	$44.21
14-H	800013B	Flange Gasket	Yes	1 Day(s)	$6.19
15-P	52797	Lighter Tube (MV Units Only)	No	N/A	N/A	N/A
16-P	400607	Pilot Tube	Yes	1 Day(s)	$3.52
17-P	006088B	Hi Tension Wire IID	Yes	1 Day(s)	$16.80
