SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

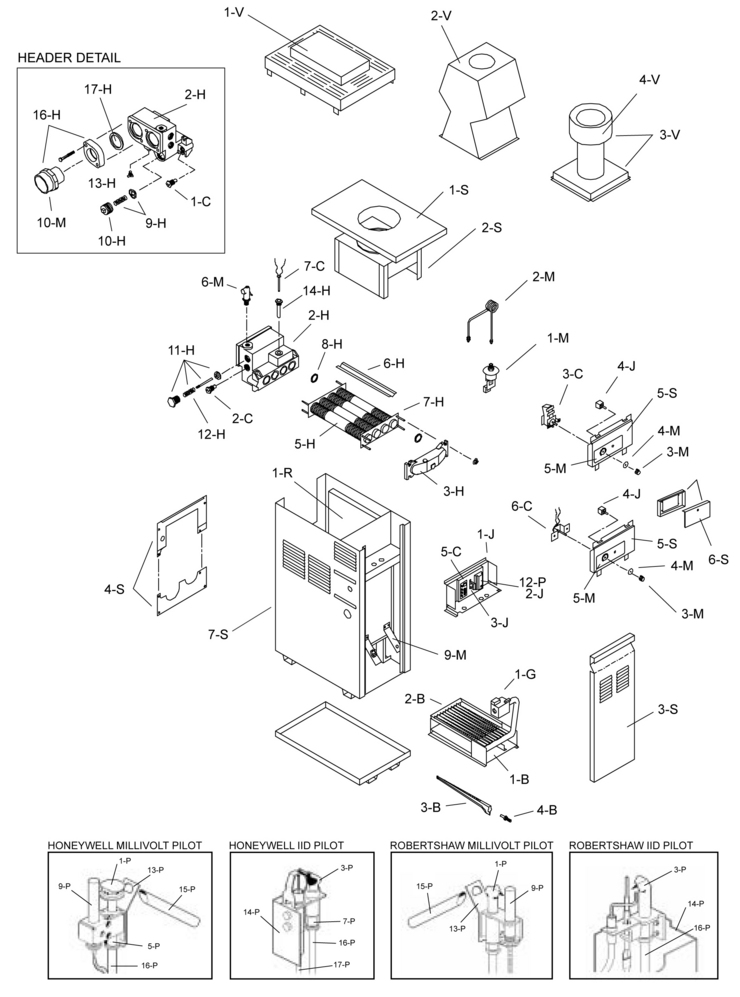

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 155B/C



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	004691F	Propane Gas to Natural Gas Standing Pilot (d)	Yes	1 Day(s)	$112.29
	004690B	Natural Gas to Propane Gas Standing Pilot (d)	Yes	1 Day(s)	$84.88
1-J	004309F	Control Box I ID w/o Thermostat Propane Gas	Yes	1 Day(s)	$360.74
1-S	002007F	Jacket Top	Yes	1 Day(s)	$54.82
1-G	003898F	Combination Valve Natural Gas MV	Yes	1 Day(s)	$257.29
1-G	003899F	Combination Valve Propane Gas MV	Yes	1 Day(s)	$257.29
1-G	003900F	Combination Valve Natural Gas IID	Yes	1 Day(s)	$257.29
1-G	004306F	Combination Valve Propane Gas IID	Yes	1 Day(s)	$247.57
1-H	004886F	Heat Exchange Assy. (Complete) - Premium Bronze	Yes	1 Day(s)	$1098.14
1-H	004962F	Heat Exchange Assy. (Complete) - Cast Iron	Yes	1 Day(s)	$991.15
1-R	000992F	Refractory Kit	Yes	1 Day(s)	$200.71
1-P	600575B	Pilot Propane Gas MV	Yes	1 Day(s)	$74.27
1-P	600525B	Pilot Natural Gas MV	Yes	1 Day(s)	$75.15
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-J	003790F	Control Box I ID w/o Thermostat Natural Gas	Yes	1 Day(s)	$502.21
1-V	3710	Stackless Top (Outdoor)	Yes	1 Day(s)	$107.45
1-B	004849F	Burner Tray w/Gas Valve NAT IID	Yes	1 Day(s)	$879.75
1-B	004850F	Burner Tray w/Gas Valve PRO STG	Yes	1 Day(s)	$829.35
1-B	004848F	Burner Tray w/Gas Valve NAT STG	Yes	1 Day(s)	$829.35
1-B	007332F	Burner Tray w/o Bruners & (1) piece manifold (Sea level)	Yes	1 Day(s)	$459.77
1-B	004851F	Burner Tray w/Gas Valve PRO IID	Yes	1 Day(s)	$824.93
1-B	001990F	Burner Tray w/o Burners (Sea Level) (a)	Yes	1 Day(s)	$459.77
1-C	600892B	High Limit 135 F	No	N/A	N/A	N/A
1-B	007331F	Burner Tray w/Burners & (1) piece manifold (Sea level)	Yes	1 Day(s)	$473.91
1-B	001989F	Burner Tray w/Burners (Sea Level) (a)	Yes	1 Day(s)	$473.91
2-M	003271F	Pressure Switch Tube Assy.	Yes	1 Day(s)	$32.71
2-J	004818B	Ignition Control IID Pro	No	N/A	N/A	N/A
2-J	004817B	Ignition Control IID Natural Gas	No	N/A	N/A	N/A
2-V	3723	Drafthood (Indoor)	Yes	1 Day(s)	$67.72
2-R	002006F	Refractory Retainer Kit	Yes	1 Day(s)	$69.85
2-B	001991F	Burner Hold Down Kit	Yes	1 Day(s)	$31.83
2-S	002008F	Flue Collector	Yes	1 Day(s)	$109.64
2-H	004887F	Inlet/Outlet Header - Premium Bronze	Yes	1 Day(s)	$549.07
2-C	600893B	High Limit 140 F	No	N/A	N/A	N/A
2-H	004963F	Inlet/Outlet Header - Cast Iron	Yes	1 Day(s)	$356.32
3-B	301210	Burner	Yes	1 Day(s)	$13.20
3-J	006736F	Transformer 120/240/24V	Yes	1 Day(s)	$58.36
3-C	003346F	Thermostat Control MV (Mechanical)	Yes	1 Day(s)	N/A	N/A
3-M	006885F	Thermostat Knob	Yes	1 Day(s)	N/A	N/A
3-S	002010F	Door Assy.	Yes	1 Day(s)	$121.13
3-P	002003F	Pilot Pro IID	Yes	1 Day(s)	$68.08
3-P	002003F	Pilot Pro IID	Yes	1 Day(s)	$68.08
3-H	004888F	Return Header - Premium Bronze	Yes	1 Day(s)	$133.51
3-H	004964F	Return Header - Cast Iron	Yes	1 Day(s)	$75.15
4-M	006886F	Knob Stop	Yes	1 Day(s)	N/A	N/A
4-V	951018	Outdoor Stack	No	N/A	N/A	N/A
4-J	650761	Toggle Switch	Yes	1 Day(s)	$13.20
4-S	004890F	Access Panel Group	Yes	1 Day(s)	$53.05
4-B	350079F	Burner Orifice Natural Gas #50 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-B	350083F	Burner Orifice Propane Gas #57 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-C	005389F	Thermostat Control IID (Solid State)	Yes	1 Day(s)	$221.04
4-H	004896F	Tube Bundle	Yes	1 Day(s)	$410.25
5-M	900741	Dial Plate Std. - Premium Bronze	Yes	1 Day(s)	$21.13
5-S	003788F	Control Panel Standing Pilot	Yes	1 Day(s)	$58.36
5-P	003901F	Pilot Orifice Natural Gas MV	Yes	1 Day(s)	$7.07
5-P	003902F	Pilot Orifice Propane Gas MV	Yes	1 Day(s)	$7.07
5-M	900749	Dial Plate IID - Cast Iron	Yes	1 Day(s)	$14.08
5-M	900742	Dial Plate IID - Premium Bronze	Yes	1 Day(s)	$23.77
5-M	900748	Dial Plate Std. - Cast Iron	Yes	1 Day(s)	$12.32
5-H	001999F	Heat Exhange Tube (b)	Yes	1 Day(s)	$95.49
5-C	005086B	PC Board	Yes	1 Day(s)	$200.71
5-S	003789F	Control Panel IID Pilot	Yes	1 Day(s)	$58.36
6-H	001622F	Baffle Kit (c)	Yes	1 Day(s)	$47.75
6-S	6492	Poolstat Control Cover	Yes	1 Day(s)	$58.98
6-C	005087B	Potentiometer	Yes	1 Day(s)	$36.25
6-M	501507F	PRV-75 PSI	Yes	1 Day(s)	$25.64
7-S	009174F	Jacket Left	Yes	1 Day(s)	$88.42
7-H	007910F	Stud Bolt Kit	Yes	1 Day(s)	$34.48
7-C	005088B	Temperature Sensor	Yes	1 Day(s)	$56.59
7-P	004308F	Pilot Orifice Pro IID	Yes	1 Day(s)	$7.07
7-P	003903F	Pilot Orifice Natural Gas IID	Yes	1 Day(s)	$7.07
7-M	052871F	Deliming Kit	Yes	1 Day(s)	$182.14
7-S	009175F	Jacket Right	Yes	1 Day(s)	$75.15
7-S	009176F	Jacket Side	Yes	1 Day(s)	$77.81
7-H	004889F	Carriage Bolt Kit	Yes	1 Day(s)	$36.25
8-H	800086B	Header Gasket	Yes	1 Day(s)	$17.68
8-M	004012F	Wire Harness Std.	Yes	1 Day(s)	$50.40
8-M	004013F	Wire Harness IID	Yes	1 Day(s)	$80.46
9-H	062234B	Unitherm Governor	Yes	1 Day(s)	$50.40
9-P	600019B	Pilot Generator MV	Yes	1 Day(s)	$53.05
9-M	005899F	Thermal Fuse	Yes	1 Day(s)	$25.64
10-H	850254	U.G. Retainer Spring	Yes	1 Day(s)	$1.76
10-M	005393F	CPVC Adapter	Yes	1 Day(s)	$43.32
11-H	062235B	Bypass Valve	Yes	1 Day(s)	$26.53
12-P	004818B	Ignition Control IID Pro	No	N/A	N/A	N/A
12-P	004817B	Ignition Control IID Natural Gas	No	N/A	N/A	N/A
12-H	850252	Bypass Spring	Yes	1 Day(s)	$2.64
13-H	500719	Drain Valve	Yes	1 Day(s)	N/A	N/A
13-P	303730	Pilot Mounting Bracket MV	Yes	1 Day(s)	$8.80
13-P	006054F	Pilot Mounting Bracket MV (Plus Models)	Yes	1 Day(s)	$36.25
13-P	304670	Pilot Mounting Bracket IID	Yes	1 Day(s)	$12.32
14-H	003765F	Sensor Well	Yes	1 Day(s)	$40.67
14-P	006055F	Pilot Mounting Bracket IID (Plus Models)	Yes	1 Day(s)	$44.21
15-H	300203	Well Retaining Clip	Yes	1 Day(s)	$0.88
15-P	52797	Lighter Tube (MV Units Only)	No	N/A	N/A	N/A
16-P	004078F	Pilot Tube	Yes	1 Day(s)	$36.25
16-H	003766F	Inlet & Outlet Flange	Yes	1 Day(s)	$61.89
17-H	800080B	Flange Gasket 2"" Connections	Yes	1 Day(s)	$7.96
17-P	006088B	Hi Tension Wire IID	Yes	1 Day(s)	$16.80
17-P	007864F	Hi Tension Wire IID w/Pilot Electrode	Yes	1 Day(s)	$66.31
