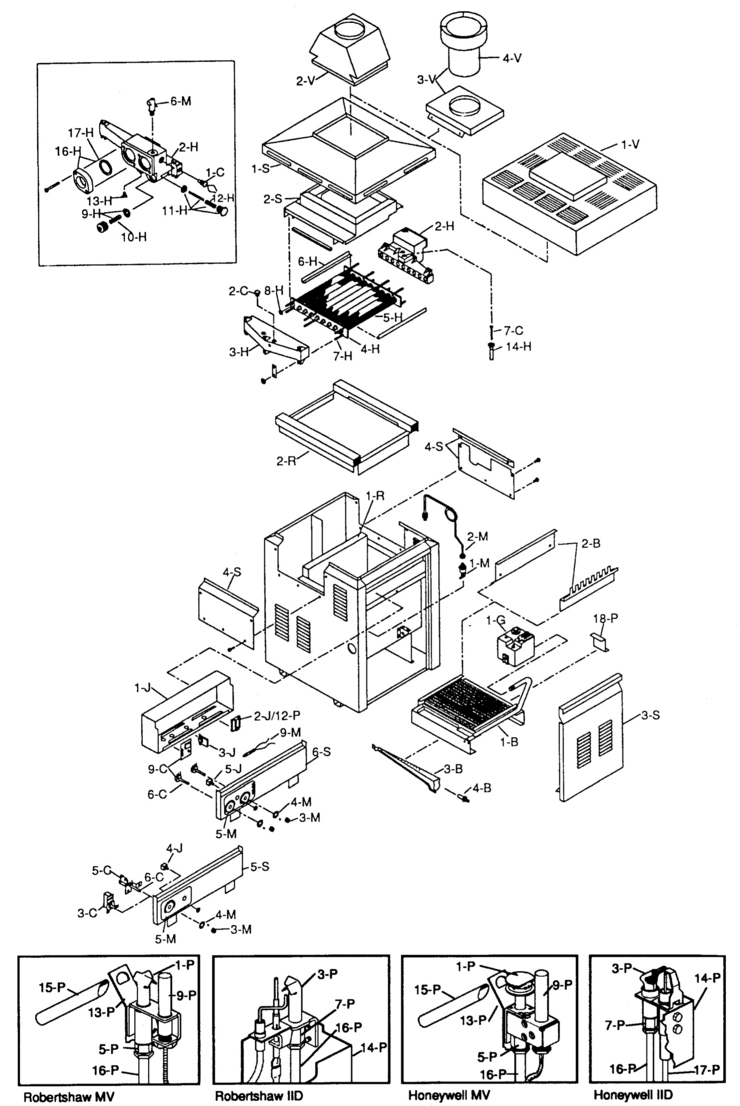

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 185B/C-405B/C



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	004932F	Single Mechanical Stat to Dual Solid State (b)	No	N/A	N/A	N/A
	-	Thermostat Conversions MV Only	No	N/A	N/A	N/A
	004691F	Propane Gas to Natural Gas MV Pilot (b)	Yes	1 Day(s)	$112.29
	004690B	Natural Gas to Propane Gas MV Pilot (b)	Yes	1 Day(s)	$84.88
	004404F	Single Solid State to Dual Solid State (b)	No	N/A	N/A	N/A
1-G	003899F	Combination Valve - Propane Gas MV	Yes	1 Day(s)	$257.29
1-G	003900F	Combination Valve - Natural Gas IID	Yes	1 Day(s)	$257.29
1-G	004306F	Combination Valve - Propane Gas IID	Yes	1 Day(s)	$247.57
1-H	003753F	Heat Exchange Assy. CI (Complete) - Model 265B/C	Yes	1 Day(s)	$1619.80
1-G	003898F	Combination Valve - Natural Gas MV	Yes	1 Day(s)	$257.29
1-J	005056F	Control Box IID w/o Thermostat Natural Gas	Yes	1 Day(s)	$393.46
1-S	002069F	Jacket Top - Model 405B/C	No	N/A	N/A	N/A
1-R	004429F	Refractory Kit - Model 265B/C	No	N/A	N/A	N/A
1-V	3711	Stackless Top (Outdoor) - Model 185B/C	Yes	1 Day(s)	$190.15
1-V	3712	Stackless Top (Outdoor) - Model 265B/C	Yes	1 Day(s)	$220.96
1-H	003754F	Heat Exchange Assy. CI (Complete) - Model 335B/C	Yes	1 Day(s)	$1701.14
1-H	003755F	Heat Exchange Assy. CI (Complete) - Model 405B/C	Yes	1 Day(s)	$1742.70
1-H	004052F	Heat Exchange Assy. BR (Complete) - Model 185B/C	Yes	1 Day(s)	$1774.53
1-J	005057F	Control Box IID w/o Thermostat Propane Gas	Yes	1 Day(s)	$419.98
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-P	600525B	Pilot Natural Gas MV	Yes	1 Day(s)	$75.15
1-P	600575B	Pilot Propane Gas MV	Yes	1 Day(s)	$74.27
1-R	004428F	Refractory Kit - Model 185B/C	No	N/A	N/A	N/A
1-R	004430F	Refractory Kit - Model 335B/C	No	N/A	N/A	N/A
1-R	004431F	Refractory Kit - Model 405B/C	No	N/A	N/A	N/A
1-S	002066F	Jacket Top - Model 185B/C	Yes	1 Day(s)	$90.67
1-S	002067F	Jacket Top - Model 265B/C	No	N/A	N/A	N/A
1-S	002068F	Jacket Top - Model 335B/C	No	N/A	N/A	N/A
1-H	003758F	Heat Exchange Assy. BR (Complete) - Model 405B/C	Yes	1 Day(s)	$2232.53
1-H	003757F	Heat Exchange Assy. BR (Complete) - Model 335B/C	Yes	1 Day(s)	$2105.21
1-H	003756F	Heat Exchange Assy. BR (Complete) - Model 265B/C	Yes	1 Day(s)	$2021.21
1-V	3713	Stackless Top (Outdoor) - Model 335B/C	Yes	1 Day(s)	$220.96
1-V	3714	Stackless Top (Outdoor) - Model 405B/C	Yes	1 Day(s)	$237.68
1-B	004386F	Burner Tray w/Burners (Sea Level) - Model 185B/C (a)	No	N/A	N/A	N/A
1-B	004866F	Burner Tray w/Gas Valve Propane Gas STG - Models 335B/C & 405B/C	Yes	1 Day(s)	$1225.46
1-B	004858F	Burner Tray w/Gas Valve Propane Gas STG - Model 265B/C only	Yes	1 Day(s)	$1076.92
1-B	004854F	Burner Tray w/Gas Valve Propane Gas STG - Model 185B/C only	No	N/A	N/A	N/A
1-B	004864F	Burner Tray w/Gas Valve Natural Gas STG - Model 405B/C	Yes	1 Day(s)	$1225.46
1-B	004860F	Burner Tray w/Gas Valve Natural Gas STG - Model 335B/C	Yes	1 Day(s)	$1129.08
1-B	004856F	Burner Tray w/Gas Valve Natural Gas STG - Model 265B/C	No	N/A	N/A	N/A
1-B	004852F	Burner Tray w/Gas Valve Natural Gas STG - Model 185B/C	Yes	1 Day(s)	$890.36
1-B	004393F	Burner Tray w/o Burner (Sea Level) - Model 405B/C (a)	No	N/A	N/A	N/A
1-B	004392F	Burner Tray w/o Burner (Sea Level) - Model 335B/C (a)	Yes	1 Day(s)	$318.30
1-B	004391F	Burner Tray w/o Burner (Sea Level) - Model 265B/C (a)	No	N/A	N/A	N/A
1-B	004390F	Burner Tray w/o Burner (Sea Level) - Model 185B/C (a)	Yes	1 Day(s)	$251.99
1-B	004389F	Burner Tray w/Burners (Sea Level) - Model 405B/C (a)	No	N/A	N/A	N/A
1-B	004388F	Burner Tray w/Burners (Sea Level) - Model 335B/C (a)	No	N/A	N/A	N/A
1-B	004387F	Burner Tray w/Burners (Sea Level) - Model 265B/C (a)	No	N/A	N/A	N/A
1-B	004853F	Burner Tray w/Gas Valve Natural Gas IID - Model 185B/C	No	N/A	N/A	N/A
1-B	004857F	Burner Tray w/Gas Valve Natural Gas IID - Model 265B/C	Yes	1 Day(s)	$1145.88
1-C	600892B	High Limit 135 F	No	N/A	N/A	N/A
1-H	003752F	Heat Exchange Assy. CI (Complete) - Model 185B/C	Yes	1 Day(s)	$1535.80
1-B	004867F	Burner Tray w/Gas Valve Propane Gas IID - Model 405B/C	Yes	1 Day(s)	$1296.19
1-B	004863F	Burner Tray w/Gas Valve Propane Gas IID - Model 335B/C	Yes	1 Day(s)	$1201.59
1-B	004859F	Burner Tray w/Gas Valve Propane Gas IID - Model 265B/C	Yes	1 Day(s)	$1145.88
1-B	004855F	Burner Tray w/Gas Valve Propane Gas IID - Model 185B/C	No	N/A	N/A	N/A
1-B	004861F	Burner Tray w/Gas Valve Natural Gas IID - Model 335B/C	No	N/A	N/A	N/A
1-B	004865F	Burner Tray w/Gas Valve Natural Gas IID - Model 405B/C	No	N/A	N/A	N/A
2-J	004817B	Ignition Control IID Natural Gas	No	N/A	N/A	N/A
2-R	001307F	Refractory Retainer Kit - Model 405B/C	Yes	1 Day(s)	N/A	N/A
2-V	003725F	Drafthood (Indoor) - Model 265B/C	No	N/A	N/A	N/A
2-M	003272F	Pressure Switch Tube Assy.	Yes	1 Day(s)	$32.71
2-V	3726	Drafthood (Indoor) - Model 335B/C	Yes	1 Day(s)	$215.68
2-S	002072F	Flue Collector - Model 335B/C	No	N/A	N/A	N/A
2-S	002071F	Flue Collector - Model 265B/C	No	N/A	N/A	N/A
2-S	002073F	Flue Collector - Model 405B/C	No	N/A	N/A	N/A
2-S	002070F	Flue Collector - Model 185B/C	No	N/A	N/A	N/A
2-R	001304F	Refractory Retainer Kit - Model 185B/C	Yes	1 Day(s)	N/A	N/A
2-R	001305F	Refractory Retainer Kit - Model 265B/C	Yes	1 Day(s)	N/A	N/A
2-R	001306F	Refractory Retainer Kit - Model 335B/C	Yes	1 Day(s)	N/A	N/A
2-V	3727	Drafthood (Indoor) - Model 405B/C	Yes	1 Day(s)	$237.68
2-V	003724F	Drafthood (Indoor) - Model 185B/C	No	N/A	N/A	N/A
2-B	004397F	Burner Spacer/Hold Down Kit - Model 405B/C	Yes	1 Day(s)	$79.58
2-H	003760F	Inlet/Outlet Header BR	Yes	1 Day(s)	$535.81
2-J	004818B	Ignition Control IID Propane Gas	No	N/A	N/A	N/A
2-H	003759F	Inlet/Outlet Header CI	Yes	1 Day(s)	$333.33
2-C	600893B	High Limit 140 F	No	N/A	N/A	N/A
2-B	004396F	Burner Spacer/Hold Down Kit - Model 335B/C	No	N/A	N/A	N/A
2-B	004395F	Burner Spacer/Hold Down Kit - Model 265B/C	Yes	1 Day(s)	$54.82
2-B	004394F	Burner Spacer/Hold Down Kit - Model 185B/C	No	N/A	N/A	N/A
3-M	800201	Thermostat Knob	No	N/A	N/A	N/A
3-C	600827B	Thermostat Control MV (Mechanical)	Yes	1 Day(s)	$118.48
3-P	002003F	Pilot Propane Gas IID	Yes	1 Day(s)	$68.08
3-V	004303F	Outdoor Stack w/Adapter (Outdoor) - Model 265B/C	No	N/A	N/A	N/A
3-P	002003F	Pilot Propane Gas IID	Yes	1 Day(s)	$68.08
3-H	002450F	Return Header CI	Yes	1 Day(s)	$97.26
3-B	301210	Burner	Yes	1 Day(s)	$13.20
3-V	004302F	Outdoor Stack w/Adapter (Outdoor) - Model 185B/C	No	N/A	N/A	N/A
3-H	002451F	Return Header BR	Yes	1 Day(s)	$166.22
3-S	004401F	Door Assy. - Model 405B/C	Yes	1 Day(s)	$164.62
3-S	004400F	Door Assy. - Model 335B/C	Yes	1 Day(s)	$158.46
3-V	004304F	Outdoor Stack w/Adapter (Outdoor) - Model 335B/C	No	N/A	N/A	N/A
3-S	004399F	Door Assy. - Model 265B/C	No	N/A	N/A	N/A
3-S	004398F	Door Assy. - Model 185B/C	No	N/A	N/A	N/A
3-J	005345F	Transformer 120/240/24V	No	N/A	N/A	N/A
3-V	004305F	Outdoor Stack w/Adapter (Outdoor) - Model 405B/C	No	N/A	N/A	N/A
4-V	951022F	Outdoor Stack - Model 405B/C	No	N/A	N/A	N/A
4-S	004403F	Access Panel Group	No	N/A	N/A	N/A
4-H	004674F	Tube Bundle - Model 405B/C	Yes	1 Day(s)	$896.55
4-V	951021F	Outdoor Stack - Model 335B/C	No	N/A	N/A	N/A
