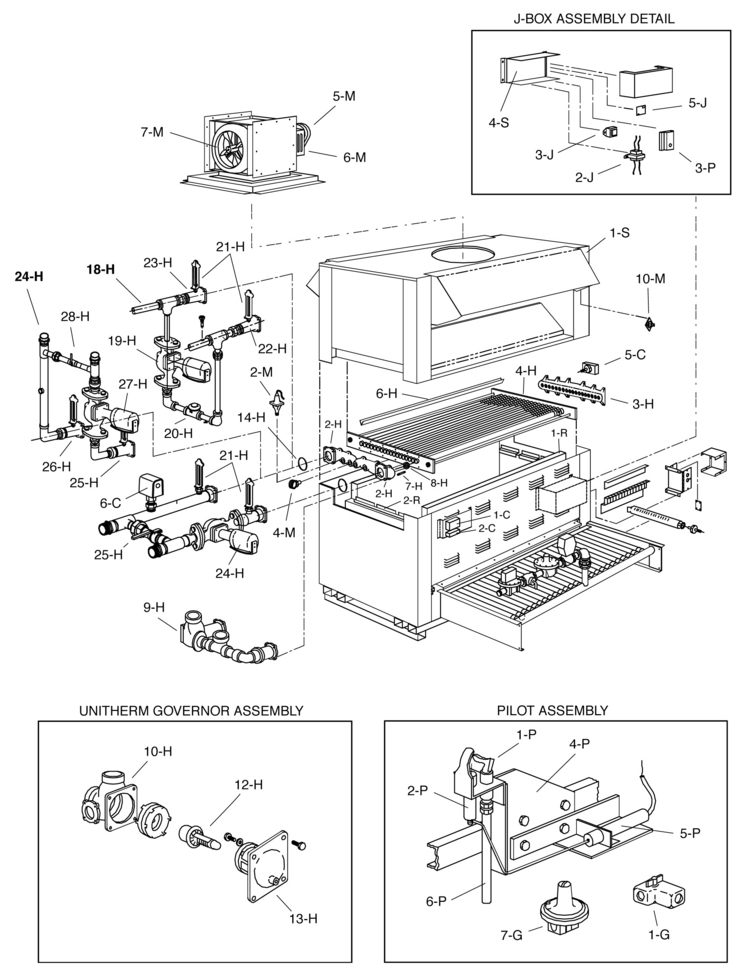

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 2100-4001



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1-J	002615F	J-Box - Models 3001, 3500 & 4001	No	N/A	N/A	N/A
1-H	001932F	Heat Exchanger Assy. (Complete) - Model 2100	Yes	1 Day(s)	$12862.89
1-J	002614F	J-Box - Models 2100 & 2500	No	N/A	N/A	N/A
1-R	001973F	Refractory Kit - Model 3001	No	N/A	N/A	N/A
1-R	001974F	Refractory Kit - Model 3500	No	N/A	N/A	N/A
1-R	001975F	Refractory Kit - Model 4001	No	N/A	N/A	N/A
1-R	001972F	Refractory Kit - Model 2500	No	N/A	N/A	N/A
1-G	007195F	Manual ""B"" Valve	No	N/A	N/A	N/A
1-S	002079F	Draft Hood Top Assy. - Model 2100	Yes	1 Day(s)	$2305.91
1-S	002080F	Draft Hood Top Assy. - Model 2500	Yes	1 Day(s)	$2473.90
1-H	001933F	Heat Exchanger Assy. (Complete) - Model 2500	Yes	1 Day(s)	$14004.35
1-H	001934F	Heat Exchanger Assy. (Complete) - Model 3001	Yes	1 Day(s)	$14867.30
1-J	005589F	J-Box with Pump Relay - Models 2100 & 2500	No	N/A	N/A	N/A
1-J	005590F	J-Box with Pump Relay - Models 3001, 3500 & 4001	No	N/A	N/A	N/A
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-S	002083F	Draft Hood Top Assy. - Model 4001	Yes	1 Day(s)	$3086.63
1-P	002084F	Pilot Natural Gas IID	No	N/A	N/A	N/A
1-P	002085F	Pilot Propane Gas IID	No	N/A	N/A	N/A
1-R	001971F	Refractory Kit - Model 2100	No	N/A	N/A	N/A
1-H	001936F	Heat Exchanger Assy. (Complete) - Model 4001	Yes	1 Day(s)	$18362.42
1-H	001935F	Heat Exchanger Assy. (Complete) - Model 3500	Yes	1 Day(s)	$17365.08
1-S	002081F	Draft Hood Top Assy. - Model 3001	Yes	1 Day(s)	$2671.96
1-S	002082F	Draft Hood Top Assy. - Model 3500	Yes	1 Day(s)	$2882.39
1-B	001904F	Burner Tray w/o Burners (Sea Level) - Model 3001 (a)	Yes	1 Day(s)	$1693.18
1-B	001900F	Burner Tray w/Burners (Sea Level) - Model 3500 (a)	Yes	1 Day(s)	$4649.84
1-B	001906F	Burner Tray w/o Burners (Sea Level) - Model 4001 (a)	Yes	1 Day(s)	$2164.45
1-B	001898F	Burner Tray w/Burners (Sea Level) - Model 2500 (a)	Yes	1 Day(s)	$3436.76
1-B	001903F	Burner Tray w/o Burners (Sea Level) - Model 2500 (a)	Yes	1 Day(s)	$1543.76
1-B	001902F	Burner Tray w/o Burners (Sea Level) - Model 2100 (a)	Yes	1 Day(s)	$1397.87
1-B	001901F	Burner Tray w/Burners (Sea Level) - Model 4001 (a)	Yes	1 Day(s)	$5182.11
1-C	010863F	Auto Dualstat (Thermostat and Hi Limit)	Yes	1 Day(s)	$351.90
1-B	001905F	Burner Tray w/o Burners (Sea Level) - Model 3500 (a)	Yes	1 Day(s)	$1999.99
1-B	001897F	Burner Tray w/Burners (Sea Level) - Model 2100 (a)	Yes	1 Day(s)	$2995.56
1-B	001899F	Burner Tray w/Burners (Sea Level) - Model 3001 (a)	Yes	1 Day(s)	$3967.27
2-H	001967F	Outlet Header	Yes	1 Day(s)	$846.15
2-H	001967F	Outlet Header	Yes	1 Day(s)	$846.15
2-J	006533F	Transformer	No	N/A	N/A	N/A
2-M	007758F	PRV 125 PSI - Model 2100	Yes	1 Day(s)	$69.85
2-P	600552	Pilot Orifice Natural Gas	No	N/A	N/A	N/A
2-M	007759F	PRV 125 PSI - Models 2500, 3001 & 3500	Yes	1 Day(s)	$160.92
2-M	500868	PRV 125 PSI - Model 4001	Yes	1 Day(s)	$255.29
2-B	001911F	Burner Spacer/Hold Down Bracket - Model 4001	Yes	1 Day(s)	$406.72
2-B	001907F	Burner Spacer/Hold Down Bracket - Model 2100	Yes	1 Day(s)	$263.48
2-B	001908F	Burner Spacer/Hold Down Bracket - Model 2500	Yes	1 Day(s)	$319.18
2-G	007933F	Manual ""A"" Valve	Yes	1 Day(s)	$145.89
2-R	001979F	Refractory Retainer Kit - Model 3500	Yes	1 Day(s)	$361.63
2-P	600894	Pilot Orifice Propane Gas	Yes	1 Day(s)	$14.08
2-R	001980F	Refractory Retainer Kit - Model 4001	Yes	1 Day(s)	$380.19
2-R	001978F	Refractory Retainer Kit - Model 3001	Yes	1 Day(s)	$353.67
2-R	001977F	Refractory Retainer Kit - Model 2500	Yes	1 Day(s)	$336.87
2-C	009554F	Manual High Limit 40-180 F	Yes	1 Day(s)	$222.81
2-B	001909F	Burner Spacer/Hold Down Bracket - Model 3001	Yes	1 Day(s)	$341.29
2-B	001910F	Burner Spacer/Hold Down Bracket - Model 3500	Yes	1 Day(s)	$380.19
2-R	001976F	Refractory Retainer Kit - Model 2100	Yes	1 Day(s)	$325.37
3-G	004096F	Auto On/Off Valve - Model 2500 only	Yes	1 Day(s)	$605.66
3-B	305846	Burner	Yes	1 Day(s)	$73.95
3-H	001970F	Return Header	Yes	1 Day(s)	$1129.97
3-G	004095F	Auto On/Off Valve - Model 2100 only	Yes	1 Day(s)	$412.91
3-P	004818B	Ignition Control	No	N/A	N/A	N/A
3-J	007377F	Relay SPDT 24V	Yes	1 Day(s)	N/A	N/A
3-J	008145F	Relay SPDT 120V (b)	No	N/A	N/A	N/A
4-G	600693	Combination Valve Propane Gas - Models 2100 & 2500	Yes	1 Day(s)	$448.08
4-J	650958	Toggle Switch DPST	Yes	1 Day(s)	$7.92
4-J	008079F	Toggle Switch	No	N/A	N/A	N/A
4-M	007399F	T & P Gauge	Yes	1 Day(s)	$61.01
4-C	007188F	High Pressure Switch (b)	Yes	1 Day(s)	$134.39
4-B	351053F	Burner Orifice Propane Gas #36 (Sea Level) (a)	Yes	1 Day(s)	$7.07
4-B	350791F	Burner Orifice Natural Gas #17 (Sea Level) (a)	Yes	1 Day(s)	$7.07
4-H	001942F	Tube Bundle - Model 2100	Yes	1 Day(s)	$9320.03
4-H	001943F	Tube Bundle - Model 2500	Yes	1 Day(s)	$10451.76
4-G	600633	Combination Valve Natural Gas - Models 2100 & 2500	Yes	1 Day(s)	$488.57
4-H	001945F	Tube Bundle - Model 3500	Yes	1 Day(s)	$13778.89
4-H	001946F	Tube Bundle - Model 4001	Yes	1 Day(s)	$14616.20
4-P	305847	Pilot Mounting Bracket	Yes	1 Day(s)	$10.56
4-H	001944F	Tube Bundle - Model 3001	Yes	1 Day(s)	$11307.64
5-P	64839	Ignition Rod	Yes	1 Day(s)	$24.65
5-M	951155F	Power Vent Motor - Models 2100 & 2500	No	N/A	N/A	N/A
5-J	004675F	Pump Relay PC Board	No	N/A	N/A	N/A
5-H	001954F	Heat Exchange Tube - Model 3001	Yes	1 Day(s)	$720.60
5-H	001955F	Heat Exchange Tube - Model 3500	Yes	1 Day(s)	$842.61
5-H	001952F	Heat Exchange Tube - Model 2100	Yes	1 Day(s)	$530.50
5-H	001956F	Heat Exchange Tube - Model 4001	Yes	1 Day(s)	$899.20
5-M	951156F	Power Vent Motor - Models 3001, 3500 & 4001	No	N/A	N/A	N/A
5-H	001953F	Heat Exchange Tube - Model 2500	Yes	1 Day(s)	$610.96
5-G	600454	Valve Actuator Body (b)	Yes	1 Day(s)	$760.59
5-C	006202F	Low Water Cut Off (Cal Code Only)	Yes	1 Day(s)	$430.59
6-H	001957F	Baffle Kit - Model 2100	Yes	1 Day(s)	$358.09
6-H	001958F	Baffle Kit - Model 2500	Yes	1 Day(s)	$395.22
6-H	001961F	Baffle Kit - Model 4001	Yes	1 Day(s)	$493.37
6-H	001960F	Baffle Kit - Model 3500	Yes	1 Day(s)	$473.03
6-M	951158F	Power Vent Motor Drive Belt	No	N/A	N/A	N/A
6-H	001959F	Baffle Kit - Model 3001	Yes	1 Day(s)	$428.82
6-P	400013	Pilot Tube (Specify Length)	Yes	1 Day(s)	$0.88
6-C	007142F	Flow Switch	Yes	1 Day(s)	$216.62
6-G	003614F	Regulator Propane Gas (b)	Yes	1 Day(s)	$1439.43
6-G	600078	Regulator Natural Gas (b)	Yes	1 Day(s)	$1404.97
7-P	002663B	High Tension Wire	Yes	1 Day(s)	$30.95
7-M	951160F	Power Vent Discharge Fan - Models 3001, 3500 & 4001	No	N/A	N/A	N/A
7-M	951159F	Power Vent Discharge Fan - Models 2100 & 2500	No	N/A	N/A	N/A
7-C	007907F	Temp Controller 40-180 °F (not shown)	Yes	1 Day(s)	$206.01
