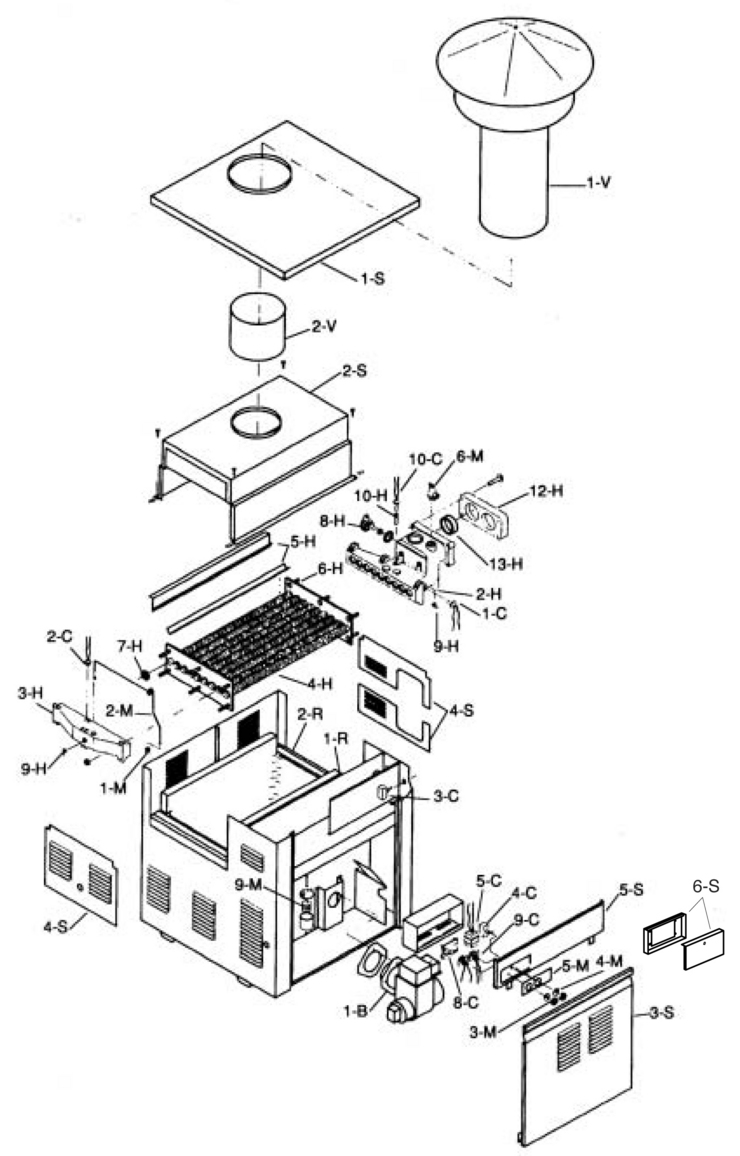

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 315A



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	601167	Manual Reset Thermostat (Not Shown)	No	N/A	N/A	N/A
1-B	004729F	Burner w/Elec. Ignition (a)	Yes	1 Day(s)	$1618.89
1-R	004740F	Refractory/Chamber	No	N/A	N/A	N/A
1-S	004742F	Jacket Top	No	N/A	N/A	N/A
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-H	004731F	Heat Exchanger (Complete)	Yes	1 Day(s)	$3512.43
1-V	4719	Outdoor Stack 9""	Yes	1 Day(s)	$99.14
1-C	600892B	High Limit 135°F	No	N/A	N/A	N/A
2-H	004732F	Inlet/Outlet Header	No	N/A	N/A	N/A
2-V	004747F	Inner Flue Sleeve 8""	Yes	1 Day(s)	$33.45
2-R	004741F	Refractory Chamber Retainer	Yes	1 Day(s)	$45.78
2-M	003272F	Pressure Switch Tube Assembly	Yes	1 Day(s)	$32.71
2-C	600893B	High Limit 140°F	No	N/A	N/A	N/A
2-S	004743F	Flue Collector	Yes	1 Day(s)	N/A	N/A
3-H	004733F	Return Header	Yes	1 Day(s)	$183.10
3-M	006885F	Thermostat Knob	Yes	1 Day(s)	N/A	N/A
3-S	004744F	Door Assembly	No	N/A	N/A	N/A
3-C	008079F	Main Power On/Off Switch SPST	No	N/A	N/A	N/A
4-C	650760	Thermostat On/Off/On Switch SPDT	Yes	1 Day(s)	$10.56
4-M	006886F	Knobstop	Yes	1 Day(s)	N/A	N/A
4-H	004734F	Tube Bundle	Yes	1 Day(s)	$1889.14
4-S	004745F	Access Panel Group	Yes	1 Day(s)	$58.10
5-S	004746F	Control Panel	No	N/A	N/A	N/A
5-M	900750	Dialplate	Yes	1 Day(s)	$14.08
5-H	004735F	Baffle Kit	Yes	1 Day(s)	$42.25
5-C	006533F	Transformer	No	N/A	N/A	N/A
6-H	001051F	Bolt Kit	Yes	1 Day(s)	$61.01
6-S	6492	Poolstat Cover/Lock Box	Yes	1 Day(s)	$58.98
6-M	007224F	PRV 125 PSI	Yes	1 Day(s)	$69.85
7-H	800086B	Header Gasket	Yes	1 Day(s)	$17.68
7-C	005390F	Thermostat Control IID (Solid State)	Yes	1 Day(s)	$214.85
8-C	005086B	PC Board	Yes	1 Day(s)	$200.71
8-H	002475F	Unitherm Governor	Yes	1 Day(s)	$187.44
9-C	005087B	Potentiometer	Yes	1 Day(s)	$36.25
9-M	004739F	Oil Filter Cartridge	Yes	1 Day(s)	$51.94
9-H	500834	Drain Valve	Yes	1 Day(s)	$7.04
10-C	005088B	Temperature Sensor	Yes	1 Day(s)	$56.59
10-H	007211F	Sensor Well	Yes	1 Day(s)	N/A	N/A
11-H	300203	Well Retainer Clip	Yes	1 Day(s)	$0.88
12-H	004736F	Inlet/Outlet Flange	Yes	1 Day(s)	$60.12
13-H	062236B	Flange Gasket 1-1/2""	Yes	1 Day(s)	$9.73
13-H	800080B	Flange Gasket 2"" Connections	Yes	1 Day(s)	$7.96
