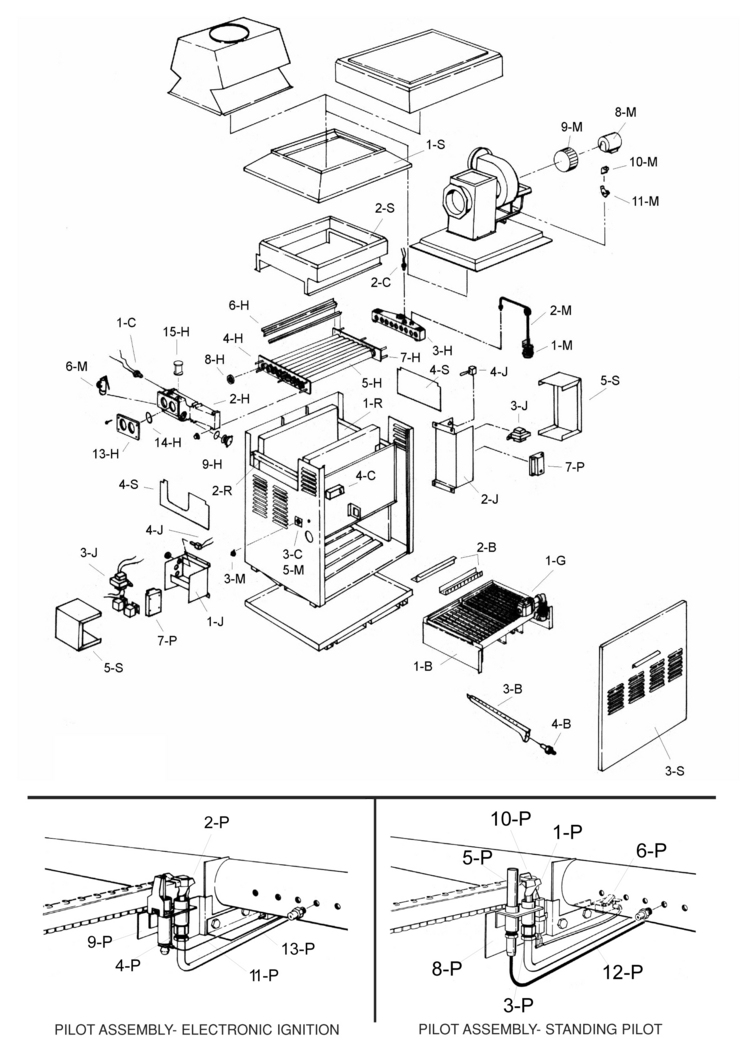

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 334-824



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-H	002471F	Heat Exchange Assy. (Complete) - Model 824	No	N/A	N/A	N/A
1-H	002470F	Heat Exchange Assy. (Complete) - Model 724	No	N/A	N/A	N/A
1-H	002469F	Heat Exchange Assy. (Complete) - Model 624	No	N/A	N/A	N/A
1-H	002468F	Heat Exchange Assy. (Complete) - Model 514	No	N/A	N/A	N/A
1-H	002467F	Heat Exchange Assy. (Complete) - Model 404	Yes	1 Day(s)	$3024.74
1-H	002466F	Heat Exchange Assy. (Complete) - Model 334	No	N/A	N/A	N/A
1-G	007195F	Manual ""B"" Valve Natural Gas IID Only - Model 824 only	No	N/A	N/A	N/A
1-G	007189F	Manual ""A"" Valve Natural Gas IID Only - Model 824 only	No	N/A	N/A	N/A
1-G	600217	Pilot Regulator Natural Gas IID Only - Model 824 only	Yes	1 Day(s)	$41.37
1-G	600562	Pilot Gas Valve Natural Gas IID Only - Model 824 only	Yes	1 Day(s)	$86.27
1-G	004878F	Combination Valve Propane Gas IID - Models 514, 624, 724 & 824	Yes	1 Day(s)	$433.24
1-G	004306F	Combination Valve Propane Gas IID (c)	No	N/A	N/A	N/A
1-G	004877F	Combination Valve Natural Gas IID - Models 514, 624 & 724	No	N/A	N/A	N/A
1-G	003900F	Combination Valve Natural Gas IID - Models 334 & 404	Yes	1 Day(s)	$257.29
1-G	003569F	Combination Valve Propane Gas (Remote Spa) (c)	Yes	1 Day(s)	$238.73
1-P	002412F	Pilot Natural Gas Standing (Remote Spa) (c)	Yes	1 Day(s)	$71.62
1-S	002422F	Jacket Top - Model 824	No	N/A	N/A	N/A
1-S	002421F	Jacket Top - Model 724	No	N/A	N/A	N/A
1-P	002480F	Pilot Natural Gas Standing (c)	Yes	1 Day(s)	$139.09
1-P	002481F	Pilot Propane Gas Standing (c)	Yes	1 Day(s)	$139.09
1-J	002653F	J Box Propane Gas IID (Complete)	No	N/A	N/A	N/A
1-J	002648F	J Box Natural Gas IID (Complete)	No	N/A	N/A	N/A
1-P	002413F	Pilot Propane Gas Standing (Remote Spa) (c)	Yes	1 Day(s)	$146.77
1-R	001312F	Refractory Kit - Model 334	No	N/A	N/A	N/A
1-R	001313F	Refractory Kit - Model 404	Yes	1 Day(s)	$322.72
1-R	001314F	Refractory Kit - Model 514	Yes	1 Day(s)	$342.17
1-R	001315F	Refractory Kit - Model 624	Yes	1 Day(s)	$372.24
1-R	001316F	Refractory Kit - Model 724	Yes	1 Day(s)	$417.33
1-R	001317F	Refractory Kit - Model 824	Yes	1 Day(s)	$469.49
1-S	002417F	Jacket Top - Model 334	Yes	1 Day(s)	$132.05
1-S	002418F	Jacket Top - Model 404	Yes	1 Day(s)	$132.05
1-S	002419F	Jacket Top - Model 514	Yes	1 Day(s)	$164.46
1-S	002420F	Jacket Top - Model 624	No	N/A	N/A	N/A
1-G	004868F	Combination Valve Natural Gas (Remote Spa) (c)	Yes	1 Day(s)	$266.13
1-G	003899F	Combination Valve Propane Gas MV (c)	Yes	1 Day(s)	$257.29
1-G	003898F	Combination Valve Natural Gas MV (c)	Yes	1 Day(s)	$257.29
1-B	001851F	Burner Tray w/Burners (Sea Level) - Model 334 (a)	No	N/A	N/A	N/A
1-B	001852F	Burner Tray w/Burners (Sea Level) - Model 404 (a)	No	N/A	N/A	N/A
1-B	001853F	Burner Tray w/Burners (Sea Level) - Model 514 (a)	Yes	1 Day(s)	$1251.98
1-B	001863F	Burner Tray w/o Burners (Sea Level) - Model 334 (a)	No	N/A	N/A	N/A
1-B	001855F	Burner Tray w/Burners (Sea Level) - Model 624 (a)	No	N/A	N/A	N/A
1-B	001857F	Burner Tray w/Burners (Sea Level) - Model 724 (a)	No	N/A	N/A	N/A
1-B	001859F	Burner Tray w/Burners (Sea Level) - Model 824 (a)	Yes	1 Day(s)	$1729.43
1-B	001864F	Burner Tray w/o Burners (Sea Level) - Model 404 (a)	No	N/A	N/A	N/A
1-B	001871F	Burner Tray w/o Burners (Sea Level) - Model 824 (a)	No	N/A	N/A	N/A
1-B	001869F	Burner Tray w/o Burners (Sea Level) - Model 724 (a)	No	N/A	N/A	N/A
1-B	001867F	Burner Tray w/o Burners (Sea Level) - Model 624 (a)	No	N/A	N/A	N/A
1-B	001865F	Burner Tray w/o Burners (Sea Level) - Model 514 (a)	No	N/A	N/A	N/A
1-V	1103	Stackless Top Kit (Outdoor) - Model 514	Yes	1 Day(s)	$445.80
1-V	1104	Stackless Top Kit (Outdoor) - Model 624	Yes	1 Day(s)	$461.44
1-C	600892B	High Limit 135 F	No	N/A	N/A	N/A
1-V	1105	Stackless Top Kit (Outdoor) - Model 724	Yes	1 Day(s)	$494.68
1-V	1106	Stackless Top Kit (Outdoor) - Model 824	Yes	1 Day(s)	$545.51
1-V	001102F	Stackless Top Kit (Outdoor) - Model 404	Yes	1 Day(s)	$814.28
1-V	001101F	Stackless Top Kit (Outdoor) - Model 334	Yes	1 Day(s)	$787.00
1-G	600631	Combination Valve Natural Gas IID - Model 824 only	Yes	1 Day(s)	$332.76
2-S	002428F	Flue Collector - Model 824	Yes	1 Day(s)	$444.74
2-V	1460	Draft Hood Kit (Indoor) - Model 824	Yes	1 Day(s)	$269.82
2-R	001627F	Refractory Retainer Kit	Yes	1 Day(s)	$101.68
2-V	001456F	Draft Hood Kit (Indoor) - Model 404	No	N/A	N/A	N/A
2-V	1459	Draft Hood Kit (Indoor) - Model 724	Yes	1 Day(s)	$246.36
2-J	002479F	J-Box NatVPropane Gas IID/Lock (Complete)	Yes	1 Day(s)	$657.82
2-V	1458	Draft Hood Kit (Indoor) - Model 624	Yes	1 Day(s)	$236.59
2-V	1457	Draft Hood Kit (Indoor) - Model 514	Yes	1 Day(s)	$207.26
2-P	002235F	Pilot Propane Gas IID - Models 514, 624, 724 & 824 (b)	No	N/A	N/A	N/A
2-P	002234F	Pilot Natural Gas IID	Yes	1 Day(s)	$68.97
2-M	003273F	Pressure Switch Tube Assy.	Yes	1 Day(s)	$42.44
2-S	002423F	Flue Collector - Model 334	Yes	1 Day(s)	$365.33
2-C	600893B	High Limit 140 F	No	N/A	N/A	N/A
2-V	001455F	Draft Hood Kit (Indoor) - Model 334	No	N/A	N/A	N/A
2-B	001880F	Burner Spacer/Hold Down Bracket Kit - Model 824	No	N/A	N/A	N/A
2-B	001879F	Burner Spacer/Hold Down Bracket Kit - Model 724	No	N/A	N/A	N/A
2-B	001878F	Burner Spacer/Hold Down Bracket Kit - Model 624	No	N/A	N/A	N/A
2-B	001877F	Burner Spacer/Hold Down Bracket Kit - Model 514	No	N/A	N/A	N/A
2-B	001876F	Burner Spacer/Hold Down Bracket Kit - Model 404	Yes	1 Day(s)	$102.56
2-H	002473F	Inlet/Outlet Header	No	N/A	N/A	N/A
2-S	002427F	Flue Collector - Model 724	Yes	1 Day(s)	$427.94
2-S	002426F	Flue Collector - Model 624	Yes	1 Day(s)	$414.68
2-S	002425F	Flue Collector - Model 514	Yes	1 Day(s)	$387.27
2-B	001875F	Burner Spacer/Hold Down Bracket Kit - Model 334	No	N/A	N/A	N/A
2-S	002424F	Flue Collector - Model 404	Yes	1 Day(s)	$378.53
3-S	001837F	Door Assy. - Model 624	Yes	1 Day(s)	$197.17
3-S	001839F	Door Assy. - Model 824	Yes	1 Day(s)	$214.85
3-M	006885F	Thermostat Knob	Yes	1 Day(s)	N/A	N/A
3-S	001838F	Door Assy. - Model 724	Yes	1 Day(s)	$206.01
3-P	600148	Pilot Orifice Propane Gas Standing (c)	Yes	1 Day(s)	$14.08
3-S	001834F	Door Assy. - Model 334	No	N/A	N/A	N/A
3-S	001835F	Door Assy. - Model 404	No	N/A	N/A	N/A
3-P	600552	Pilot Orifice Natural Gas Standing (c)	No	N/A	N/A	N/A
3-H	002491F	Return Header	Yes	1 Day(s)	$297.96
3-S	001836F	Door Assy. - Model 514	Yes	1 Day(s)	$192.75
3-B	301210	Burner	Yes	1 Day(s)	$13.20
3-J	005345F	Transformer 120/240/24V	No	N/A	N/A	N/A
3-C	003346F	Thermostat Control	Yes	1 Day(s)	N/A	N/A
4-P	600552	Pilot Orifice Natural Gas IID	No	N/A	N/A	N/A
4-P	600894	Pilot Orifice Propane Gas IID - Models 514, 624, 724 & 824 (b)	Yes	1 Day(s)	$14.08
4-H	003161F	Tube Bundle - Model 334	No	N/A	N/A	N/A
4-H	003162F	Tube Bundle - Model 404	No	N/A	N/A	N/A
4-H	003163F	Tube Bundle - Model 514	No	N/A	N/A	N/A
