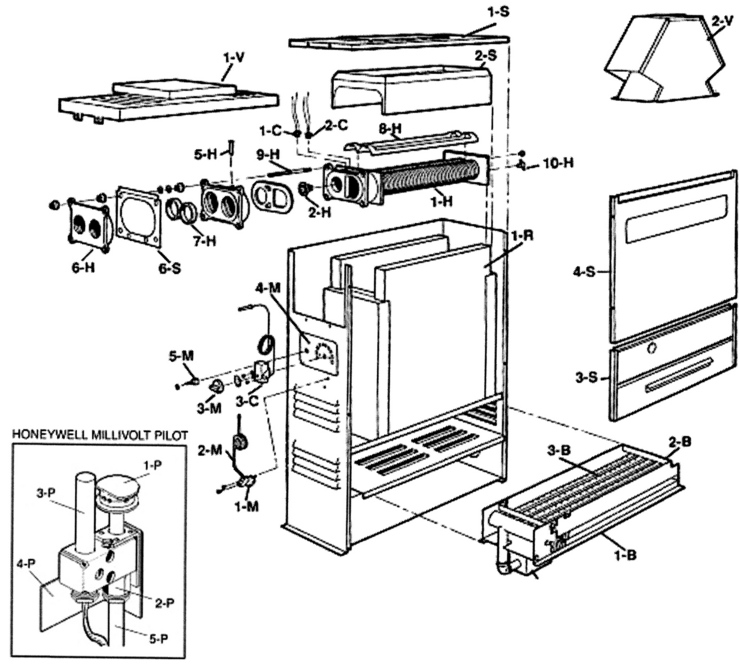

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 53



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-R	001474F	Refractory Block Kit	Yes	1 Day(s)	$147.01
1-H	001612F	Heat Exchanger	Yes	1 Day(s)	$536.99
1-G	003899F	Combination Valve 1/2"" Propane Gas	Yes	1 Day(s)	$257.29
1-G	003898F	Combination Valve 1/2"" Natural Gas	Yes	1 Day(s)	$257.29
1-S	002524F	Jacket Top	No	N/A	N/A	N/A
1-P	600575B	Pilot Propane Gas	Yes	1 Day(s)	$74.27
1-C	600889B	Hi Limit 135 F	No	N/A	N/A	N/A
1-P	600525B	Pilot Natural Gas	Yes	1 Day(s)	$75.15
2-P	003901F	Pilot Orifice Natural Gas	Yes	1 Day(s)	$7.07
2-M	003274F	Pressure Switch Tube Assy.	No	N/A	N/A	N/A
2-P	003902F	Pilot Orifice Pro	Yes	1 Day(s)	$7.07
2-H	600885	Unitherm Governor	Yes	1 Day(s)	$46.66
2-C	600890B	Hi Limit 140 F	Yes	1 Day(s)	$33.60
2-S	002530F	Flue Collector	Yes	1 Day(s)	$56.59
2-V	3723	Drafthood Kit - Spa-Pak Model only	Yes	1 Day(s)	$67.72
3-P	600019B	Pilot Generator	Yes	1 Day(s)	$53.05
3-M	006885F	Thermostat Knob	Yes	1 Day(s)	N/A	N/A
3-B	301210/4	Burner	No	N/A	N/A	N/A
3-C	003346F	Thermostat Control	Yes	1 Day(s)	N/A	N/A
3-H	400734	U. G. Cap (b)	Yes	1 Day(s)	N/A	N/A
4-B	350080F/4	Burner Orifice Natural Gas #51 (Sea Level)(a)	No	N/A	N/A	N/A
4-B	350350F/4	Burner Orifice Propane Gas #59 (Sea Level)(a)	No	N/A	N/A	N/A
4-P	305545F	Pilot Mounting Bracket	No	N/A	N/A	N/A
4-H	850247	U. G. Spring (b)	Yes	1 Day(s)	N/A	N/A
5-H	007211F	Sensor Well	Yes	1 Day(s)	N/A	N/A
5-P	400275	Pilot Tube	No	N/A	N/A	N/A
5-M	650761	Toggle Switch	Yes	1 Day(s)	$13.20
6-H	002432F	Inlet/Outlet Flange (b)	Yes	1 Day(s)	N/A	N/A
7-H	800013B	Flange Gasket	Yes	1 Day(s)	$6.19
8-H	002531F	Baffle Kit	No	N/A	N/A	N/A
9-H	001475F	Bolt Kit	No	N/A	N/A	N/A
10-H	500719	Drain Valve	Yes	1 Day(s)	N/A	N/A
