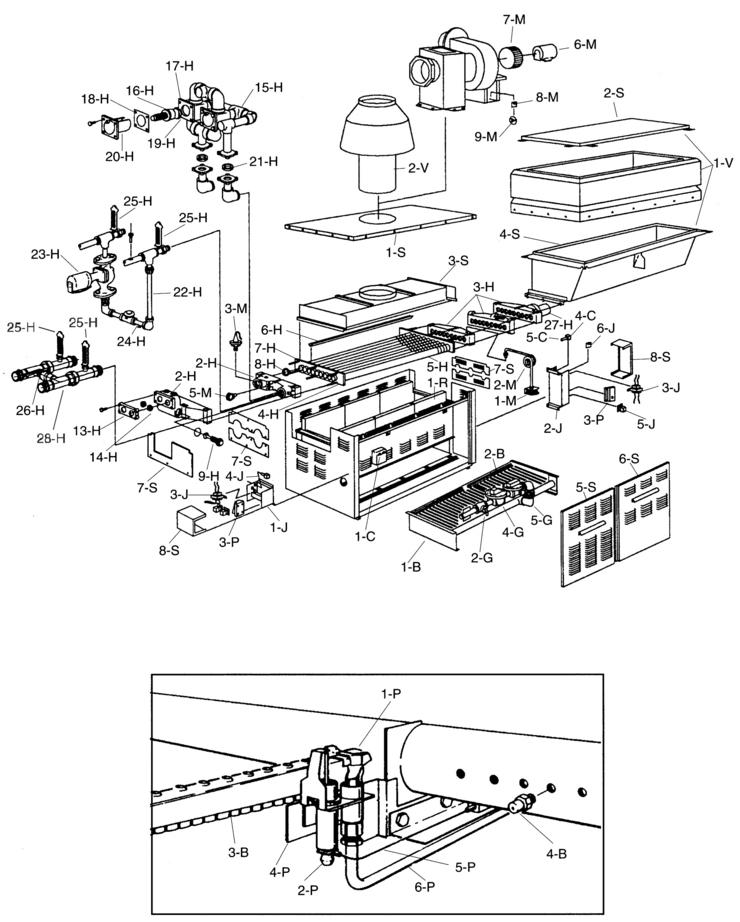

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Model 926 -1826



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1-S	002299F	Jacket Top (Raytherm) - Model 1826[1758]	No	N/A	N/A	N/A
1-H	002483F	Heat Exchange Assy. (Complete) - Model 1125[1083]	Yes	1 Day(s)	$5332.42
1-H	002482F	Heat Exchange Assy. (Complete) - Model 962[926]	Yes	1 Day(s)	$4921.28
1-V	002305F	Stackless Top Kit (Outdoor) - Model 962[926]	Yes	1 Day(s)	$2063.65
1-V	002306F	Stackless Top Kit (Outdoor) - Model 1125[1083]	Yes	1 Day(s)	$2892.12
1-V	002307F	Stackless Top Kit (Outdoor) - Model 1223[1178]	Yes	1 Day(s)	$3029.16
1-R	001512F	Refractory Kit - Model 1826[1758]	No	N/A	N/A	N/A
1-R	001511F	Refractory Kit - Model 1631[1571]	No	N/A	N/A	N/A
1-R	001006F	Refractory Kit - Model 1468[1414]	No	N/A	N/A	N/A
1-R	001005F	Refractory Kit - Model 1336[1287]	No	N/A	N/A	N/A
1-R	001004F	Refractory Kit - Model 1223[1178]	No	N/A	N/A	N/A
1-G	007195F	Manual ""B"" Valve	No	N/A	N/A	N/A
1-V	002308F	Stackless Top Kit (Outdoor) - Model 1336[1287]	Yes	1 Day(s)	$3244.02
1-V	002309F	Stackless Top Kit (Outdoor) - Model 1468[1414]	Yes	1 Day(s)	$3273.19
1-H	002484F	Heat Exchange Assy. (Complete) - Model 1223[1178]	Yes	1 Day(s)	$5622.43
1-H	002485F	Heat Exchange Assy. (Complete) - Model 1336[1287]	Yes	1 Day(s)	$5842.59
1-S	002298F	Jacket Top (Raytherm) - Model 1631[1571]	No	N/A	N/A	N/A
1-S	002297F	Jacket Top (Raytherm) - Model 1468[1414]	No	N/A	N/A	N/A
1-S	002296F	Jacket Top (Raytherm) - Model 1336[1287]	No	N/A	N/A	N/A
1-S	002295F	Jacket Top (Raytherm) - Model 1223[1178]	No	N/A	N/A	N/A
1-S	002294F	Jacket Top (Raytherm) - Model 1125[1083]	No	N/A	N/A	N/A
1-S	002293F	Jacket Top (Raytherm) - Model 962[926[	No	N/A	N/A	N/A
1-H	006955F	Heat Exchanger Assy Brass w/Pump Hdr. - Model 1826[1758]	Yes	1 Day(s)	$7657.79
1-H	006954F	Heat Exchanger Assy Brass w/Pump Hdr. - Model 1631[1571]	Yes	1 Day(s)	$7420.83
1-H	006953F	Heat Exchanger Assy Brass w/Pump Hdr. - Model 1468[1414]	Yes	1 Day(s)	$7184.76
1-H	006952F	Heat Exchanger Assy Brass w/Pump Hdr. - Model 1336[1287]	Yes	1 Day(s)	$6947.80
1-H	002488F	Heat Exchange Assy. (Complete) - Model 1826[1758]	Yes	1 Day(s)	$7320.04
1-H	002487F	Heat Exchange Assy. (Complete) - Model 1631[1571]	Yes	1 Day(s)	$6731.18
1-H	002486F	Heat Exchange Assy. (Complete) - Model 1468[1414]	Yes	1 Day(s)	$6215.71
1-V	002310F	Stackless Top Kit (Outdoor) - Model 1631[1571]	Yes	1 Day(s)	$3353.65
1-R	001003F	Refractory Kit - Model 1125[1083]	No	N/A	N/A	N/A
1-V	002311F	Stackless Top Kit (Outdoor) - Model 1826[1758]	Yes	1 Day(s)	$3442.95
1-B	002100F	Burner Tray w/o Burners (Sea Level) - Model 1125[1083] (a)	Yes	1 Day(s)	$1267.90
1-J	002675F	J-Box Natural Gas	Yes	1 Day(s)	$647.21
1-J	002676F	J-Box Propane Gas/Natural Gas w/Lockout	Yes	1 Day(s)	$699.38
1-B	002094F	Burner Tray w/Burners (Sea Level) - Model 1223[1178] (a)	Yes	1 Day(s)	$2335.97
1-B	002095F	Burner Tray w/Burners (Sea Level) - Model 1336[1287] (a)	Yes	1 Day(s)	$2664.89
1-B	002096F	Burner Tray w/Burners (Sea Level) - Model 1468[1414] (a)	Yes	1 Day(s)	$2779.83
1-B	002104F	Burner Tray w/o Burners (Sea Level) - Model 1631[1571] (a)	Yes	1 Day(s)	$1726.78
1-B	002103F	Burner Tray w/o Burners (Sea Level) - Model 1468[1414] (a)	Yes	1 Day(s)	$1596.81
1-B	002102F	Burner Tray w/o Burners (Sea Level) - Model 1336[1287] (a)	Yes	1 Day(s)	$1581.78
1-B	002101F	Burner Tray w/o Burners (Sea Level) - Model 1223[1178] (a)	Yes	1 Day(s)	$1318.30
1-B	002097F	Burner Tray w/Burners (Sea Level) - Model 1631[1571] (a)	Yes	1 Day(s)	$2923.95
1-B	002099F	Burner Tray w/o Burners (Sea Level) - Model 962[926] (a)	Yes	1 Day(s)	$1224.57
1-B	002093F	Burner Tray w/Burners (Sea Level) - Model 1125[1083] (a)	Yes	1 Day(s)	$2180.36
1-B	002092F	Burner Tray w/Burners (Sea Level) - Model 962[926] (a)	Yes	1 Day(s)	$2013.25
1-B	002098F	Burner Tray w/Burners (Sea Level) - Model 1826[1758] (a)	Yes	1 Day(s)	$3063.65
1-R	001002F	Refractory Kit - Model 962[926]	No	N/A	N/A	N/A
1-C	007141F	Auto Hi-Limit (b)	No	N/A	N/A	N/A
1-C	600024	Auto Dualstat	No	N/A	N/A	N/A
1-B	002105F	Burner Tray w/o Burners (Sea Level) - Model 1826[1758] (a)	Yes	1 Day(s)	$1862.06
1-P	002235F	Pilot Propane Gas IID	No	N/A	N/A	N/A
1-P	002234F	Pilot Natural Gas IID	Yes	1 Day(s)	$68.97
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
2-S	002316F	Flat Top Assy. (Hurricane) - Model 1468[1414]	No	N/A	N/A	N/A
2-S	002315F	Flat Top Assy. (Hurricane) - Model 1336[1287]	Yes	1 Day(s)	$562.33
2-S	002314F	Flat Top Assy. (Hurricane) - Model 1223[1178]	No	N/A	N/A	N/A
2-S	002317F	Flat Top Assy. (Hurricane) - Model 1631[1571]	Yes	1 Day(s)	$576.48
2-S	002313F	Flat Top Assy. (Hurricane) - Model 1125[1083]	No	N/A	N/A	N/A
2-S	002312F	Flat Top Assy. (Hurricane) - Model 962[926]	No	N/A	N/A	N/A
2-R	001519F	Refractory Retainer Kit - Model 1826[1758]	Yes	1 Day(s)	$219.27
2-R	001518F	Refractory Retainer Kit - Model 1631[1571]	Yes	1 Day(s)	$209.55
2-M	003273F	Pressure Switch Tube Assy.	Yes	1 Day(s)	$42.44
2-J	006494F	J Box Pro/Nat w/Lockout and Pump Relay Board (b)	Yes	1 Day(s)	$499.56
2-J	005588F	J Box Pro/Nat w/Lockout and Pump Relay (b)	Yes	1 Day(s)	$915.11
2-R	000988F	Refractory Retainer Kit - Model 1125[1083]	Yes	1 Day(s)	$198.94
2-R	000987F	Refractory Retainer Kit - Model 962[926]	Yes	1 Day(s)	$192.75
2-R	000989F	Refractory Retainer Kit - Model 1223[1178]	Yes	1 Day(s)	$203.36
2-R	000990F	Refractory Retainer Kit - Model 1336[1287]	Yes	1 Day(s)	$209.55
2-J	002227F	J-Box Natural Gas	Yes	1 Day(s)	$647.21
2-J	002230F	J-Box Propane Gas/Natural Gas w/Lockout	Yes	1 Day(s)	$760.39
2-P	600552	Pilot Orifice Natural Gas	No	N/A	N/A	N/A
2-R	000991F	Refractory Retainer Kit - Model 1468[1414]	Yes	1 Day(s)	$214.85
2-P	600894	Pilot Orifice Propane Gas	Yes	1 Day(s)	$14.08
2-B	002121F	Burner Hold Down/Spacer - Model 1125[1083]	Yes	1 Day(s)	$171.53
2-S	002318F	Flat Top Assy. (Hurricane) - Model 1826[1758]	No	N/A	N/A	N/A
2-G	600881	Manual ""A"" Valve 1-1/2 - Model 1826[1758] only	Yes	1 Day(s)	$100.36
2-G	007190F	Manual ""A"" Valve - Models 1336[1287], 1468[1414] & 1631[1571]	Yes	1 Day(s)	$100.80
2-G	007189F	Manual ""A"" Valve - Models 962[926], 1125[1083] & 1223[1178]	No	N/A	N/A	N/A
2-H	002216F	Inlet/Outlet Header - Models 1336[1287], 1468[1414], 1631[1571] & 1826[1758]	Yes	1 Day(s)	$767.46
2-C	007144F	Manual High Limit (Cal Code Only)	Yes	1 Day(s)	N/A	N/A
2-V	6484	Draft Hood (Indoor) - Model 962[926] only	Yes	1 Day(s)	$328.48
2-V	6485	Draft Hood (Indoor) - Model 1125[1083] & 1223[1178]	Yes	1 Day(s)	$338.26
2-V	6486	Draft Hood (Indoor) - Models 1336[1287], 1468[1414] & 1631[1571]	Yes	1 Day(s)	$496.63
2-B	002120F	Burner Hold Down/Spacer - Model 962[926]	Yes	1 Day(s)	$142.35
2-B	002126F	Burner Hold Down/Spacer - Model 1826[1758]	Yes	1 Day(s)	$183.02
2-B	002124F	Burner Hold Down/Spacer - Model 1468[1414]	Yes	1 Day(s)	$169.76
2-B	002123F	Burner Hold Down/Spacer - Model 1336[1287]	Yes	1 Day(s)	$161.80
2-B	002122F	Burner Hold Down/Spacer - Model 1223[1178]	Yes	1 Day(s)	$181.25
2-V	6487	Draft Hood (Indoor) - Model 1826[1758] only	Yes	1 Day(s)	$510.32
2-H	002489F	Inlet/Outlet Header - Models 962[926], 1125[1083] & 1223[1178]	Yes	1 Day(s)	$1357.20
2-B	002125F	Burner Hold Down/Spacer - Model 1631[1571]	Yes	1 Day(s)	$192.75
3-M	007224F	PRV 125 PSI	Yes	1 Day(s)	$69.85
3-P	004818B	Ignition Control Propane Gas (Natural Gas w/Lock)	No	N/A	N/A	N/A
3-P	004817B	Ignition Control Natural Gas	No	N/A	N/A	N/A
3-J	006533F	Transformer	No	N/A	N/A	N/A
3-S	002253F	Flue Collector (Raytherm) - Model 1826[1758]	No	N/A	N/A	N/A
3-S	002252F	Flue Collector (Raytherm) - Model 1631[1571]	No	N/A	N/A	N/A
3-B	301210	Burner	Yes	1 Day(s)	$13.20
3-S	002251F	Flue Collector (Raytherm) - Model 1468[1414]	No	N/A	N/A	N/A
