SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

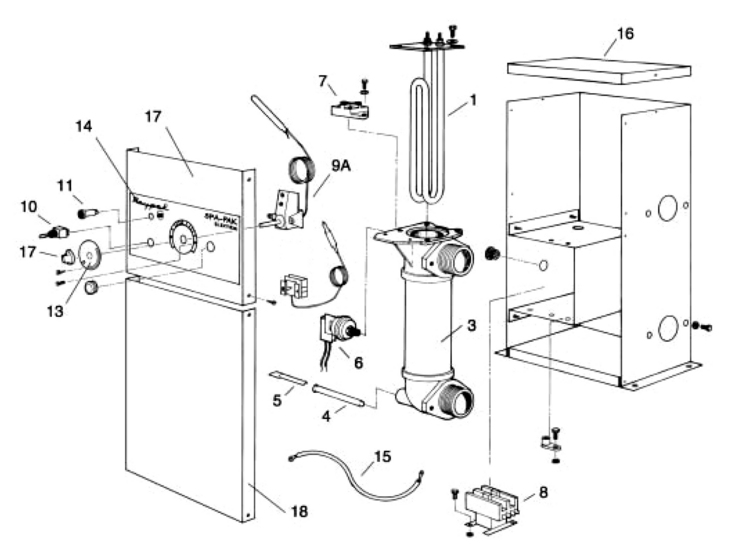

Here is the schematic view you requested:

Category: Heaters
Manufacturer name: RayPak
Model Name: Model ELS 552-2&1102-2

RayPak Model-ELS-552211022 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 001801F Element - Model ELS 552-2 Yes 1 Day(s) $145.00

2

 800164 Element Gasket Yes 1 Day(s) $2.64

3

 001805F Element Tube Assy. - Model ELS 552-2 Yes 1 Day(s) $351.02

3

 001808F Element Tube Assy. - Model ELS 1102-2 Yes 1 Day(s) $372.24

4

 004087F Sensor Well Yes 1 Day(s) $47.75

5

 300203 Well Retaining Clip Yes 1 Day(s) $0.88

6

 062237B Pressure Switch Yes 1 Day(s) $50.40

7

 001811F High Limit Yes 1 Day(s) $53.05

8

 001813F Contactor Yes 1 Day(s) $131.74

10

 650761 Toggle Switch Yes 1 Day(s) $13.20

11

 001812F Indicator Light Yes 1 Day(s) $30.06

12

 006885F Knob Yes 1 Day(s) N/A N/A

13

 006886F Knobstop Yes 1 Day(s) N/A N/A

14

 900615 Dial Plate Yes 1 Day(s) $10.56

15

 001090F Wire Kit (Complete) Yes 1 Day(s) $54.58
