SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

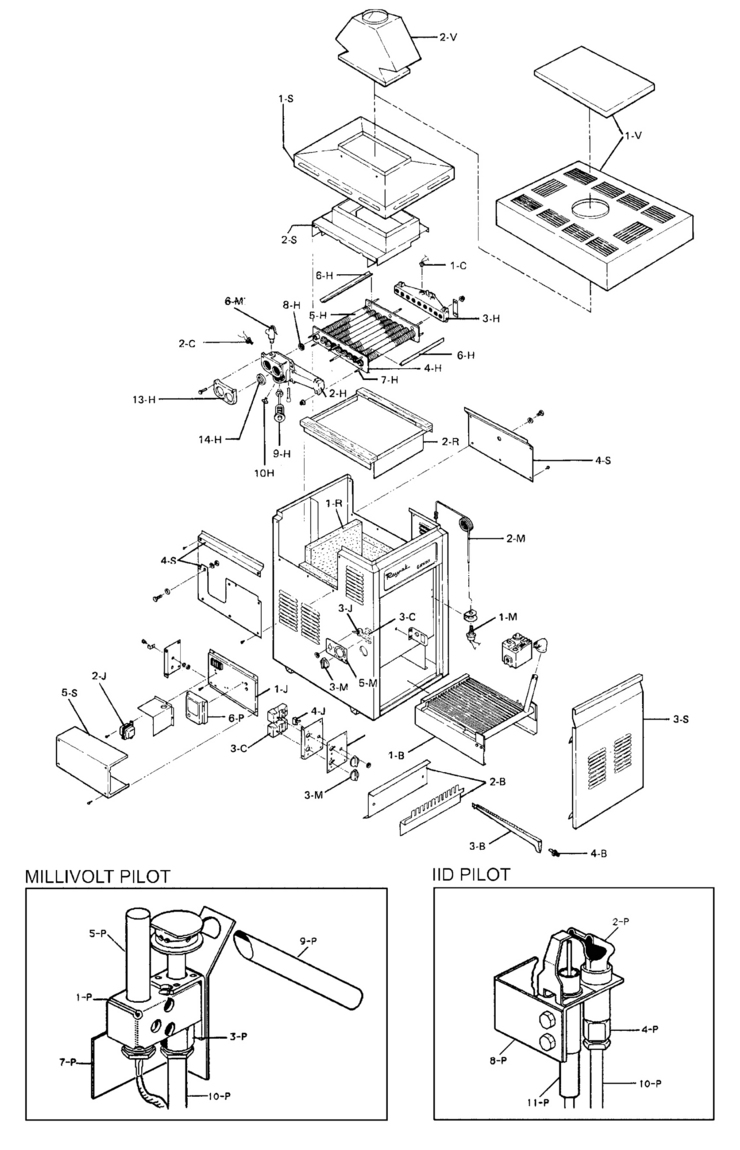

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Models 183 - 403



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	004691F	Propane Gas to Natural Gas Standing Pilot (b)	Yes	1 Day(s)	$112.29
	004690B	Natural Gas to Propane Gas Standing Pilot (b)	Yes	1 Day(s)	$84.88
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-S	002068F	Jacket Top - Model 333	No	N/A	N/A	N/A
1-S	002069F	Jacket Top - Model 403	No	N/A	N/A	N/A
1-V	3711	Stackless Top Kit (Outdoor) - Model 183	Yes	1 Day(s)	$190.15
1-H	004049F	Heat Exchanger Assy. Brass (Complete) - Model 183 only	No	N/A	N/A	N/A
1-H	002446F	Heat Exchanger Assy. CI (Complete) - Model 403	Yes	1 Day(s)	$1671.08
1-H	002445F	Heat Exchanger Assy. CI (Complete) - Model 333	Yes	1 Day(s)	$1633.06
1-H	002444F	Heat Exchanger Assy. CI (Complete) - Model 263	Yes	1 Day(s)	$1454.46
1-S	002067F	Jacket Top - Model 263	No	N/A	N/A	N/A
1-S	002066F	Jacket Top - Model 183	Yes	1 Day(s)	$90.67
1-J	004029F	J-Box	No	N/A	N/A	N/A
1-R	001298F	Refractory Kit - Model 403	Yes	1 Day(s)	$332.45
1-R	001297F	Refractory Kit - Model 333	Yes	1 Day(s)	$302.39
1-R	001296F	Refractory Kit - Model 263	Yes	1 Day(s)	$272.32
1-R	001295F	Refractory Kit - Model 183	Yes	1 Day(s)	$246.68
1-P	600575B	Pilot Propane Gas Standing	Yes	1 Day(s)	$74.27
1-P	600525B	Pilot Natural Gas Standing	Yes	1 Day(s)	$75.15
1-H	002443F	Heat Exchanger Assy. CI (Complete) - Model 183	Yes	1 Day(s)	$1474.79
1-G	003900F	Combination Valve Natural Gas IID	Yes	1 Day(s)	$257.29
1-G	003899F	Combination Valve Propane Gas	Yes	1 Day(s)	$257.29
1-B	002027F	Burner Tray w/o Burners (Sea Level) - Model 403 (a)	No	N/A	N/A	N/A
1-B	002025F	Burner Tray w/o Burners (Sea Level) - Model 263 (a)	No	N/A	N/A	N/A
1-B	002024F	Burner Tray w/o Burners (Sea Level) - Model 183 (a)	No	N/A	N/A	N/A
1-B	002023F	Burner Tray w/Burners (Sea Level) - Model 403 (a)	No	N/A	N/A	N/A
1-B	002022F	Burner Tray w/Burners (Sea Level) - Model 333 (a)	No	N/A	N/A	N/A
1-B	002021F	Burner Tray w/Burners (Sea Level) - Model 263 (a)	No	N/A	N/A	N/A
1-H	002447F	Heat Exchanger Assy. Brass (Complete) - Model 263 only	No	N/A	N/A	N/A
1-B	002026F	Burner Tray w/o Burners (Sea Level) - Model 333 (a)	No	N/A	N/A	N/A
1-B	002020F	Burner Tray w/Burners (Sea Level) - Model 183 (a)	No	N/A	N/A	N/A
1-G	003898F	Combination Valve Natural Gas	Yes	1 Day(s)	$257.29
1-V	3712	Stackless Top Kit (Outdoor) - Model 263	Yes	1 Day(s)	$220.96
1-V	3713	Stackless Top Kit (Outdoor) - Model 333	Yes	1 Day(s)	$220.96
1-C	600892B	High Limit 135°F	No	N/A	N/A	N/A
1-V	3714	Stackless Top Kit (Outdoor) - Model 403	Yes	1 Day(s)	$237.68
2-P	002003F	Pilot Natural Gas IID	Yes	1 Day(s)	$68.08
2-J	006736F	Transformer	Yes	1 Day(s)	$58.36
2-R	001305F	Refractory Retainer Kit - Model 263	Yes	1 Day(s)	N/A	N/A
2-M	004050F	Pressure Switch Tube Assy.	No	N/A	N/A	N/A
2-V	3727	Draft Hood Kit (Indooor) - Model 403	Yes	1 Day(s)	$237.68
2-S	002073F	Flue Collector - Model 403	No	N/A	N/A	N/A
2-S	002072F	Flue Collector - Model 333	No	N/A	N/A	N/A
2-S	002071F	Flue Collector - Model 263	No	N/A	N/A	N/A
2-S	002070F	Flue Collector - Model 183	No	N/A	N/A	N/A
2-V	003724F	Draft Hood Kit (Indooor) - Model 183	No	N/A	N/A	N/A
2-V	003725F	Draft Hood Kit (Indooor) - Model 263	No	N/A	N/A	N/A
2-V	3726	Draft Hood Kit (Indooor) - Model 333	Yes	1 Day(s)	$215.68
2-R	001307F	Refractory Retainer Kit - Model 403	Yes	1 Day(s)	N/A	N/A
2-R	001306F	Refractory Retainer Kit - Model 333	Yes	1 Day(s)	N/A	N/A
2-R	001304F	Refractory Retainer Kit - Model 183	Yes	1 Day(s)	N/A	N/A
2-B	002028F	Burner Spacer/Hold Down Bracket Kit - Model 183	No	N/A	N/A	N/A
2-B	002029F	Burner Spacer/Hold Down Bracket Kit - Model 263	No	N/A	N/A	N/A
2-B	002030F	Burner Spacer/Hold Down Bracket Kit - Model 333	No	N/A	N/A	N/A
2-B	002031F	Burner Spacer/Hold Down Bracket Kit - Model 403	No	N/A	N/A	N/A
2-C	600893B	High Limit 140°F	No	N/A	N/A	N/A
2-H	002436F	Inlet/Outlet Header Brass - Models 183 & 263 only	No	N/A	N/A	N/A
2-H	002433F	Inlet/Outlet Header Cast Iron	No	N/A	N/A	N/A
3-P	003901F	Pilot Orifice Natural Gas Standing	Yes	1 Day(s)	$7.07
3-J	650761	Toggle Switch (Single Thermostat)	Yes	1 Day(s)	$13.20
3-S	001825F	Door Assy. - Model 183	No	N/A	N/A	N/A
3-H	002450F	Return Header Cast Iron	Yes	1 Day(s)	$97.26
3-H	002451F	Return Header Brass - Models 183 & 263 only	Yes	1 Day(s)	$166.22
3-S	001828F	Door Assy. - Model 403	No	N/A	N/A	N/A
3-P	003902F	Pilot Orifice Propane Gas Standing	Yes	1 Day(s)	$7.07
3-S	001827F	Door Assy. - Model 333	No	N/A	N/A	N/A
3-M	006885F	Thermostat Knob	Yes	1 Day(s)	N/A	N/A
3-S	001826F	Door Assy. - Model 263	No	N/A	N/A	N/A
3-B	301210	Burner	Yes	1 Day(s)	$13.20
3-C	003346F	Thermostat Control	Yes	1 Day(s)	N/A	N/A
4-B	350083F	Burner Orifice Propane Gas #57 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-B	350080F	Burner Orifice Natural Gas #51 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-H	004672F	Tube Bundle - Model 263	No	N/A	N/A	N/A
4-H	004673F	Tube Bundle - Model 333	No	N/A	N/A	N/A
4-H	004674F	Tube Bundle - Model 403	No	N/A	N/A	N/A
4-M	006886F	Knob Stop	Yes	1 Day(s)	N/A	N/A
4-S	002465F	Access Panel Group	No	N/A	N/A	N/A
4-J	650553F	Toggle Switch (Dual Thermostat)	No	N/A	N/A	N/A
4-P	003903F	Pilot Orifice Natural Gas IID	Yes	1 Day(s)	$7.07
4-H	004671F	Tube Bundle - Model 183	Yes	1 Day(s)	$721.48
5-P	600019B	Pilot Generator (Standing Pilot Only)	Yes	1 Day(s)	$53.05
5-H	002459F	Heat Exchange Tube - Model 403	Yes	1 Day(s)	$138.81
5-H	002456F	Heat Exchange Tube - Model 183	Yes	1 Day(s)	$103.45
5-H	002457F	Heat Exchange Tube - Model 263	Yes	1 Day(s)	$99.03
5-H	002458F	Heat Exchange Tube - Model 333	Yes	1 Day(s)	$139.70
5-S	-	J-Box Sheet Metal	No	N/A	N/A	N/A
6-H	001300F	Baffle Kit - Model 263	Yes	1 Day(s)	$71.62
6-M	008091F	Prv 125 PSI - Model 183 only	Yes	1 Day(s)	$47.75
6-M	007224F	Prv 125 PSI	Yes	1 Day(s)	$69.85
6-H	001301F	Baffle Kit - Model 333	Yes	1 Day(s)	$91.07
6-P	600857	Ignition Control IID	No	N/A	N/A	N/A
6-H	001299F	Baffle Kit - Model 183	Yes	1 Day(s)	$58.36
6-H	001302F	Baffle Kit - Model 403	Yes	1 Day(s)	$113.17
7-M	052871F	Deliming Kit	Yes	1 Day(s)	$182.14
7-H	001303F	Bolt Kit	Yes	1 Day(s)	$48.63
7-P	305161F	Pilot Mounting Bracket Standing	No	N/A	N/A	N/A
8-H	800014B	Header Gasket	Yes	1 Day(s)	$16.80
8-P	305160F	Pilot Mounting Bracket IID	Yes	1 Day(s)	N/A	N/A
9-H	051492B	Unitherm Governor	Yes	1 Day(s)	$186.56
9-P	52797	Lighter Tube (Standing Pilot Only)	No	N/A	N/A	N/A
