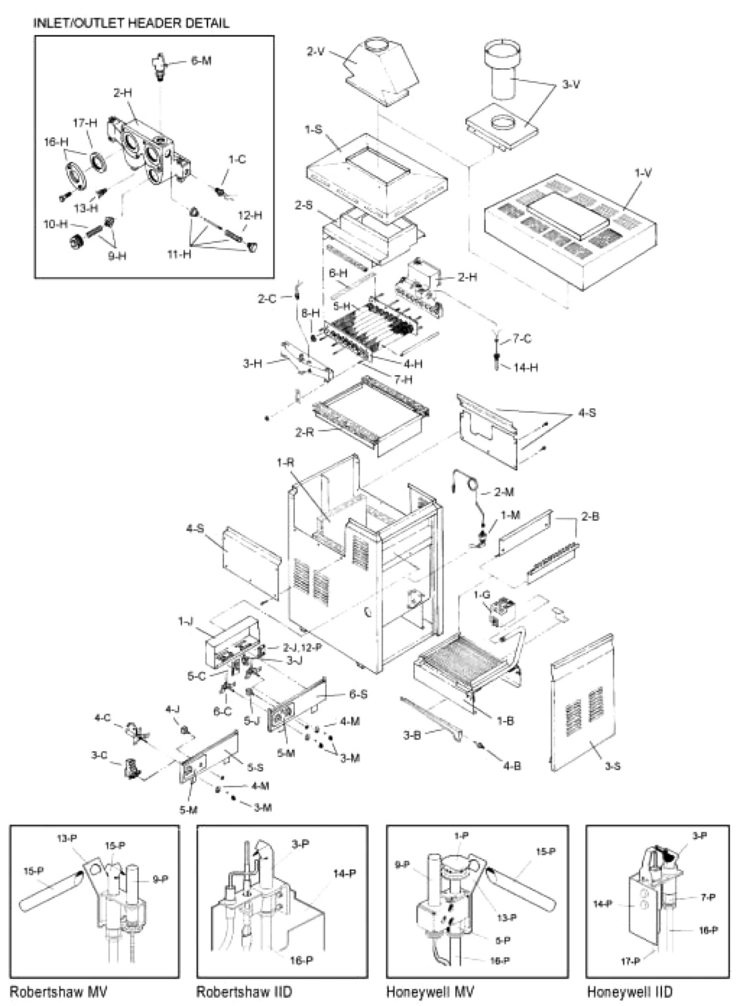

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Models 185A - 405A



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	004693F	Propane Gas to Natural Gas MV Pilot - Models 335A & 405A (b)	Yes	1 Day(s)	$95.49
	003783F	Thermostat Conversions MV Single Stat to Dual Stat (b)	No	N/A	N/A	N/A
	004692B	Natural Gas to Propane Gas MV Pilot - Models 335A & 405A (b)	Yes	1 Day(s)	$95.49
	004690B	Natural Gas to Propane Gas MV Pilot - Models 185A & 265A (b)	Yes	1 Day(s)	$84.88
	004691F	Propane Gas to Natural Gas MV Pilot - Models 185A & 265A (b)	Yes	1 Day(s)	$112.29
1-H	003755F	Heat Exchanger Assy. CI (Complete) - Model 405A	Yes	1 Day(s)	$1742.70
1-V	3711	Stackless Top (Outdoor) - Model 185A	Yes	1 Day(s)	$190.15
1-V	3712	Stackless Top (Outdoor) - Model 265A	Yes	1 Day(s)	$220.96
1-H	004052F	Heat Exchanger Assy. BR (Complete) - Model 185A	Yes	1 Day(s)	$1774.53
1-V	3714	Stackless Top (Outdoor) - Model 405A	Yes	1 Day(s)	$237.68
1-H	003756F	Heat Exchanger Assy. BR (Complete) - Model 265A	Yes	1 Day(s)	$2021.21
1-P	600525B	Pilot Natural Gas MV	Yes	1 Day(s)	$75.15
1-H	003758F	Heat Exchanger Assy. BR (Complete) - Model 405A	Yes	1 Day(s)	$2232.53
1-H	003757F	Heat Exchanger Assy. BR (Complete) - Model 335A	Yes	1 Day(s)	$2105.21
1-P	600575B	Pilot Propane Gas MV	Yes	1 Day(s)	$74.27
1-M	062237B	Pressure Switch	Yes	1 Day(s)	$50.40
1-R	001295F	Refractory Kit - Model 185A	Yes	1 Day(s)	$246.68
1-R	001296F	Refractory Kit - Model 265A	Yes	1 Day(s)	$272.32
1-R	001297F	Refractory Kit - Model 335A	Yes	1 Day(s)	$302.39
1-J	004307F	Control Box IID w/o Thermostat Pro	No	N/A	N/A	N/A
1-J	003767F	Control Box IID w/o Thermostat Nat	No	N/A	N/A	N/A
1-R	001298F	Refractory Kit - Model 405A	Yes	1 Day(s)	$332.45
1-S	002066F	Jacket Top - Model 185A	Yes	1 Day(s)	$90.67
1-S	002067F	Jacket Top - Model 265A	No	N/A	N/A	N/A
1-S	002068F	Jacket Top - Model 335A	No	N/A	N/A	N/A
1-S	002069F	Jacket Top - Model 405A	No	N/A	N/A	N/A
1-H	003754F	Heat Exchanger Assy. CI (Complete) - Model 335A	Yes	1 Day(s)	$1701.14
1-H	003753F	Heat Exchanger Assy. CI (Complete) - Model 265A	Yes	1 Day(s)	$1619.80
1-H	003752F	Heat Exchanger Assy. CI (Complete) - Model 185A	Yes	1 Day(s)	$1535.80
1-V	3713	Stackless Top (Outdoor) - Model 335A	Yes	1 Day(s)	$220.96
1-C	600892B	High Limit 135°F	No	N/A	N/A	N/A
1-B	002027F	Burner Tray w/o Burner (Sea Level) - Model 405A (a)	No	N/A	N/A	N/A
1-B	002026F	Burner Tray w/o Burner (Sea Level) - Model 335A (a)	No	N/A	N/A	N/A
1-B	002025F	Burner Tray w/o Burner (Sea Level) - Model 265A (a)	No	N/A	N/A	N/A
1-B	002021F	Burner Tray w/Burners (Sea Level) - Model 265A (a)	No	N/A	N/A	N/A
1-B	002024F	Burner Tray w/o Burner (Sea Level) - Model 185A (a)	No	N/A	N/A	N/A
1-B	002023F	Burner Tray w/Burners (Sea Level) - Model 405A (a)	No	N/A	N/A	N/A
1-B	002022F	Burner Tray w/Burners (Sea Level) - Model 335A (a)	No	N/A	N/A	N/A
1-B	002020F	Burner Tray w/Burners (Sea Level) - Model 185A (a)	No	N/A	N/A	N/A
1-G	004306F	Combination Valve - Propane Gas IID	Yes	1 Day(s)	$247.57
1-G	003898F	Combination Valve - Natural Gas MV	Yes	1 Day(s)	$257.29
1-G	003899F	Combination Valve - Propane Gas MV	Yes	1 Day(s)	$257.29
1-G	003900F	Combination Valve - Natural Gas IID	Yes	1 Day(s)	$257.29
2-J	004817B	Ignition Control IID Nat	No	N/A	N/A	N/A
2-B	002030F	Burner Spacer/Hold Down Kit - Model 335A	No	N/A	N/A	N/A
2-R	001307F	Refractory Retainer Kit - Model 405A	No	N/A	N/A	N/A
2-R	001306F	Refractory Retainer Kit - Model 335A	No	N/A	N/A	N/A
2-R	001305F	Refractory Retainer Kit - Model 265A	No	N/A	N/A	N/A
2-R	001304F	Refractory Retainer Kit - Model 185A	No	N/A	N/A	N/A
2-J	004818B	Ignition Control IID Pro	No	N/A	N/A	N/A
2-M	003272F	Pressure Switch Tube Assy.	Yes	1 Day(s)	$32.71
2-B	002031F	Burner Spacer/Hold Down Kit - Model 405A	No	N/A	N/A	N/A
2-S	002070F	Flue Collector - Model 185A	No	N/A	N/A	N/A
2-S	002071F	Flue Collector - Model 265A	No	N/A	N/A	N/A
2-H	003759F	Inlet/Outlet Header CI	Yes	1 Day(s)	$333.33
2-H	003760F	Inlet/Outlet Header BR	Yes	1 Day(s)	$535.81
2-V	003726F	Drafthood (Indoor) - Model 335A	No	N/A	N/A	N/A
2-V	003725F	Drafthood (Indoor) - Model 265A	No	N/A	N/A	N/A
2-V	003724F	Drafthood (Indoor) - Model 185A	No	N/A	N/A	N/A
2-B	002029F	Burner Spacer/Hold Down Kit - Model 265A	No	N/A	N/A	N/A
2-C	600893B	High Limit 140°F	No	N/A	N/A	N/A
2-V	003727F	Drafthood (Indoor) - Model 405A	No	N/A	N/A	N/A
2-B	002028F	Burner Spacer/Hold Down Kit - Model 185A	No	N/A	N/A	N/A
2-S	002072F	Flue Collector - Model 335A	No	N/A	N/A	N/A
2-S	002073F	Flue Collector - Model 405A	No	N/A	N/A	N/A
3-P	002003F	Pilot Pro IID	Yes	1 Day(s)	$68.08
3-P	002003F	Pilot Pro IID	Yes	1 Day(s)	$68.08
3-V	004303F	Outdoor Stack w/Adapter - Model 265A	No	N/A	N/A	N/A
3-V	004305F	Outdoor Stack w/Adapter - Model 405A	No	N/A	N/A	N/A
3-V	004304F	Outdoor Stack w/Adapter - Model 335A	No	N/A	N/A	N/A
3-S	002076F	Door Assy. - Model 335A	No	N/A	N/A	N/A
3-V	004302F	Outdoor Stack w/Adapter - Model 185A	No	N/A	N/A	N/A
3-S	002074F	Door Assy. - Model 185A	No	N/A	N/A	N/A
3-S	002075F	Door Assy. - Model 265A	No	N/A	N/A	N/A
3-S	002077F	Door Assy. - Model 405A	No	N/A	N/A	N/A
3-M	006885F	Thermostat Knob	Yes	1 Day(s)	N/A	N/A
3-H	002451F	Return Header BR	Yes	1 Day(s)	$166.22
3-H	002450F	Return Header CI	Yes	1 Day(s)	$97.26
3-C	600827B	Thermostat Control MV (Mechanical)	Yes	1 Day(s)	$118.48
3-J	006736F	Transformer 120/240/24V	Yes	1 Day(s)	$58.36
3-B	301210	Burner	Yes	1 Day(s)	$13.20
4-C	005390F	Thermostat Control IID (Solid State)	Yes	1 Day(s)	$214.85
4-S	003768F	Access Panel Group	No	N/A	N/A	N/A
4-H	004671F	Tube Bundle - Model 185A	Yes	1 Day(s)	$721.48
4-H	004672F	Tube Bundle - Model 265A	Yes	1 Day(s)	$780.72
4-H	004673F	Tube Bundle - Model 335A	Yes	1 Day(s)	$779.84
4-H	004674F	Tube Bundle - Model 405A	Yes	1 Day(s)	$896.55
4-J	650761	Toggle Switch (MV Units)	Yes	1 Day(s)	$13.20
4-V	951019F	Outdoor Stack - Model 185A	No	N/A	N/A	N/A
4-V	951020F	Outdoor Stack - Model 265A	No	N/A	N/A	N/A
4-V	951021F	Outdoor Stack - Model 335A	No	N/A	N/A	N/A
4-B	350079F	Burner Orifice Natural Gas #50 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-B	350083F	Burner Orifice Propane Gas #57 (Sea Level) (a)	Yes	1 Day(s)	$3.54
4-M	006886F	Knobstop	Yes	1 Day(s)	N/A	N/A
4-V	951022F	Outdoor Stack - Model 405A	No	N/A	N/A	N/A
5-M	900741	Dial Plate MV Pilot BR	Yes	1 Day(s)	$21.13
5-S	003771F	Control Panel MV Pilot - Model 335A	No	N/A	N/A	N/A
5-S	003772F	Control Panel MV Pilot - Model 405A	No	N/A	N/A	N/A
5-H	002458F	Heat Exchange Tube - Model 335A	Yes	1 Day(s)	$139.70
5-S	003769F	Control Panel MV Pilot - Model 185A	No	N/A	N/A	N/A
