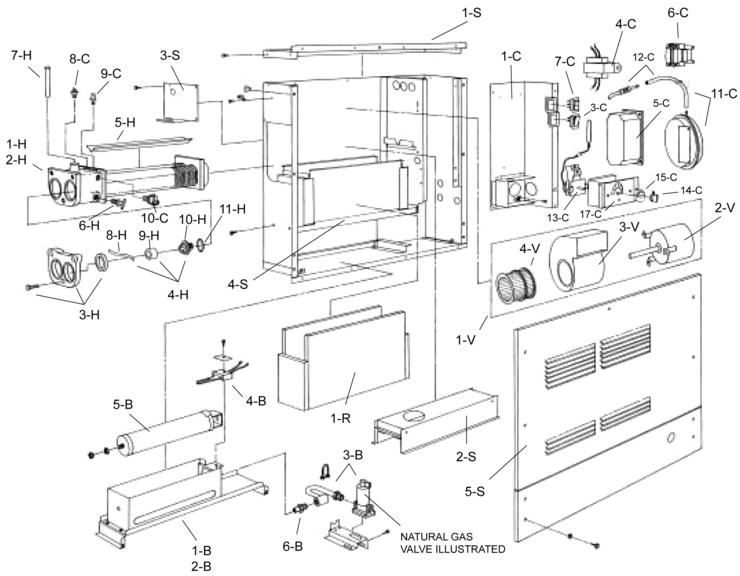

Here is the schematic view you requested:

Category: Heaters

Manufacturer name: RayPak

Model Name: Models 33 R33



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1-R	002548F	Refractory Kit	No	N/A	N/A	N/A
1-S	002549F	Jacket Top	No	N/A	N/A	N/A
1-V	002554F	Motor/Blower Assy.	Yes	1 Day(s)	N/A	N/A
1-C	002540F	Controls/Panel Assy.	No	N/A	N/A	N/A
2-C	002541F	Wires/Harness Assy. (Not Shown)	No	N/A	N/A	N/A
2-S	002550F	Flue Collector	Yes	1 Day(s)	N/A	N/A
2-H	002544F	Header/Tubes Kit (Header and Tubes Only)	No	N/A	N/A	N/A
2-V	002555F	Blower Motor	No	N/A	N/A	N/A
3-C	650614	Door Interlock Switch	Yes	1 Day(s)	N/A	N/A
3-V	002556F	Blower Housing	No	N/A	N/A	N/A
3-H	002432F	In/Out Header Flange Kit	Yes	1 Day(s)	N/A	N/A
3-S	002551F	Access Panel	Yes	1 Day(s)	N/A	N/A
4-S	002552F	Refractory Support	No	N/A	N/A	N/A
4-H	002546F	U.G. Assy.	Yes	1 Day(s)	N/A	N/A
4-V	002557F	Blower Wheel	Yes	1 Day(s)	N/A	N/A
4-B	002538F	Igniter	Yes	1 Day(s)	N/A	N/A
4-C	005345F	Transformer	No	N/A	N/A	N/A
5-S	002553F	Door Assy.	No	N/A	N/A	N/A
5-B	002539F	Burner	No	N/A	N/A	N/A
5-C	600916	Ignition Control	Yes	1 Day(s)	N/A	N/A
5-H	002547F	Baffle Kit	No	N/A	N/A	N/A
6-C	007377F	Relay	Yes	1 Day(s)	N/A	N/A
6-H	500719	Drain Valve	Yes	1 Day(s)	N/A	N/A
6-S	002558F	Seal Strips Kit (Not Shown)	No	N/A	N/A	N/A
6-B	350836	Burner Orifice Propane Gas #52 (Sea Level) (a)	Yes	1 Day(s)	N/A	N/A
6-B	350823	Burner Orifice Natural Gas #39 (Sea Level) (a)	Yes	1 Day(s)	N/A	N/A
7-H	007211F	Bulb Sensor Immersion Well	Yes	1 Day(s)	N/A	N/A
7-C	650613	Heater Switch	Yes	1 Day(s)	N/A	N/A
8-H	850247	U.G. Spring	Yes	1 Day(s)	N/A	N/A
8-C	600953B	Auto Hi-Limit	Yes	1 Day(s)	N/A	N/A
9-H	400734	U.G. Cap	Yes	1 Day(s)	N/A	N/A
9-C	600920F	Single Use Limit - Model 33 only	No	N/A	N/A	N/A
10-H	600855	Unitherm Governor	Yes	1 Day(s)	N/A	N/A
10-C	600952B	Manual Reset Limit	Yes	1 Day(s)	N/A	N/A
11-H	800276	U.G. Gasket	Yes	1 Day(s)	N/A	N/A
11-C	002542F	Air Pressure Switch Kit	Yes	1 Day(s)	N/A	N/A
12-C	002929F	Air Pressure Switch Tube Kit	Yes	1 Day(s)	N/A	N/A
13-C	003346F	Thermostat - Model 33 only	Yes	1 Day(s)	N/A	N/A
14-C	006885F	Knob - Model 33 only	Yes	1 Day(s)	N/A	N/A
15-C	006886F	Knobstop - Model 33 only	Yes	1 Day(s)	N/A	N/A
16-C	61397	Thermostat Mounting Bracket/ Wiring Box Cover Assembly	No	N/A	N/A	N/A
17-C	900606	Dial Plate - Model 33 only	Yes	1 Day(s)	N/A	N/A
