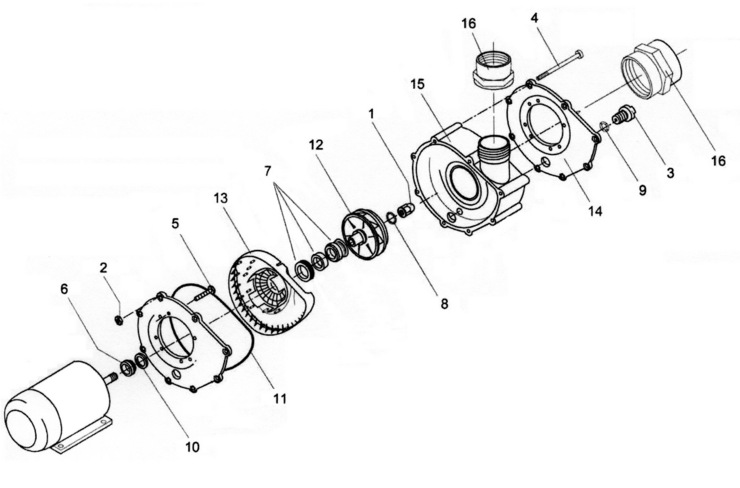

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Speck Pumps

Model Name: 21-80 G



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	2923800060	Impeller Upgrade - 6hp Impeller W/Nut & O-Ring (a)	Yes	1 Day(s)	$117.52
-	2923800020	Impeller Upgrade - 4hp Impeller W/Nut & O-Ring (a)	Yes	1 Day(s)	$149.77
-	2923800050	Impeller Upgrade - 3hp Impeller W/Nut & O-Ring (a)	Yes	1 Day(s)	$87.46
1	2923592200	Nut-Impeller-Plastic W/Brass Insert M12	Yes	1 Day(s)	$9.95
1	2923592300	Nut-Impeller M12 SS	Yes	1 Day(s)	$6.20
2	5879340600	Nut-Casing Bolt M6 SS	Yes	1 Day(s)	$0.61
3	2923591201	Plug-Casing Drain 1/4""	Yes	1 Day(s)	$0.71
4	2920191401	Bolt-Casing, Phillips M6x97mm SS	Yes	1 Day(s)	$4.98
5	2923190120	Bolt-Motor, Hex M8x16mm	Yes	1 Day(s)	$1.02
6	2923151601	V-Ring 18mm	Yes	1 Day(s)	$5.89
7	2920343310	Mechanical Seal 20mm (Complete)	Yes	1 Day(s)	$34.33
8	2923541229	O-Ring - Shaft 16.9x2.75mm Viton	Yes	1 Day(s)	$3.05
8	2923541220	O-Ring-Shaft 12x2.5mm	Yes	1 Day(s)	$0.51
9	2923541220	O-Ring - Casing Drain Plug 12x2.5mm	Yes	1 Day(s)	$0.51
10	2923141240	Shaft Washer 14/22 IT 400	Yes	1 Day(s)	$0.71
11	2923141000	Gasket - Seal Housing	Yes	1 Day(s)	$27.63
12	2923223014	Impeller 4HP, SF1.25 113-122/20mm	No	N/A	$149.77
12	2923223035	Impeller 6HP, SF 1.0 120-122/19mm	Yes	1 Day(s)	$109.60
12	2923223013	Impeller 3HP, SF 1.5 106-122/20mm	Yes	1 Day(s)	$79.63
13	2923116100	Seal Housing	Yes	1 Day(s)	$60.33
14	2923116010	Aluminum Flange	Yes	1 Day(s)	$104.93
15	2923110071	Casing (Specify For G)	Yes	1 Day(s)	$199.90
16	2500223433	Adapter - Casing 2-3/4""x3"" NPT/4""	Yes	1 Day(s)	$53.12
