SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

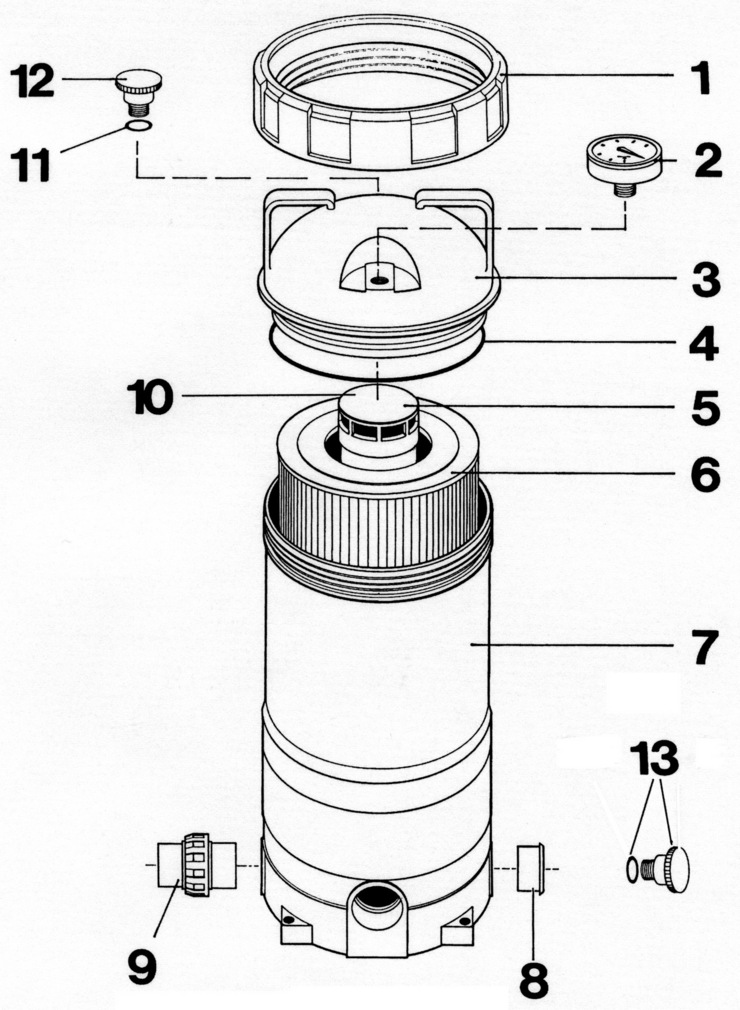

Here is the schematic view you requested:

Category: Cartridge Filter Parts

Manufacturer name: Speck Pumps

Model Name: AC75,AC100 & AC150



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
Not S	0004176080	Adapter-Hose 1.5 SP x 1.5/1.25	No	N/A	$3.77
Not S	0001000010	Clamp 1-1/16 x 2"SS	No	N/A	$3.47
Not S	0001000009	Hose With Cuffs 1-1/2 x 6'	No	N/A	$20.20
Not S	0001419000	Plumbing Assembly-E90-III/AC 150	No	N/A	$76.82
Not S	0001419000	Plumbing Assembly-E90-III/AC 150	No	N/A	$76.82
Not S	0001419000	Plumbing Assembly-E90-III/AC 150	No	N/A	$76.82
Not S	0001419100	Plumbing Assembly-E91-II/AC 100	No	N/A	$60.29
Not S	0001419100	Plumbing Assembly-E91-II/AC 100	No	N/A	$60.29
1	AC8482332	Lock Ring-Lid	Yes	1 Day(s)	$48.36
2	AC8482234	Pressure Gauge	Yes	1 Day(s)	$16.73
3	AC8402330	Filter Lid	Yes	1 Day(s)	$47.03
4	AC8410336	O-Ring-Lid	Yes	1 Day(s)	$26.01
5	AC8482343	Stand Pipe Assembly-AC 150	Yes	1 Day(s)	$39.28
5	AC8492341	Stand Pipe Assembly-AC 75	Yes	1 Day(s)	$36.22
5	AC8482342	Stand Pipe Assembly-AC 100	Yes	1 Day(s)	$36.93
6	AC8492312	Cartridge-Replacement, AC 100	Yes	1 Day(s)	$151.70
6	AC8492311	Cartridge-Replacement, AC 75	Yes	1 Day(s)	$118.44
6	AC8492313	Cartridge-Replacement, AC 150	Yes	1 Day(s)	$203.94
7	AC8482323	Filter Body-AC 150	Yes	1 Day(s)	$371.15
7	AC8482322	Filter Body-AC 100	Yes	1 Day(s)	$300.75
7	AC8482321	Filter Body-AC 75	Yes	1 Day(s)	$265.76
8	AC8482237	Cap-Drain	Yes	1 Day(s)	$6.63
9	AC8482104	Union 50mm (1-1/2")	Yes	1 Day(s)	$19.38
11	AC4410334	O-Ring-Air Bleed	Yes	1 Day(s)	$2.14
12	AC8482333	Screw-Air Bleed	Yes	1 Day(s)	$4.90
13	AC8482239	Plug-Drain With O-Ring	Yes	1 Day(s)	$6.63
