SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

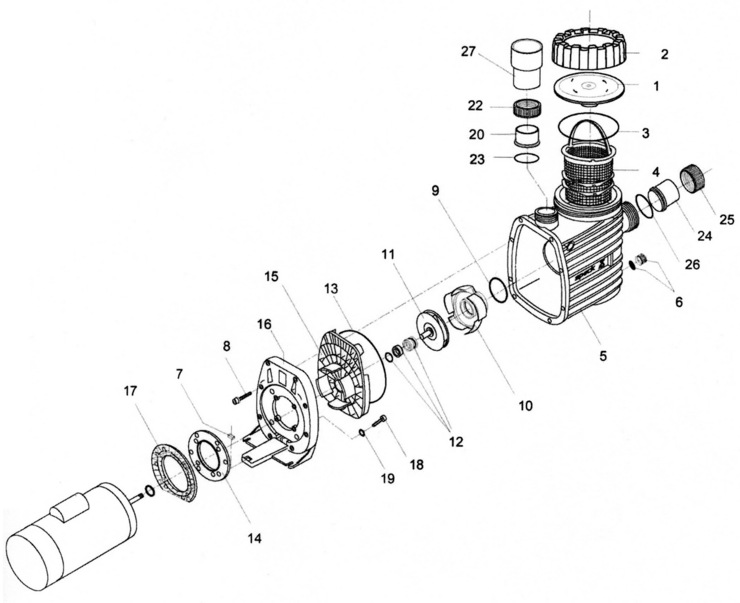

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Speck Pumps
Model Name: S90

Speck Pumps S90 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 2921116010 Lid-Clear Yes 1 Day(s) $13.10

2

 2921113020 Lock Ring for Lid No N/A N/A N/A

3

 2921141210 O-Ring-Lid 137 x 5mm Yes 1 Day(s) $3.05

4

 2920314300 Basket Complete Yes 1 Day(s) $6.40

5

 2921110108 Casing Yes 1 Day(s) $108.68

6

 2921658200 Cap-Drain 3/8"" w/Gasket-Casing Yes 1 Day(s) $0.61

7

 2920889410 Lego Spacer Yes 1 Day(s) $0.41

8

 2991000088 Bolt-Casing Hex/slot M7 x 48mm SS Yes 1 Day(s) $2.64

9

 2920141210 O-Ring-Diffuser 90 x 5mm Yes 1 Day(s) $2.03

10

 2921117412 Diffuser Yes 1 Day(s) $29.86

11

 2920223089 Impeller (l) .75HP, S.F. 1.0 104 / 3.5mm Yes 1 Day(s) $46.72

11

 2920223090 Impeller (ll) 1HP, S.F. 1.0 101/ 9mm Yes 1 Day(s) $46.72

11

 2920223091 Impeller (lll) 1.5HP, S.F.1.0 106 /9mm Yes 1 Day(s) $46.72

11

 2920223092 Impeller (IV) 2HP, S.F. 1.0 114 / 9mm Yes 1 Day(s) $46.72

12

 2920343310 Mechanical Seal 20mm Yes 1 Day(s) $34.33

13

 2921141222 O-Ring-Casing 190 x 6mm Yes 1 Day(s) $6.40

14

 2920216110 Intermediate Flange Yes 1 Day(s) $5.38

15

 2921116110 Seal Housing Yes 1 Day(s) $20.01

16

 2921111300 Flange Yes 1 Day(s) $25.29

17

 2920110200 Motor Flange - 56 Frame Yes 1 Day(s) $9.04

18

 2991400029 Bolt - Flange, 3/8-16 x 2.25"" Yes 1 Day(s) $1.63

19

 2991400035 Washer-Flange Bolt 3/8""SS Yes 1 Day(s) $0.41

20

 2500320148 Union End 1.5"" Slip (48.5mm) Yes 1 Day(s) $3.15

22

 2500310001 Nut-Sawtooth Union (1.5"") Yes 1 Day(s) $2.64

23

 2920241220 O-Ring-Union (1.5""SLIP) 50 x 3mm Yes 1 Day(s) $1.63

24

 2921772201 Union End 2"" SLIP Yes 1 Day(s) $2.44

25

 2921775000 Nut-Sawtooth Union (2"") Yes 1 Day(s) $3.15

26

 2854000863 O-Ring - Union(2"") 68mm x 3mm No N/A N/A N/A

27

 5663727505 Bushing-Union 2"" x 1-1/2"" SLIP No N/A N/A N/A
