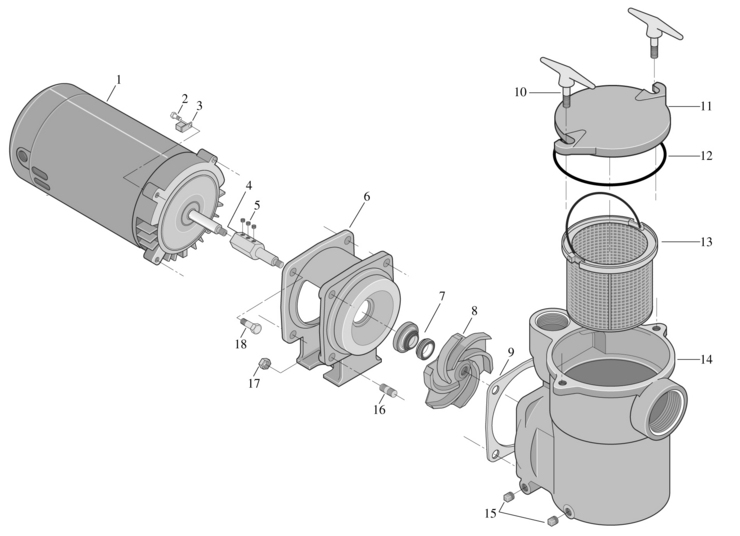

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Sta-Rite

Model Name: CF6 Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	U4351D	Impeller Washer - 3 HP 230/460V	Yes	1 Day(s)	$0.91
-	C3020	Impeller Screw - 3 HP 230/460V	No	N/A	N/A	N/A
1	AE600FHL	1 1/2 HP 230V Motor	Yes	1 Day(s)	$489.35
1	C218194	3 HP 23/460V Motor	Yes	1 Day(s)	$640.00
1	AE600GHL	2 HP 230V Motor	Yes	1 Day(s)	$666.02
1	C218195	3 HP 230V Motor	No	N/A	N/A	N/A
2	U30692SS	Screw, 10-32x1/2""	Yes	1 Day(s)	$1.39
3	U17568	Bonding Lug	Yes	1 Day(s)	$6.86
4	C11017	Stub Shaft Assembly w/Set Screws	Yes	1 Day(s)	$49.17
5	U30754SS	Set Screw, 1/4-20x5/16""	Yes	1 Day(s)	$1.81
6	C257D	Adapter	Yes	1 Day(s)	$261.19
7	U109136SS	Shaft Seal	Yes	1 Day(s)	$19.98
8	C5203D	Impeller - 3 HP 230V & 230/460V	Yes	1 Day(s)	$147.68
8	C5182D	Impeller - 2 HP 230V	Yes	1 Day(s)	$122.76
8	C5181D	Impeller - 1 1/2 HP 230V	Yes	1 Day(s)	$131.42
9	C2072	Gasket	Yes	1 Day(s)	$2.75
10	C15418D	Trap Handle	Yes	1 Day(s)	$21.96
11	C378D	Trap Cover	Yes	1 Day(s)	$140.83
12	U946	Cord Ring	Yes	1 Day(s)	$8.03
13	C10811P	Strainer Basket	Yes	1 Day(s)	$20.86
14	C1201DB	Volute & Trap Body	Yes	1 Day(s)	$744.85
15	U7857DT	Pipe Plug, 1/4"" NPT	Yes	1 Day(s)	$2.53
16	U3022SS	Stud, 3/8-16x1 1/4""	Yes	1 Day(s)	$4.78
17	U3638SSW	Nut, 3/8-16	No	N/A	N/A	N/A
18	U3072SS	Capscrew, 3/8-16x5/8""	Yes	1 Day(s)	$2.77
