SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

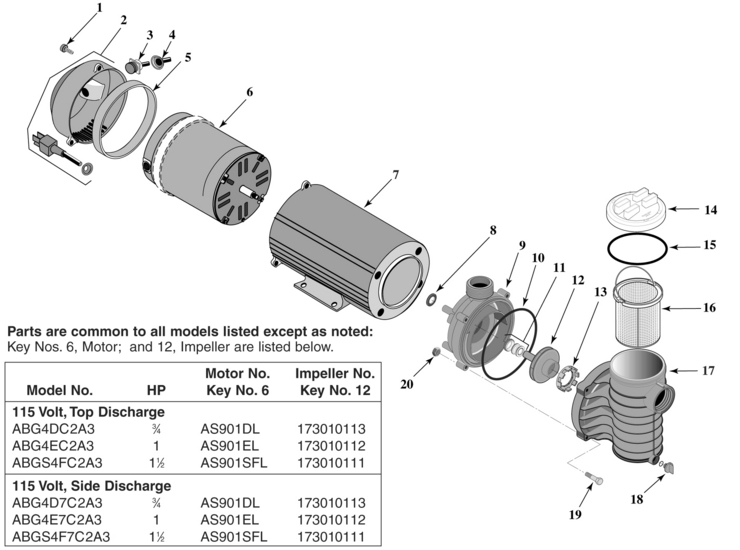

Here is the schematic view you requested:

Category: Pumps
Manufacturer name: Sta-Rite
Model Name: AboveGround - ABG Series w/Canopy & 25' Cord

Sta-Rite AboveGround-ABG-Series-wCanopy-25-Cord replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 172900001 Hardware Kit (2 Bolts, 2 Washers) Yes 1 Day(s) $5.15

1

 373370085 End Cap Screw No N/A N/A N/A

2

 171900026 End Cap and Cord Assembly Yes 1 Day(s) $90.02

3

 169200511 Toggle Switch Yes 1 Day(s) $14.08

4

 328000107 Toggle Switch Boot Yes 1 Day(s) $9.86

5

 172900004 Baffle Ring Yes 1 Day(s) $3.93

7

 171900021 Motor Cover No N/A N/A N/A

8

 C692 Slinger No N/A N/A N/A

9

 175000001 Seal Plate Yes 1 Day(s) $30.09

10

 355051438 Seal Plate O-Ring Yes 1 Day(s) $5.15

11

 374000027S Shaft Seal (a) Yes 1 Day(s) $18.26

13

 175000004 Floating Wear Ring Yes 1 Day(s) $5.15

14

 175000003 Trap Lid Yes 1 Day(s) $17.20

15

 355051437 Trap Lid O-Ring Yes 1 Day(s) $2.10

16

 173500100 Trap Basket Yes 1 Day(s) $14.60

17

 175000102 Trap Body Assembly (c) No N/A N/A N/A

18

 U178920P Drain Plug with O-Ring Yes 1 Day(s) $2.11

19

 307870005 Hex Head Bolt, 1/4-20x1 3/4"" Yes 1 Day(s) $3.02

22

 354020071 Hex Nut Yes 1 Day(s) $0.23
