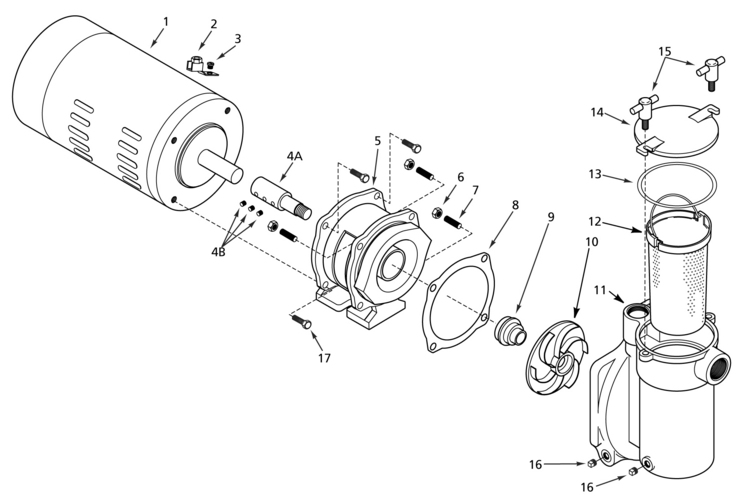

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Sta-Rite

Model Name: CFA Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	A600DLL	3/4 HP 115/230V Motor	Yes	1 Day(s)	$243.37
1	A600ELL	1 HP 115/230V Motor	Yes	1 Day(s)	$280.83
1	A600FLL	1 1/2 HP 115/230V Motor	Yes	1 Day(s)	$267.63
1	AE600GLL	2 HP 230V Motor	Yes	1 Day(s)	$433.71
1	AE600G5LL	2 1/2 HP 230V Motor	Yes	1 Day(s)	$588.18
2	U17568	Bonding Lug	Yes	1 Day(s)	$6.86
3	U30692SS	Screw, #10-32X1/2""	Yes	1 Day(s)	$1.39
4A	C11017	Stub Shaft Assembly w/Set Screws	Yes	1 Day(s)	$49.17
4B	U30754SS	Set Screw 1/4-20x5/16""	Yes	1 Day(s)	$1.81
5	C257D	Adapter	Yes	1 Day(s)	$261.19
6	U3638SSW	Nut, 3/8""-16	No	N/A	N/A	N/A
7	U3022SS	Stud, 3/8x1 1/4""	Yes	1 Day(s)	$4.78
8	C2072	Gasketf	Yes	1 Day(s)	$2.75
9	U109136SS	Shaft Seal Package (Included in Seal and Gasket Kit)	Yes	1 Day(s)	$19.98
10	C5166D	Impeller - 1 HP	Yes	1 Day(s)	$123.67
10	C5182D	Impeller - 2 1/2 HP	Yes	1 Day(s)	$122.76
10	C5181D	Impeller - 2 HP	Yes	1 Day(s)	$131.42
10	C5183D	Impeller - 1 1/2 HP	Yes	1 Day(s)	$131.00
10	C5164D	Impeller - 3/4 HP	Yes	1 Day(s)	$118.43
11	C1185DB	Volute and Trap Body	No	N/A	N/A	N/A
12	C10833P	Trap Basket	Yes	1 Day(s)	$8.05
13	U9161	Cord Ring	Yes	1 Day(s)	$6.64
14	C3140DC	Trap Cover	Yes	1 Day(s)	$74.04
15	C15418D	Trap Handle	Yes	1 Day(s)	$21.96
16	U7857DT	Pipe Plug, 1/4"" NPT	Yes	1 Day(s)	$2.53
17	U3072SS	Capscrew 3/8-16x3/4""	Yes	1 Day(s)	$2.77
