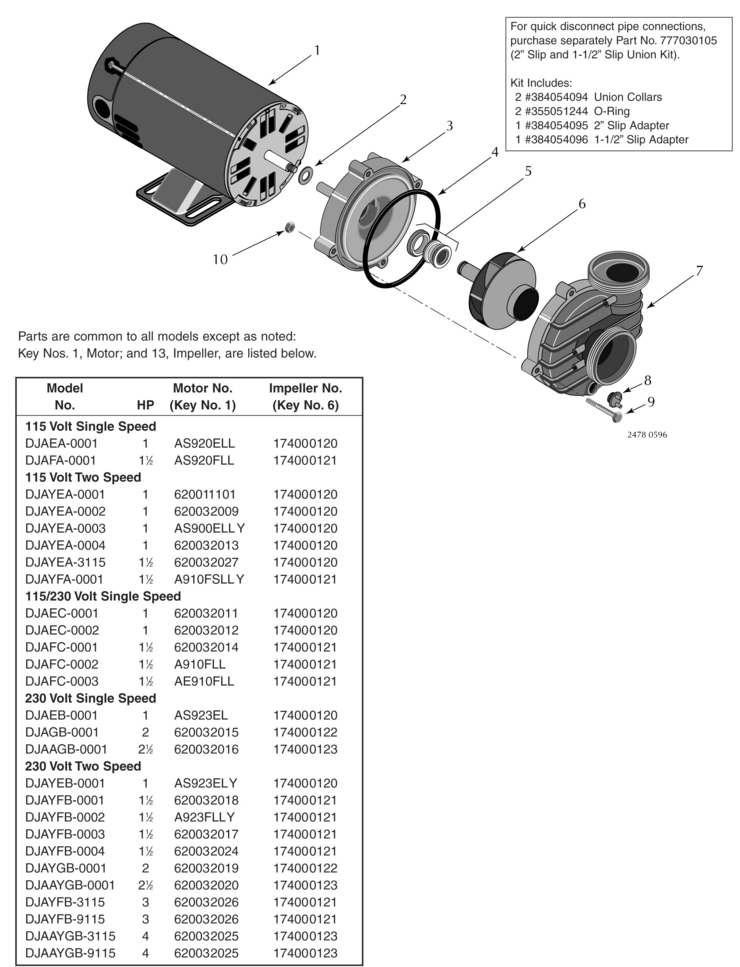

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Sta-Rite

Model Name: Dura-Jet Pump - JS Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	U1171117	Cord Assembly	Yes	1 Day(s)	$22.59
1	AS900CLL	1/2 HP Motor 115V/60H/1 Ph.	Yes	1 Day(s)	$199.82
1	AS920ELL	1 HP Motor 115V/60H/1 Ph.	Yes	1 Day(s)	$207.35
1	AS920DLL	3/4 HP Motor 115V/60H/1 Ph.	Yes	1 Day(s)	$198.70
2	C6923	Slinger	Yes	1 Day(s)	$1.86
3	C1260P	Seal Plate	Yes	1 Day(s)	$42.75
4	355051438	O-Ring -Replaces U9-357 (effective 11/01).	Yes	1 Day(s)	$5.15
5	374000027S	Seal - Replaces U109-358SS (effective 1/01)	Yes	1 Day(s)	$18.26
6	C105228PB	Impeller	Yes	1 Day(s)	$36.15
7	C101262P	Front Plate	Yes	1 Day(s)	$55.11
9	U178920P	Drain Plug w/ O-Ring	Yes	1 Day(s)	$2.11
10	307870005	Capscrew, 1/4-20x1 3/4""	Yes	1 Day(s)	$3.02
11	171500012	Knob	Yes	1 Day(s)	$32.96
12	171500011	Lock Bar	Yes	1 Day(s)	$35.64
13	171500005	Lid	Yes	1 Day(s)	$30.65
14	171500007	Gasket	Yes	1 Day(s)	$5.17
15	162000009	Basket	Yes	1 Day(s)	$22.57
16	171500004S	Strainer Body ( Includes union half)	No	N/A	N/A	N/A
17	169200029T	Plug, 1/4"" NPT	No	N/A	N/A	N/A
