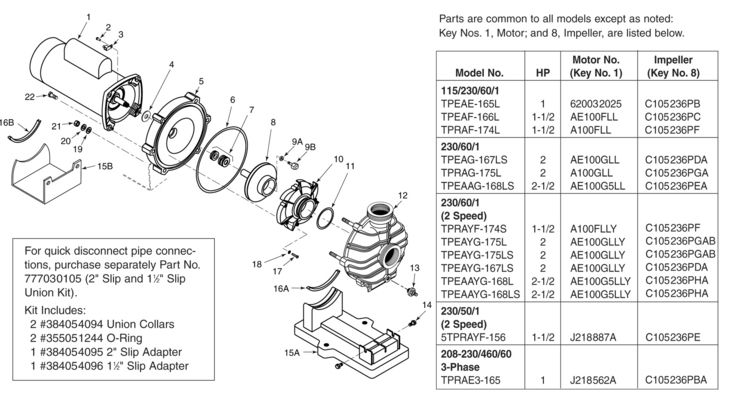

Here is the schematic view you requested:

Category: Pumps

Manufacturer name: Sta-Rite

Model Name: Dyna-jet - TPE Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
2	U30692SS	Screw #10-32x1/2""	Yes	1 Day(s)	$1.39
3	U17568	Bonding Lug	Yes	1 Day(s)	$6.86
4	173510009	Slinger - Replaces C69-24 (effective 9/00)	Yes	1 Day(s)	$1.08
5	C3184P	Seal Plate	Yes	1 Day(s)	$74.04
6	U9373	Seal Plate Cord Ring	Yes	1 Day(s)	$5.97
7	173510101S	Shaft Seal	Yes	1 Day(s)	$16.46
9A	334551047	Impeller Lock Screw Gasket (Models TPEAG-167L, TPEAAG-168L, and TPRAG-167L only)	Yes	1 Day(s)	$3.95
9B	373376080	Impeller Lock Screw (Models TPEAG-167L, TPEAAG-168L, and TPRAG-167L only)	Yes	1 Day(s)	$10.99
10	C1270P	Diffuser (Model TPEAE-165L and TPRAE3-165 use Part No. C1-270PC)	Yes	1 Day(s)	$18.55
11	U9374	Diffuser O-Ring	Yes	1 Day(s)	$3.67
12	173030001	Pump Body (Only)	No	N/A	N/A	N/A
13	U178920P	Drain Plug	Yes	1 Day(s)	$2.11
14	U30919SS	Hi-Lo Screw 5/16-14x5/8""	Yes	1 Day(s)	$2.75
15B	173030113	Base - Steel (Models with LS suffix only)	Yes	1 Day(s)	$26.73
15A	C477P	Base - Corrosion Resistant	Yes	1 Day(s)	$31.31
16B	C355	Motor Pad - for Steel Base (Models with LS suffix only)	Yes	1 Day(s)	$2.11
16A	C3545	Motor Pad - for Corrosion Resistant Base	Yes	1 Day(s)	$2.84
17	U30542SS	Screw #8-32x7/8"" Rd. Hd.	Yes	1 Day(s)	$1.43
18	U4321SS	Lock Washer #8 Ext. Tooth	Yes	1 Day(s)	$1.17
19	U4362SS	Flat Washer 3/8""	Yes	1 Day(s)	$1.17
20	U4312SS	Lock Washer 3/8""	Yes	1 Day(s)	$1.86
21	U3638SSW	Nut 3/8-16 Hex	No	N/A	N/A	N/A
22	U3074SS	Cap Screws 3/8-16x1"" Hex.	Yes	1 Day(s)	$2.77
