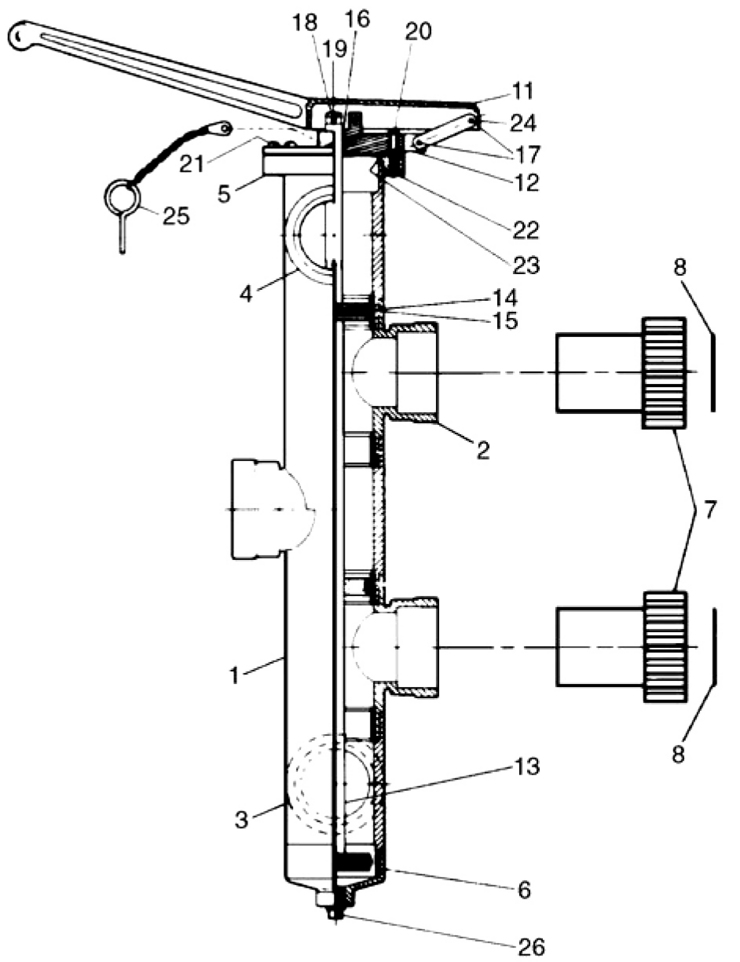

Here is the schematic view you requested:

Manufacturer name: Sta-Rite

Model Name: HRP36 Slide Valve - 2 Position



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	31B0080	Housing Assembly (Incl. Key Nos. 2-4)	Yes	1 Day(s)	$125.17
2	31B0008	Body Module	No	N/A	N/A	N/A
3	31B0022	Body Module, Bottom w/ Cap	Yes	1 Day(s)	$40.03
4	31B0020	Body Module, Top w/Adapter Ring	Yes	1 Day(s)	$40.27
5	31B0003	Adapter Ring	Yes	1 Day(s)	$15.28
6	31B0004	Bottom Cap	Yes	1 Day(s)	$15.28
11	31B0009	Valve Handle	Yes	1 Day(s)	$102.13
12	31B0002	Index Plate	Yes	1 Day(s)	$143.12
13	31B0005	Piston and Shaft Ass'y L/O Rings	Yes	1 Day(s)	$142.20
14	31B0024	O-Ring Replacement Kit (Incl. Key Nos. 15-19)	Yes	1 Day(s)	$22.56
15	00B7014	Valve Piston O-Ring	Yes	1 Day(s)	$7.76
16	31B0035	Index Plate O-Ring	Yes	1 Day(s)	$2.18
17	00B8003	Rivet, 1/8""x11/16""	Yes	1 Day(s)	$2.18
18	00B8004	Rivet, 1/8""x1""	Yes	1 Day(s)	$2.18
19	00B8005	Push Nut 1/8""	Yes	1 Day(s)	$2.18
20	00B1006	Screw, 10-32x1 1/4""	Yes	1 Day(s)	$2.18
21	00B1005	Screw, 10-32x7/8""	Yes	1 Day(s)	$2.18
22	00B0003	Nut, 10-32	Yes	1 Day(s)	$2.18
23	31B0015	Index Plate Gasket	Yes	1 Day(s)	$3.88
24	31B0010	Linkage Bar	Yes	1 Day(s)	$9.46
25	31B0012	Lock Pin and Chain Assembly	Yes	1 Day(s)	$12.61
26	88B3071	Plug	Yes	1 Day(s)	$7.03
